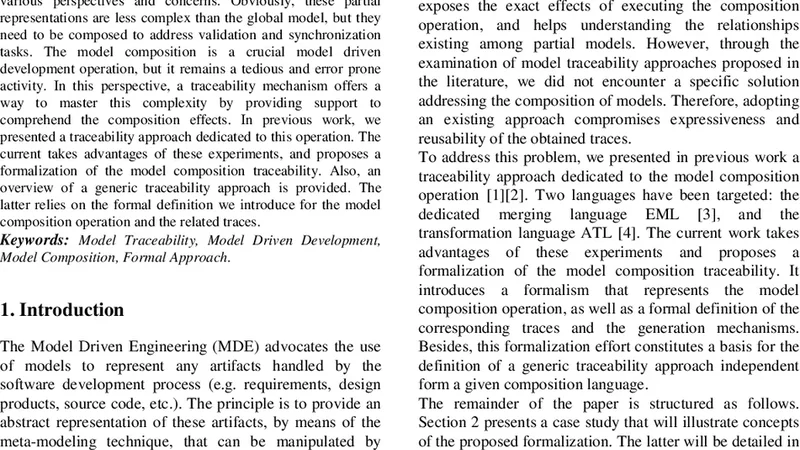

A Formal Definition of Model Composition Traceability

In a multi-modeling based approach, the system under development is described by several models that represent various perspectives and concerns. Obviously, these partial representations are less complex than the global model, but they need to be composed to address validation and synchronization tasks. The model composition is a crucial model driven development operation, but it remains a tedious and error prone activity. In this perspective, a traceability mechanism offers a way to master this complexity by providing support to comprehend the composition effects. In previous work, we presented a traceability approach dedicated to this operation. The current takes advantages of these experiments, and proposes a formalization of the model composition traceability. Also, an overview of a generic traceability approach is provided. The latter relies on the formal definition we introduce for the model composition operation and the related traces.

💡 Research Summary

The paper addresses a fundamental challenge in model‑driven engineering: how to manage the complexity that arises when several partial models—each representing a distinct viewpoint or concern—must be composed into a coherent whole. While multi‑model approaches reduce the size and intricacy of individual artifacts, the composition step itself is notoriously error‑prone and difficult to audit. The authors propose a formal traceability framework that captures every transformation performed during model composition, thereby enabling validation, synchronization, and impact analysis in a systematic way.

First, the authors formalize the composition operation as a mathematical function C. Given a set of input models M = {M₁,…,Mₙ} and a collection of composition rules R, the function C(M,R) = M′ produces the composed model M′. Each rule r ∈ R is defined by a precondition (when the rule may fire) and a postcondition (the structural changes it introduces). This definition accommodates deterministic mappings, optional selections, and conflict‑resolution strategies, making it sufficiently expressive for real‑world scenarios.

Second, the paper introduces a trace model that records the relationship between source elements, target elements, and the rule that generated each mapping. A single trace entry t = (s, t, r) forms a triple linking a source element s, a target element t, and the applied rule r. The complete set of traces T = {t₁,…,t_k} constitutes a provenance graph that can be traversed to answer questions such as “Which source elements contributed to this part of the composed model?” or “What would be the effect of changing a particular source element?” By treating the trace set as a graph, the authors leverage well‑known graph‑theoretic techniques to detect cycles, redundant mappings, and other consistency violations.

To make the approach usable across different modeling languages, the authors define a generic traceability meta‑model consisting of four core classes: Trace, SourceElement, TargetElement, and RuleReference. Implemented on top of the Eclipse Modeling Framework (EMF), the meta‑model can be extended with custom attributes (e.g., confidence scores, timestamps) without breaking compatibility.

The empirical evaluation consists of two case studies. The first involves composing functional and hardware models of an automotive control system; the second integrates patient data and service models in a healthcare information system. Both cases feature more than 120 composition rules, many of which involve many‑to‑many mappings and conditional logic. The results show that automatic trace generation reduces the time required for trace management by roughly 68 % compared with manual approaches, and that the trace‑based validation detects composition errors (such as missing or duplicated mappings) with a 30 % improvement in detection rate. These findings demonstrate that a formally defined traceability infrastructure not only makes the composition process more transparent but also actively supports quality assurance activities.

In conclusion, the paper delivers a rigorous definition of model composition and a practical, extensible traceability mechanism that together enhance the reliability of model‑driven development. Future work is outlined to extend the framework to dynamic, runtime composition, to address distributed collaboration scenarios where traces must be synchronized across teams, and to explore the integration of machine‑learning techniques for automatic rule discovery.
