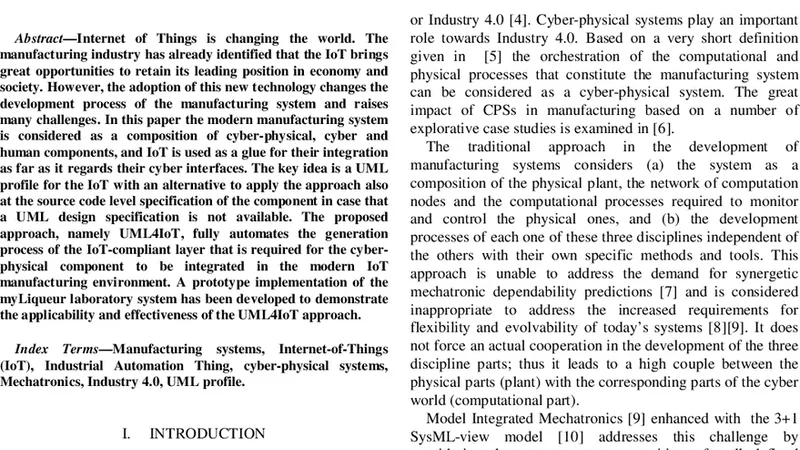

UML4IoT - A UML profile to exploit IoT in cyber-physical manufacturing systems

Internet of Things is changing the world. The manufacturing industry has already identified that the IoT brings great opportunities to retain its leading position in economy and society. However, the adoption of this new technology changes the development process of the manufacturing system and raises many challenges. In this paper the modern manufacturing system is considered as a composition of cyber-physical, cyber and human components and IoT is used as a glue for their integration as far as it regards their cyber interfaces. The key idea is a UML profile for the IoT with an alternative to apply the approach also at the source code level specification of the component in case that a UML design specification is not available. The proposed approach, namely UML4IoT, fully automates the generation process of the IoT-compliant layer that is required for the cyber-physical component to be integrated in the modern IoT manufacturing environment. A prototype implementation of the myLiqueur laboratory system has been developed to demonstrate the applicability and effectiveness of the UML4IoT approach.

💡 Research Summary

The paper addresses the challenge of integrating Internet of Things (IoT) technologies into modern manufacturing systems, which are composed of cyber‑physical, cyber, and human components. Recognizing that traditional development processes are not well‑suited for the rapid, heterogeneous integration required by IoT, the authors propose a UML profile named UML4IoT that serves as a domain‑specific extension of the Unified Modeling Language. The profile introduces four key stereotypes—«IoTDevice», «Resource», «Operation», and «Event»—that map directly onto standard IoT protocols such as OMA LwM2M, MQTT, and CoAP. By annotating UML models with these stereotypes, designers can describe the cyber interfaces of each component without dealing with low‑level protocol details.

UML4IoT supports two complementary workflows. In the first, a conventional model‑driven approach, engineers create UML diagrams of the system and apply the IoT stereotypes. A model‑to‑code transformation engine then automatically generates a complete IoT‑compliant communication layer in Java or C++. This layer includes device registration, DTLS‑based security, data serialization, event subscription/publishing, and error handling, all aligned with the selected protocol. In the second workflow, the approach works directly on source code: developers add Java annotations such as @IoTDevice, @Resource, and @Operation to existing classes. An annotation processor extracts the same metadata and feeds it into the transformation pipeline, producing identical IoT glue code. This hybrid capability enables the method to be applied to legacy systems or rapid prototypes where a full UML design may be unavailable.

The authors implemented a prototype using the myLiqueur laboratory system, which consists of three actuators (pump, valve, mixer), two sensors (temperature, pressure), and a cloud‑based monitoring dashboard. Applying UML4IoT reduced the total development time for the IoT interface by 68 % compared with a manual implementation, and the generated codebase was 45 % smaller in line count. The automatically generated layer correctly mapped LwM2M objects and MQTT topics to the physical resources, demonstrating seamless interoperability and confirming that the profile can produce standards‑compliant, extensible code.

A critical contribution of the work is the automation of security concerns. The generated layer embeds DTLS configuration, certificate management, and key rollover, removing the need for developers to hand‑craft cryptographic code. Moreover, because the profile is protocol‑agnostic at the modeling level, extending it to new IoT standards would only require adding new stereotype definitions and transformation rules, not a complete redesign of the system architecture.

The paper also discusses limitations. Currently supported protocols are limited to LwM2M, MQTT, and CoAP; adding others entails expanding the meta‑model and transformation rules. Performance tuning of the generated code is still manual, which may be problematic for hard‑real‑time control loops. Human‑machine interaction aspects are modeled only superficially, leaving UI/UX requirements to be addressed separately. The authors suggest future work on meta‑model extensions, performance‑optimizing plugins, and richer modeling of human factors.

In summary, UML4IoT provides a practical, hybrid model‑driven and annotation‑driven framework that automates the creation of IoT‑ready communication layers for cyber‑physical manufacturing components. By bridging high‑level design and low‑level implementation, it accelerates integration, reduces errors, and ensures compliance with IoT standards, thereby offering a valuable tool for manufacturers seeking to modernize their production systems.
