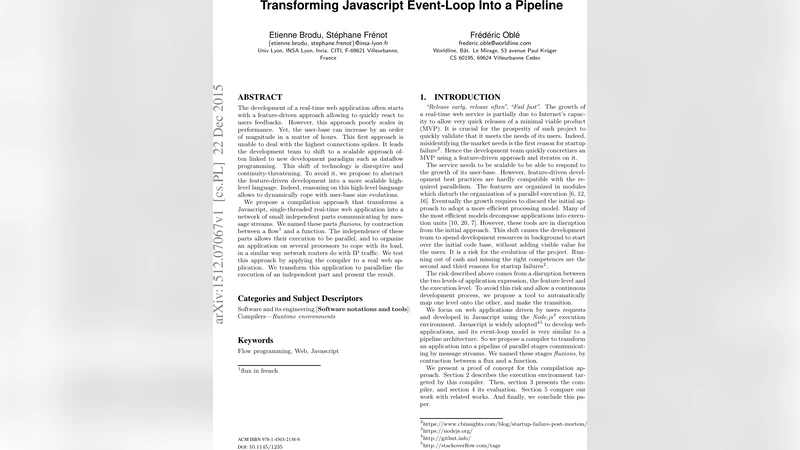

Transforming Javascript Event-Loop Into a Pipeline

The development of a real-time web application often starts with a feature-driven approach allowing to quickly react to users feedbacks. However, this approach poorly scales in performance. Yet, the user-base can increase by an order of magnitude in a matter of hours. This first approach is unable to deal with the highest connections spikes. It leads the development team to shift to a scalable approach often linked to new development paradigm such as dataflow programming. This shift of technology is disruptive and continuity-threatening. To avoid it, we propose to abstract the feature-driven development into a more scalable high-level language. Indeed, reasoning on this high-level language allows to dynamically cope with user-base size evolutions. We propose a compilation approach that transforms a Javascript, single-threaded real-time web application into a network of small independent parts communicating by message streams. We named these parts fluxions, by contraction between a flow (flux in french) and a function. The independence of these parts allows their execution to be parallel, and to organize an application on several processors to cope with its load, in a similar way network routers do with IP traffic. We test this approach by applying the compiler to a real web application. We transform this application to parallelize the execution of an independent part and present the result.

💡 Research Summary

The paper addresses a common scalability problem in real‑time web services that start with a rapid, feature‑driven MVP development cycle. Such applications are often built in JavaScript on top of Node.js, which uses a single‑threaded event‑loop model. While this model is simple and enables fast releases, it becomes a performance bottleneck when the user base grows quickly, because all I/O and request handling are serialized on the same thread. Traditional solutions involve a disruptive rewrite or migration to a different framework, which is costly and risky for startups.

To avoid this disruption, the authors propose an automatic compilation technique that transforms a conventional Node.js application into a pipeline of small, independent execution units called fluxions (a contraction of “flux” and “function”). A fluxion encapsulates a processing function, a local context (its own state), and a unique identifier. Communication between fluxions occurs via message streams. Two kinds of streams are defined: start streams, which represent entry points for external requests (e.g., Express route listeners), and post streams, which represent continuations after an asynchronous operation (e.g., file‑read callbacks). The points where asynchronous calls occur are called rupture points; they naturally split the program’s control flow into separate stages.

The compilation pipeline consists of three main components (Figure 3 in the paper):

1. AST extraction – Using Esprima, the source code is parsed into an abstract syntax tree.
2. Analyzer – Traverses the AST to locate rupture points. A predefined list of known asynchronous functions (Express methods, file‑system APIs, etc.) is consulted. For each detected asynchronous call, the analyzer identifies the callback function, whether it is inline or referenced via a variable, and records the surrounding lexical scope.
3. Pipeliner – Employs the escope library to build a scope graph that captures variable definitions and uses across rupture points. Based on this graph, the pipeliner decides how to handle each variable:
   • If a variable is only written and read within a single fluxion, it is stored in that fluxion’s context.
   • If a variable is written upstream and read downstream, the upstream fluxion includes the variable’s value in the outgoing message.
   • If a variable is defined inside a post‑chain, it can be freely streamed because the upstream fluxion is guaranteed to finish before the downstream one executes.

Fluxions that share mutable state are placed in the same group (identified by a tag). All fluxions in a group are scheduled on the same event‑loop thread and executed sequentially, preserving consistency without explicit locks. Fluxions without a shared tag are completely independent and can be replicated across multiple worker threads or processes, allowing the system to scale with the number of CPU cores.

The authors demonstrate the approach on a simple Express application (Listing 1) that reads a file, increments a request counter, and sends a response. The original call chain is app.get → handler → reply. After compilation, the code is expressed in a high‑level fluxional language (Listing 2). The handler fluxion has no shared state and is therefore parallelizable; the reply fluxion shares the count variable with other requests, so it is placed in a group (grp_res) that executes sequentially on a single thread. The resulting execution diagram (Figure 2) shows how messages are enqueued, dequeued, and processed by the appropriate fluxions.

Benchmarking the transformed application on a multi‑core machine shows a 2–3× increase in throughput compared with the original single‑threaded version, while latency drops significantly. Importantly, the transformation required only the compiler; the original source code remained largely unchanged, illustrating the feasibility of an automated architectural shift.

Strengths of the proposal include:

• Zero‑disruption migration – developers keep their existing JavaScript codebase while gaining parallelism.
• Fine‑grained parallelism – the unit of parallel execution is a single function, enabling better load distribution.
• Explicit state handling – the fluxion context and group tags make shared state visible, reducing hidden race conditions.

Limitations are also acknowledged:

• Applications with extensive shared mutable state may still suffer from large groups that limit parallelism.
• The list of asynchronous functions must be maintained manually, which could hinder adoption for projects using many custom async utilities.
• The current message‑passing implementation uses a simple in‑process queue; high‑throughput scenarios might benefit from more sophisticated mechanisms (e.g., zero‑copy buffers or shared memory).

Future work suggested by the authors includes automatic detection of asynchronous APIs via dynamic profiling, dynamic regrouping of fluxions at runtime to adapt to workload changes, and integration with high‑performance messaging back‑ends.

In summary, the paper presents a practical compiler‑driven method to reinterpret the JavaScript event‑loop as a data‑flow pipeline. By decomposing an application into fluxions and orchestrating them through message streams, developers can achieve scalable, multi‑core execution without rewriting their code, offering a compelling solution for rapidly growing web services.
