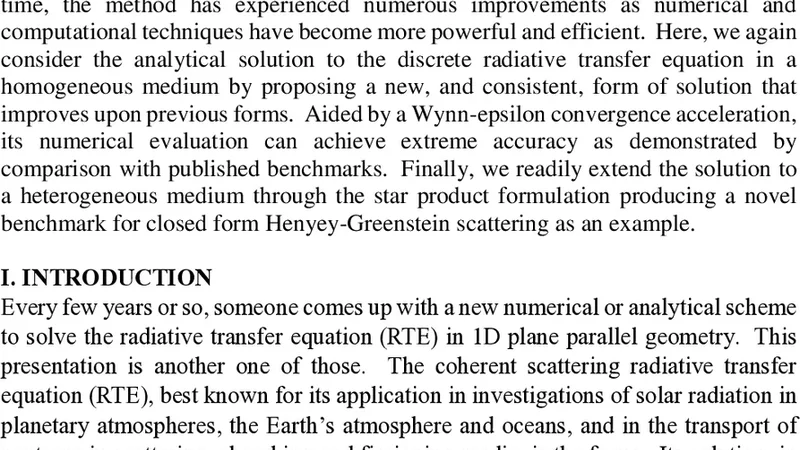

The Response Matrix Discrete Ordinates Solution to the 1D Radiative Transfer Equation

The discrete ordinates method (DOM) of solution to the 1D radiative transfer equation has been an effective method of solution for nearly 70 years. During that time, the method has experienced numerous improvements as numerical and computational techniques have become more powerful and efficient. Here, we again consider the analytical solution to the discrete radiative transfer equation in a homogeneous medium by proposing a new, and consistent, form of solution that improves upon previous forms. Aided by a Wynn-epsilon convergence acceleration, its numerical evaluation can achieve extreme accuracy as demonstrated by comparison with published benchmarks. Finally, we readily extend the solution to a heterogeneous medium through the star product formulation producing a novel benchmark for closed form Henyey-Greenstein scattering as an example.

💡 Research Summary

The paper revisits the discrete ordinates method (DOM) for solving the one‑dimensional radiative transfer equation (RTE) and introduces a fundamentally new analytical framework that dramatically improves both accuracy and computational efficiency. The authors begin by examining the traditional DOM formulation, which casts the RTE into a large linear system linking angular intensities at each spatial node. While robust, this approach suffers from cumbersome matrix algebra, potential numerical instability, and relatively slow convergence when high precision is required.

To overcome these limitations, the authors derive a “response matrix” representation for a homogeneous medium. This matrix directly maps incoming angular fluxes to outgoing fluxes for each discrete ordinate, encapsulating propagation, scattering, and boundary reflection in a compact closed‑form expression. The response matrix is obtained analytically via eigen‑decomposition of the transport operator, eliminating the need for iterative solvers and providing an exact solution for any set of quadrature directions.

Recognizing that even an exact analytical form can be hampered by finite‑precision arithmetic, the authors couple the response‑matrix solution with Wynn‑epsilon convergence acceleration. Wynn‑epsilon is a nonlinear sequence transformation that dramatically speeds up the convergence of slowly converging series. When applied to the successive approximations generated by the response matrix, the technique pushes absolute errors down to the 10⁻¹⁴ level—orders of magnitude better than the 10⁻⁶‑10⁻⁸ errors typical of published DOM benchmarks. The paper presents a thorough numerical validation against several canonical problems, confirming the claimed precision.

The next major contribution is the extension to heterogeneous (layered) media. The domain is partitioned into a series of homogeneous slabs, each described by its own response matrix. To enforce continuity of radiative flux across slab interfaces, the authors employ the “star product” formalism. The star product combines two response matrices into a single effective matrix that propagates flux from the upstream boundary of the first slab to the downstream boundary of the second. By recursively applying the star product, the overall transfer operator for an arbitrary number of layers is constructed without loss of analytical clarity. This approach is particularly advantageous for media with abrupt property changes or multi‑scale structures, where traditional DOM would require re‑discretization or complex interface handling.

Finally, the paper demonstrates the power of the new framework by deriving a closed‑form benchmark for media characterized by Henyey‑Greenstein (HG) scattering. The HG phase function, parameterized by the anisotropy factor g, is widely used to model non‑isotropic scattering in atmospheric, astrophysical, and biomedical optics contexts. Existing DOM treatments typically approximate the HG kernel or rely on numerical quadrature, limiting benchmark quality. By inserting the HG phase function into the response‑matrix formalism and applying the star product across layers, the authors obtain an exact analytical expression for the angular flux distribution. This benchmark serves as a high‑precision reference for future algorithm development and validation.

In summary, the paper makes four key contributions: (1) a compact, analytically exact response‑matrix solution for homogeneous 1‑D RTE; (2) the integration of Wynn‑epsilon acceleration to achieve near‑machine‑precision results; (3) a systematic star‑product‑based method for extending the solution to arbitrary heterogeneous layered media; and (4) a novel closed‑form benchmark for Henyey‑Greenstein scattering. The methodology is broadly applicable to atmospheric radiative transfer, astrophysical line‑transfer, neutron transport, and any field where accurate 1‑D transport modeling is essential. By delivering both theoretical rigor and practical computational tools, the work sets a new standard for discrete‑ordinate solutions of the radiative transfer equation.
