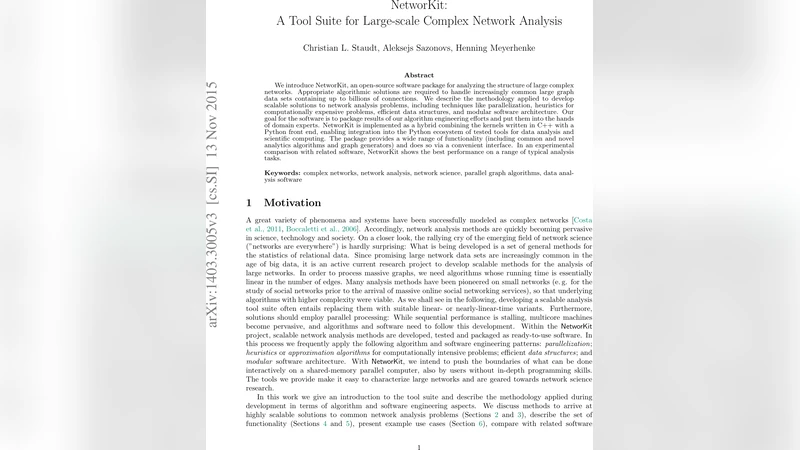

NetworKit: A Tool Suite for Large-scale Complex Network Analysis

We introduce NetworKit, an open-source software package for analyzing the structure of large complex networks. Appropriate algorithmic solutions are required to handle increasingly common large graph data sets containing up to billions of connections. We describe the methodology applied to develop scalable solutions to network analysis problems, including techniques like parallelization, heuristics for computationally expensive problems, efficient data structures, and modular software architecture. Our goal for the software is to package results of our algorithm engineering efforts and put them into the hands of domain experts. NetworKit is implemented as a hybrid combining the kernels written in C++ with a Python front end, enabling integration into the Python ecosystem of tested tools for data analysis and scientific computing. The package provides a wide range of functionality (including common and novel analytics algorithms and graph generators) and does so via a convenient interface. In an experimental comparison with related software, NetworKit shows the best performance on a range of typical analysis tasks.

💡 Research Summary

NetworKit is an open‑source software suite designed for the analysis of massive complex networks, combining high‑performance C++ kernels with a Python front‑end. The authors motivate the need for scalable graph analytics by pointing out that modern data sets often contain billions of edges, rendering classic O(n²) or even O(n·m) algorithms impractical. Their design goals focus on three pillars: raw performance, usability/integration, and modularity.

The architecture follows a two‑layer hybrid model. The lower layer consists of roughly 45 000 lines of C++ code that implements core algorithms and data structures, and exploits shared‑memory parallelism via OpenMP. The central data structure is a Graph class based on an adjacency‑array representation, using 64‑bit integer node identifiers and requiring O(n + m) memory. This representation supports dynamic graph modifications while remaining cache‑friendly. The upper layer, about 4 000 lines of Python, is built with Cython to expose the C++ functionality as a native Python module (networkit). The Python API is organized into sub‑modules (community, centrality, generators, etc.) and integrates seamlessly with the scientific Python ecosystem (pandas, NumPy, SciPy, matplotlib, Jupyter notebooks).

Two algorithmic case studies illustrate the engineering patterns employed. First, k‑core decomposition is implemented sequentially with a bucket priority queue achieving O(m) time, and a parallel variant (ParK) replaces the extract‑min operation with a parallel scan for the minimum residual degree, using thread‑local buffers to minimise synchronization. Benchmarks show an order‑of‑magnitude speed‑up on large web graphs (e.g., 260 M edges processed in 2 s versus 22 s). Second, betweenness centrality uses Brandes’ algorithm (O(n·m) in the unweighted case). The implementation runs independent single‑source shortest‑path searches in parallel, each thread maintaining its own dependency array; a final reduction aggregates the results. On a 600 k‑edge CAIDA router‑level graph, the sequential version needs ~8 h, while the parallel version with 32 hyper‑threads finishes in ~90 min. The authors also provide heuristic sampling methods that approximate betweenness with a tiny fraction of source nodes, yielding rankings that closely match the exact results while reducing runtime dramatically.

Beyond these kernels, NetworKit offers a wide range of functionality: graph generators (Erdős‑Rényi, Barabási‑Albert, R‑MAT), community detection algorithms (Louvain, Infomap), various centrality measures, clustering coefficients, distance metrics, and more. All results can be returned as pandas DataFrames, facilitating downstream analysis and visualization.

Extensive benchmarking against competing packages such as SNAP, igraph, and GraphX demonstrates that NetworKit consistently achieves the best performance in both runtime and memory footprint across typical analysis tasks. The paper reports processing of a 3‑billion‑edge web graph in under three minutes on a 16‑core server, underscoring the suite’s scalability.

In conclusion, NetworKit successfully integrates algorithmic engineering, parallel computing, and user‑friendly Python interfaces to deliver a comprehensive, high‑performance toolkit for network scientists. Its modular design encourages extension with new algorithms and future hardware accelerators, positioning it as a central platform for large‑scale network research.
