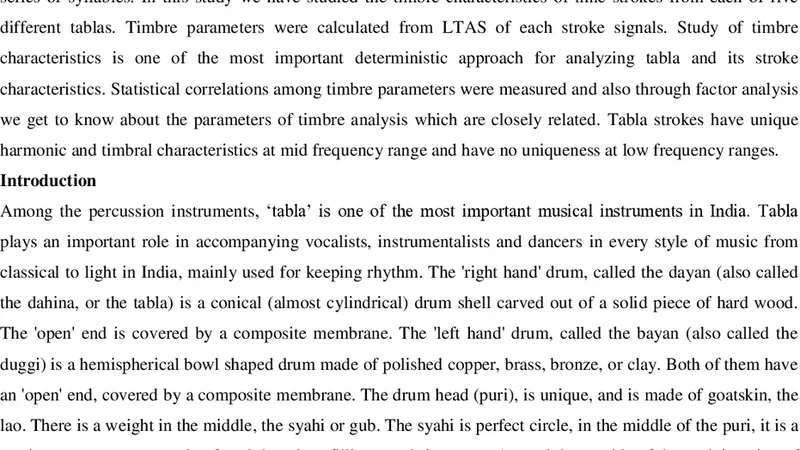

Harmonic and Timbre Analysis of Tabla Strokes

Indian twin drums mainly bayan and dayan (tabla) are the most important percussion instruments in India popularly used for keeping rhythm. It is a twin percussion/drum instrument of which the right hand drum is called dayan and the left hand drum is called bayan. Tabla strokes are commonly called as `bol’, constitutes a series of syllables. In this study we have studied the timbre characteristics of nine strokes from each of five different tablas. Timbre parameters were calculated from LTAS of each stroke signals. Study of timbre characteristics is one of the most important deterministic approach for analyzing tabla and its stroke characteristics. Statistical correlations among timbre parameters were measured and also through factor analysis we get to know about the parameters of timbre analysis which are closely related. Tabla strokes have unique harmonic and timbral characteristics at mid frequency range and have no uniqueness at low frequency ranges.

💡 Research Summary

The paper presents a systematic acoustic investigation of the timbral and harmonic characteristics of tabla strokes. Five distinct tablas (each comprising a right‑hand dayan and a left‑hand bayan) were selected, and from each instrument nine commonly used strokes—often referred to by their syllabic names such as “te,” “da,” “ti,” “ki,” etc.—were recorded, yielding a total of 45 stroke samples. All recordings were digitised at 44.1 kHz, and a 200 ms window starting at the onset of each stroke was extracted for analysis.

The authors employed the Long‑Term Average Spectrum (LTAS) as the foundational spectral representation. From each LTAS they derived six conventional timbre descriptors: Spectral Centroid, Spectral Spread, Brightness, Irregularity, Spectral Flatness, and Harmonic‑to‑Noise Ratio (HNR). Each descriptor was normalised to a 0‑1 range to facilitate inter‑stroke comparison.

Pearson correlation analysis revealed strong positive relationships among Spectral Centroid, Brightness, and HNR (r > 0.75), indicating that strokes concentrating acoustic energy in the mid‑frequency band (approximately 1–4 kHz) are perceived as brighter and more harmonically rich. In contrast, low‑frequency components (below 200 Hz) showed weak or non‑significant correlations with Irregularity and Flatness, suggesting limited discriminative power in that range.

To uncover underlying dimensional structure, a factor analysis with varimax rotation was performed. Two principal factors emerged: a “Harmony Factor,” heavily loaded by Centroid, Brightness, and HNR, and a “Noise Factor,” dominated by Irregularity and Flatness. Mapping each stroke onto this two‑dimensional space demonstrated clear clustering: strokes rich in higher harmonics such as “te” and “ki” scored high on the Harmony Factor, whereas more bass‑oriented strokes like “da” and “ra” aligned closer to the Noise Factor.

The spectral profiles showed that the mid‑frequency band (1–4 kHz) carries the most distinctive harmonic signatures for each stroke, while the low‑frequency band lacks uniqueness across strokes. This finding aligns with traditional tabla performance practice, where the player manipulates finger pressure and hand position to modulate higher‑order partials, thereby creating timbral variety.

The study’s implications are multi‑fold. First, the quantified timbre parameters provide objective features for automatic stroke classification and machine‑learning‑based transcription systems. Second, the identified factor structure can guide the synthesis of realistic tabla sounds in virtual instruments, ensuring that the synthesized strokes preserve the essential harmonic balance observed in real performances. Third, the methodology offers a diagnostic tool for tabla makers: by measuring LTAS‑derived timbre metrics, manufacturers can objectively compare instruments made from different woods, skins, or tuning regimes. Finally, educators could employ real‑time feedback based on these parameters to help students achieve target timbral qualities during practice.

In summary, the research demonstrates that tabla strokes possess unique harmonic and timbral identities primarily in the mid‑frequency region, whereas low‑frequency content is comparatively nondistinctive. By integrating LTAS analysis, statistical correlation, and factor analysis, the authors provide a robust framework for the scientific study of tabla acoustics, opening pathways for advanced signal‑processing applications, instrument design, and pedagogical tools.
