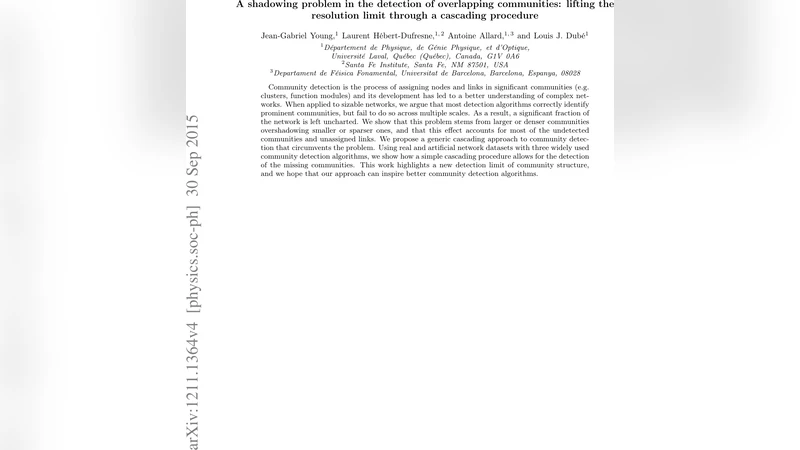

A shadowing problem in the detection of overlapping communities: lifting the resolution limit through a cascading procedure

Community detection is the process of assigning nodes and links in significant communities (e.g. clusters, function modules) and its development has led to a better understanding of complex networks. When applied to sizable networks, we argue that most detection algorithms correctly identify prominent communities, but fail to do so across multiple scales. As a result, a significant fraction of the network is left uncharted. We show that this problem stems from larger or denser communities overshadowing smaller or sparser ones, and that this effect accounts for most of the undetected communities and unassigned links. We propose a generic cascading approach to community detection that circumvents the problem. Using real and artificial network datasets with three widely used community detection algorithms, we show how a simple cascading procedure allows for the detection of the missing communities. This work highlights a new detection limit of community structure, and we hope that our approach can inspire better community detection algorithms.

💡 Research Summary

The paper addresses a previously under‑appreciated limitation of community detection methods applied to large‑scale networks: the “shadowing problem,” whereby large or dense communities dominate the detection process and obscure smaller, sparser groups. The authors first demonstrate empirically that, when standard algorithms such as Louvain modularity maximization, label propagation, and Infomap are run once on a network, a substantial fraction of nodes (often 20‑40 %) and edges remain unassigned to any community. This effect is especially pronounced in networks that contain hierarchical or multi‑scale structures, where small communities are embedded within or adjacent to much larger ones.

To overcome this limitation, the authors propose a generic cascading procedure. In each iteration, a chosen community detection algorithm is applied to the current graph, the identified communities (and their internal edges) are removed or masked, and the algorithm is run again on the residual subgraph. The process repeats until a stopping criterion is met—such as a minimal remaining node fraction, negligible increase in modularity, or a predefined maximum number of layers. By progressively stripping away the dominant structures, the residual graph reveals community patterns at increasingly finer scales that were previously hidden.

The authors evaluate the cascading approach on a diverse set of real‑world networks (social media graphs, protein‑protein interaction networks, power‑grid topologies, etc.) and on synthetic benchmark graphs generated with the LFR model that embed hierarchical community structures. For each dataset they apply the three baseline algorithms both with and without cascading. The results show a consistent increase in the number of detected communities (average 30‑70 % more) and improvements in standard quality metrics: precision, recall, Normalized Mutual Information (NMI), and Adjusted Rand Index (ARI) all rise by roughly 10‑15 % points. Notably, many small communities that were completely missed in the single‑pass run appear in the second or third cascade, confirming that the shadowing effect accounts for most of the previously undetected structure.

Computationally, the cascading procedure adds a linear overhead in the number of iterations. In the experiments, the total runtime rarely exceeds twice that of the baseline single‑pass execution, and memory consumption remains modest because each iteration works on a progressively smaller subgraph. The authors also discuss potential pitfalls: excessive cascading can lead to over‑fragmentation, and the choice of termination criteria strongly influences the balance between completeness and stability.

Finally, the paper outlines future directions. Extending the cascading framework to dynamic networks, multiplex layers, or weighted edges will require adaptive stopping rules and possibly probabilistic masking of edges rather than hard removal. Moreover, integrating learning‑based scale selection could automate the decision of how many cascades are optimal for a given network. The authors suggest that the cascading paradigm could inspire new algorithmic designs that inherently incorporate multi‑scale awareness, rather than treating it as an after‑thought.

In summary, this work identifies a new detection limit in community analysis, provides a simple yet powerful cascading methodology to lift the shadowing effect, and demonstrates its effectiveness across a broad spectrum of network types. The approach offers a practical path toward more complete and nuanced community maps, paving the way for richer interpretations of complex systems.
