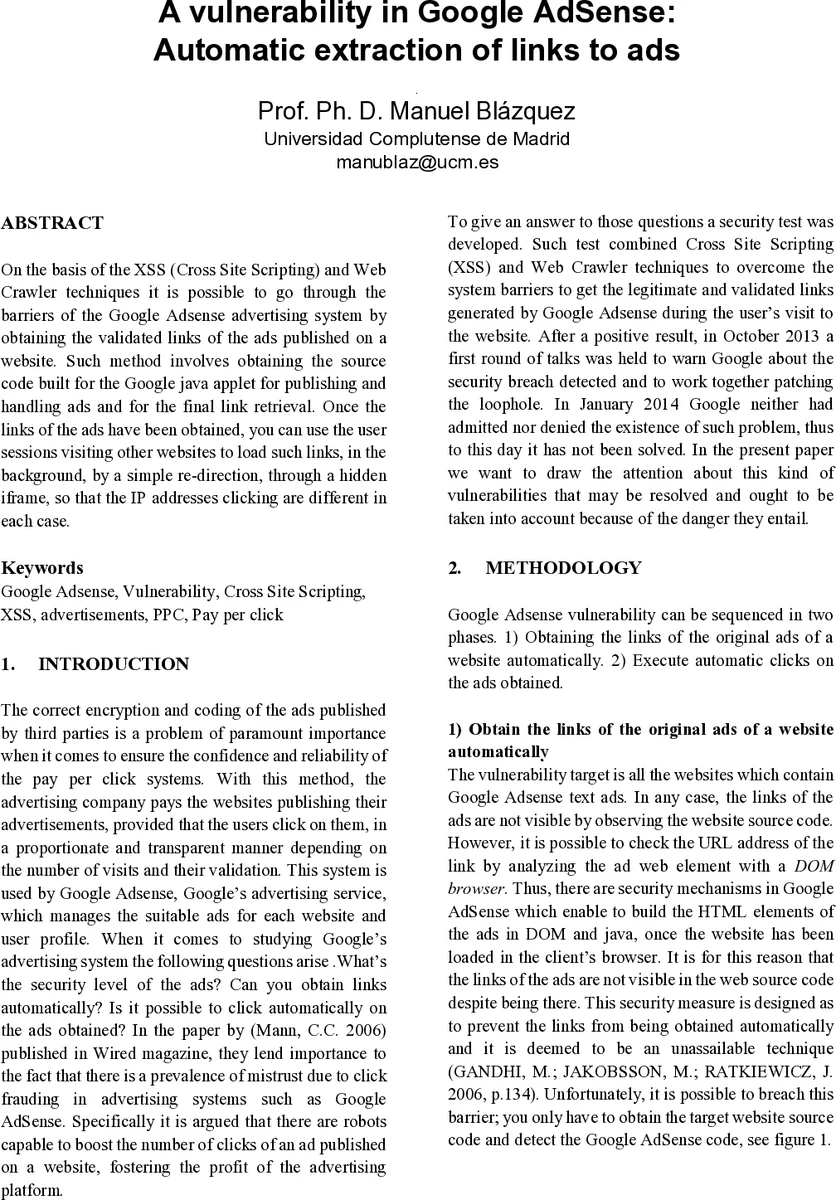

A vulnerability in Google AdSense: Automatic extraction of links to ads

On the basis of the XSS (Cross Site Scripting) and Web Crawler techniques it is possible to go through the barriers of the Google Adsense advertising system by obtaining the validated links of the ads published on a website. Such method involves obtaining the source code built for the Google java applet for publishing and handling ads and for the final link retrieval. Once the links of the ads have been obtained, you can use the user sessions visiting other websites to load such links, in the background, by a simple re-direction, through a hidden iframe, so that the IP addresses clicking are different in each case.

💡 Research Summary

This paper presents a detailed analysis of a security vulnerability within the Google AdSense advertising system, demonstrating a methodology for the automated extraction of validated advertisement links from a website and exploring the potential for executing fraudulent clicks.

The research is motivated by the critical importance of maintaining trust and transparency in Pay-Per-Click (PPC) systems, where advertisers pay publishers based on user clicks. The authors pose central questions regarding the security of AdSense ads: Can the links be obtained automatically, and is automatic clicking on these extracted links feasible? They contextualize the issue within the longstanding industry concern over click fraud.

The proposed attack methodology is sequenced into two main phases. The first phase is the automatic extraction of original ad links. Google AdSense employs security measures that dynamically construct ad HTML elements within the client’s browser using JavaScript (specifically, show_ads.js) and a two-iframe structure. The first iframe performs integrity checks, while the second loads the actual ad content. The vulnerability lies in bypassing this client-side rendering. The attacker uses Cross-Site Scripting (XSS) to inject a custom form into the target webpage’s “GoogleAdSense” div. A JavaScript payload, executed after the page and AdSense code have fully loaded, extracts the src URL of the second iframe (identified as google_ads_frame1) and submits it via the injected form. This captured URL contains parameters referencing the attacker’s domain. The attacker’s server-side script then modifies these parameters (namely &url and &p) using regular expressions, replacing them with the legitimate domain address of the target website hosting the ads. With this corrected URL, the script fetches the source code of the final ad-serving page and uses DOM parsing with XPath to extract all the validated advertisement links. The paper provides a step-by-step summary of this process and offers links to a functional proof-of-concept program and a demonstration video.

The second phase explores the execution of automatic clicks on the obtained ads. The authors acknowledge Google’s sophisticated, multi-layered invalid click detection systems, citing relevant patents. These systems employ anomaly detection, heuristic analysis based on metrics like click-through rate and user browsing paths, and pattern classification of user behavior. To circumvent these defenses, the paper proposes a strategic attack vector. Instead of clicking from a single source, an attacker would utilize a network of legitimate websites with genuine, varied traffic. Visitors to these sites would have a hidden iframe loaded in their browser, which silently executes the link extraction process from a target AdSense-publishing site and then decides whether to simulate a click. By distributing clicks across numerous unrelated IP addresses and mimicking natural traffic patterns (e.g., gradually increasing site visits, mixing clicks with mere page views), the attack could potentially evade statistical and behavioral anomaly detectors. The core weakness exploited is the difficulty in distinguishing these malicious, distributed clicks from genuine organic traffic when the clicking IPs are diverse and the timing appears natural.

In conclusion, the paper highlights a significant vulnerability that undermines the integrity of the PPC model. It demonstrates not just a technical method for link extraction but outlines a plausible, economically-motivated attack strategy for click fraud. The authors note that they reported this vulnerability to Google in 2013, but as of the paper’s writing, it had not been officially resolved. The work serves as a call for heightened security scrutiny and continuous adaptation of defense mechanisms within online advertising platforms.
