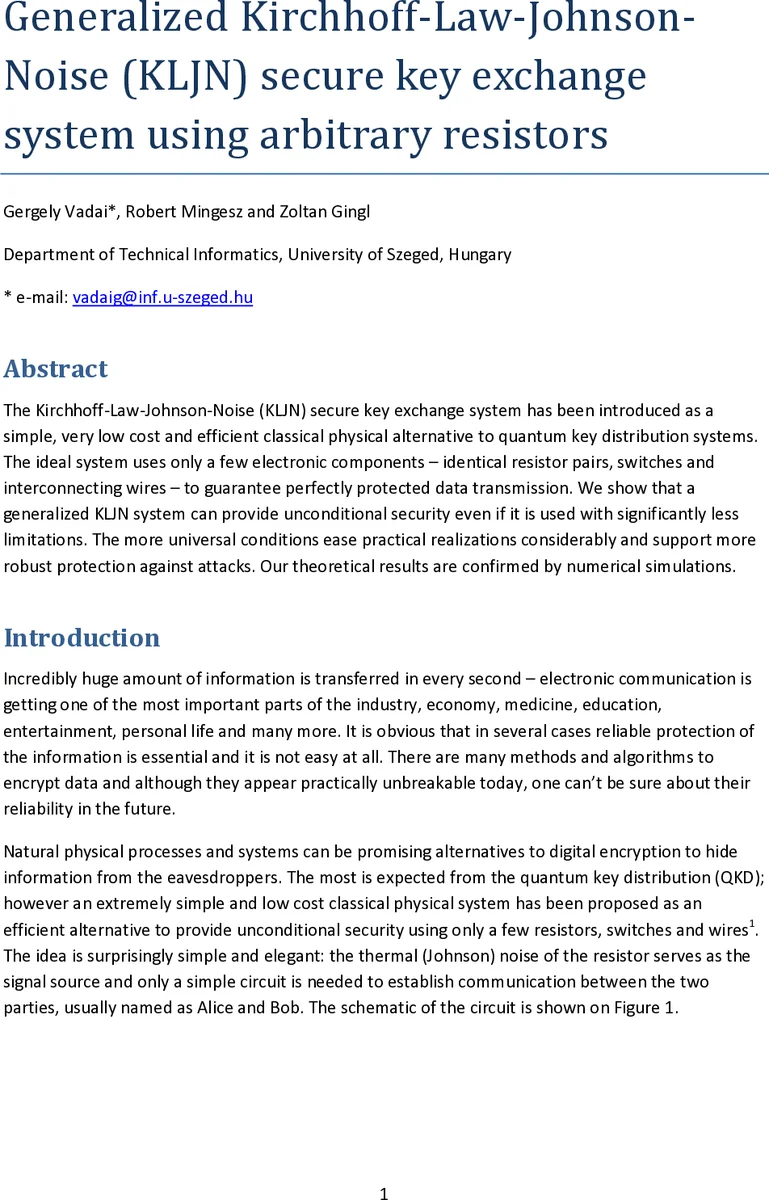

Generalized Kirchhoff-Law-Johnson-Noise (KLJN) secure key exchange system using arbitrary resistors

The Kirchhoff-Law-Johnson-Noise (KLJN) secure key exchange system has been introduced as a simple, very low cost and efficient classical physical alternative to quantum key distribution systems. The ideal system uses only a few electronic components - identical resistor pairs, switches and interconnecting wires - to guarantee perfectly protected data transmission. We show that a generalized KLJN system can provide unconditional security even if it is used with significantly less limitations. The more universal conditions ease practical realizations considerably and support more robust protection against attacks. Our theoretical results are confirmed by numerical simulations.

💡 Research Summary

The paper presents a significant extension of the Kirchhoff‑Law‑Johnson‑Noise (KLJN) secure key exchange protocol, demonstrating that the requirement for identical resistor pairs at both ends of the communication line can be relaxed. By allowing four arbitrary resistors—two at Alice’s side (R_LA, R_HA) and two at Bob’s side (R_LB, R_RB)—and by carefully selecting the noise‑voltage variances associated with each resistor, the authors prove that unconditional security is retained.

In the classic KLJN scheme, each party randomly connects either a low‑value resistor (R_L) or a high‑value resistor (R_H) to the line, and the thermal (Johnson) noise of the selected resistor acts as the signal. When the two parties choose different resistors (the LH or HL cases), the statistical properties of the line current and voltage are identical, making it impossible for an eavesdropper (Eve) to determine which party used which resistor. This yields a perfectly secure 1‑bit exchange. However, practical implementations suffer from component tolerances, wire resistance, switch non‑idealities, and deviations from ideal Johnson noise, which can create information leakage.

The generalized protocol replaces the identical resistor pairs with four independently chosen resistors. Eve can still measure the line current I_E(t) and voltage V_E(t). Security now requires that the following three statistical quantities be equal for the LH and HL configurations: (1) the variance of the current, (2) the variance of the voltage, and (3) the cross‑correlation between current and voltage. By substituting the circuit expressions for I_E and V_E (derived from Kirchhoff’s laws) into these conditions, the authors obtain three equations (labelled Eq. 2, Eq. 4, and Eq. 9 in the manuscript). Eq. 9, in particular, expresses the equality of power flow from Alice to Bob and from Bob to Alice in the two mixed‑resistor states. In the original KLJN protocol the two sides of Eq. 9 are zero because the product R·V² is the same for both resistors; in the generalized case the terms are non‑zero but must be identical for LH and HL.

Given any four resistor values, one may arbitrarily set the variance of one noise source (e.g., V_LA²) and then solve the three equations to obtain the required variances for the remaining three sources (V_HA², V_LB², V_RB²). Physically this corresponds to assigning each resistor a distinct effective temperature, which is feasible because modern KLJN implementations use artificial noise generators rather than relying on true thermal noise.

The authors validate the theory with extensive numerical simulations performed in LabVIEW. Three configurations are examined: (i) the classic KLJN values (R_L=1 kΩ, R_H=9 kΩ), (ii) a set with R_HA=10 kΩ, R_LB=5 kΩ, and (iii) another asymmetric set. For each case, 10⁶ bits are transmitted, and the distributions of I_E variance, V_E variance, and the I_E–V_E correlation are recorded. Histograms for the LH and HL states overlap almost perfectly, and the measured bit‑error rate (BER) based on each statistic is essentially 50 % (≈49.97 %–49.99 %). This indicates that Eve’s guessing success is no better than random, confirming that no information is leaked. Notably, while the original KLJN exhibits zero current‑voltage correlation, the generalized protocol shows a non‑zero but identical correlation for both mixed states, consistent with the non‑zero power flow required by Eq. 9.

The discussion emphasizes the practical impact of these findings. Because the required noise variances can be adjusted in real time, any deviation from ideal component values—such as resistor tolerance, wire resistance, or switch resistance—can be compensated by recalibrating the artificial noise amplitudes. This dynamic compensation can be performed continuously during operation, using public communication to exchange measured component values. Consequently, attacks that exploit wire resistance, directional wave measurements, or component mismatches are effectively neutralized. The authors also note that the generalized protocol simplifies the design of KLJN‑based secure hardware for applications ranging from smart‑grid key distribution to automotive communication and hardware‑based unclonable functions.

Methodologically, the work builds on previous statistical analyses of KLJN, extending them to the four‑resistor case. The analytical derivations are straightforward applications of Kirchhoff’s voltage and current laws combined with the statistical independence of the noise sources. The simulation code is made publicly available, facilitating reproducibility.

In conclusion, the paper demonstrates that the KLJN key exchange does not fundamentally depend on having identical resistor pairs. By allowing arbitrary resistor values and appropriately scaling the associated noise variances, unconditional security is preserved. This generalization greatly relaxes the engineering constraints of KLJN systems, enables real‑time compensation of non‑idealities, and opens the door to more robust and versatile implementations of classical physics‑based secure communication.
