Three-Dimensional Stateful Material Implication Logic

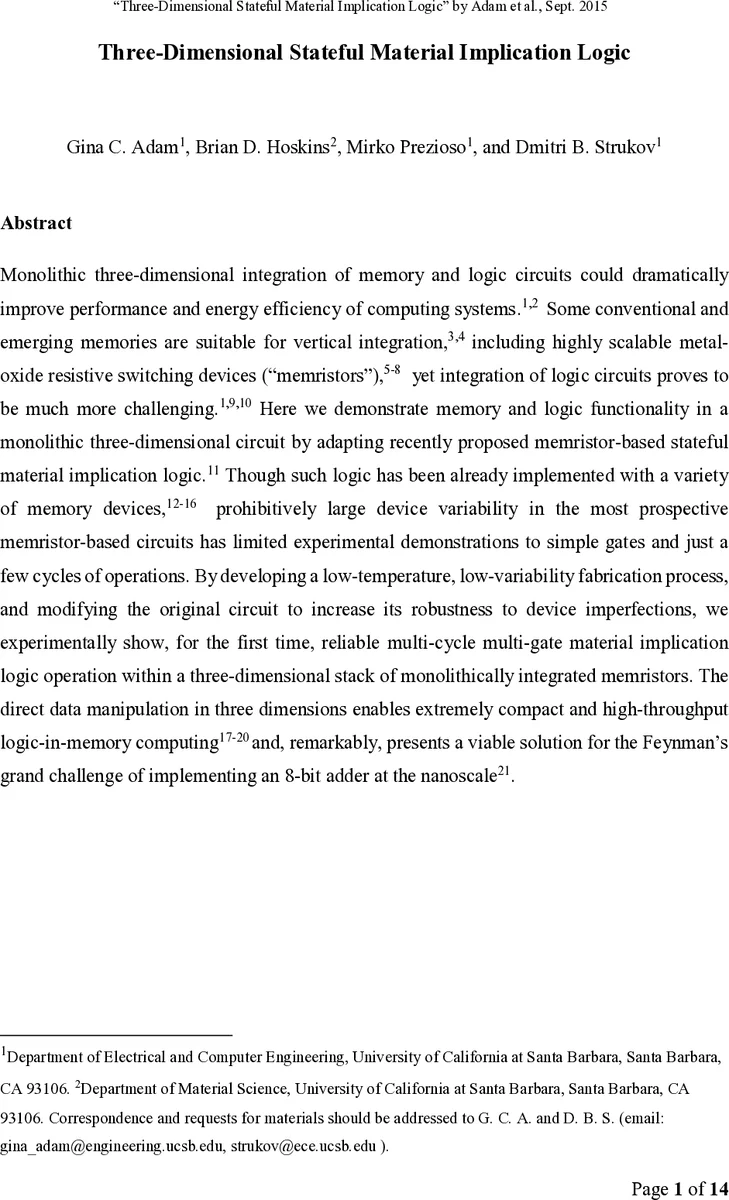

Monolithic three-dimensional integration of memory and logic circuits could dramatically improve performance and energy efficiency of computing systems. Some conventional and emerging memories are suitable for vertical integration, including highly scalable metal-oxide resistive switching devices (memristors), yet integration of logic circuits proves to be much more challenging. Here we demonstrate memory and logic functionality in a monolithic three-dimensional circuit by adapting recently proposed memristor-based stateful material implication logic. Though such logic has been already implemented with a variety of memory devices, prohibitively large device variability in the most prospective memristor-based circuits has limited experimental demonstrations to simple gates and just a few cycles of operations. By developing a low-temperature, low-variability fabrication process, and modifying the original circuit to increase its robustness to device imperfections, we experimentally show, for the first time, reliable multi-cycle multi-gate material implication logic operation within a three-dimensional stack of monolithically integrated memristors. The direct data manipulation in three dimensions enables extremely compact and high-throughput logic-in-memory computing and, remarkably, presents a viable solution for the Feynman grand challenge of implementing an 8-bit adder at the nanoscale.

💡 Research Summary

The paper presents a pioneering experimental demonstration of stateful material implication (IMP) logic implemented in a monolithically integrated three‑dimensional (3D) stack of metal‑oxide memristors. Recognizing that the major obstacle to scaling memristor‑based IMP logic has been the large device‑to‑device and cycle‑to‑cycle variability, the authors address the problem on two fronts: device fabrication and circuit architecture.
First, they develop a low‑temperature (≤300 °C) sputtering and lift‑off process that deposits Ti/Al₂O₃/TiO₂‑x layers with carefully controlled stoichiometry. By forming the bottom and top devices in a single vacuum run, they achieve pristine metal‑oxide/metal interfaces, reduce forming voltages, and dramatically improve the uniformity of set/reset thresholds. Chemical‑mechanical polishing of the middle electrode further smooths the surface, minimizing variations in the top‑level devices. The resulting four‑memristor stack (two devices per layer) exhibits sharp set transitions, gradual reset, ON/OFF conductance ratios exceeding an order of magnitude, negligible crosstalk, and endurance/retention comparable to state‑of‑the‑art ReRAM.
Second, they modify the classic IMP circuit, which originally uses a resistive load and two voltage sources, by replacing the load with a current source I_L. This effectively drives the load conductance G_L toward zero, which theoretical analysis and numerical simulations show expands the permissible “set margin” by more than 20 % compared with the optimal resistive load (G_L = √(G_ON G_OFF)). The enlarged margin makes the logic tolerant to the measured variations in V_set and V_reset across all four devices.
Using the optimized current‑source design, the authors execute a series of IMP operations on all four possible pairings of memristors (p → q). Before each operation the devices are programmed to the required initial states, demonstrating that memory and logic can coexist in the same physical circuit. The output memristor reliably switches to the high‑conductance state only when the source memristor is low, confirming correct IMP behavior.
To prove composability, they construct a NAND gate using a three‑step sequence: an unconditional reset of the output device, followed by two IMP pulses. The NAND gate works across the 3D stack, with the output stored in a top‑layer memristor that can subsequently serve as an input for another gate. In a small fraction of cases (~6.5 %) the ON/OFF ratio degrades; the authors suggest a read‑and‑write refresh step to restore margin.
Finally, the paper outlines how the demonstrated 3D IMP logic can be scaled to implement a full adder, the fundamental building block of an 8‑bit ripple‑carry adder—one of Feynman’s Grand Challenges. The proposed full adder uses six memristors arranged in two stacked 2 × 2 crossbars sharing a middle electrode; two devices are kept permanently OFF to suppress leakage. The adder requires nine NAND gates and four NOT gates, realized with 13 unconditional resets and 22 IMP operations. Outputs can be sensed electrically or via mechanical deformation of the metal electrodes, a known side effect of resistive switching.
In discussion, the authors argue that as memristor technology advances toward sub‑nanosecond switching, pico‑joule energy per operation, and >10¹⁴ cycle endurance (already demonstrated in discrete devices), the presented 3D stateful logic approach will become attractive for high‑throughput, memory‑bound workloads that suffer from the von Neumann bottleneck. The work thus bridges the gap between theoretical proposals of memristor‑based logic‑in‑memory and a practical, scalable 3D hardware platform, offering a realistic pathway toward ultra‑compact computing architectures.
