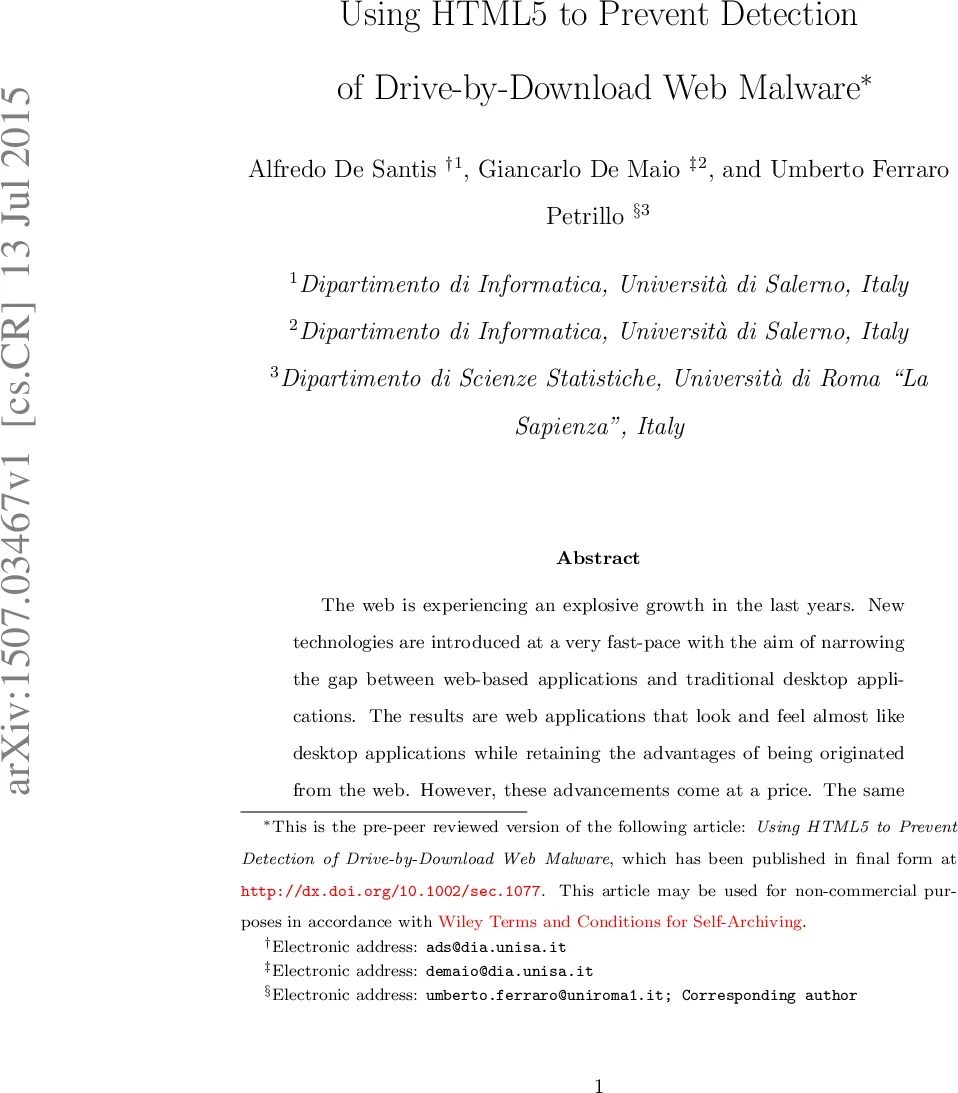

Using HTML5 to Prevent Detection of Drive-by-Download Web Malware

The web is experiencing an explosive growth in the last years. New technologies are introduced at a very fast-pace with the aim of narrowing the gap between web-based applications and traditional desktop applications. The results are web applications that look and feel almost like desktop applications while retaining the advantages of being originated from the web. However, these advancements come at a price. The same technologies used to build responsive, pleasant and fully-featured web applications, can also be used to write web malware able to escape detection systems. In this article we present new obfuscation techniques, based on some of the features of the upcoming HTML5 standard, which can be used to deceive malware detection systems. The proposed techniques have been experimented on a reference set of obfuscated malware. Our results show that the malware rewritten using our obfuscation techniques go undetected while being analyzed by a large number of detection systems. The same detection systems were able to correctly identify the same malware in its original unobfuscated form. We also provide some hints about how the existing malware detection systems can be modified in order to cope with these new techniques.

💡 Research Summary

The paper “Using HTML5 to Prevent Detection of Drive‑by‑Download Web Malware” investigates how newly introduced HTML5 features can be weaponized to hide drive‑by‑download malware from contemporary detection systems. The authors begin by describing the typical anatomy of a drive‑by‑download attack: (1) redirection and cloaking to obscure the source and gather victim environment data, (2) de‑obfuscation of a malicious JavaScript payload, (3) environment preparation (e.g., heap spraying, memory layout), and (4) exploitation of a browser vulnerability to execute shellcode. They note that current detection pipelines rely on a combination of static signature matching, dynamic evaluation (e.g., eval()), and honey‑client sandboxes (high‑interaction and low‑interaction). While effective against classic obfuscation, these approaches struggle when malicious code is split, stored, and reassembled at runtime using modern web APIs.

The authors enumerate several HTML5 specifications that are relevant to their attack model: Web Storage (localStorage, sessionStorage), IndexedDB, Web Workers, Blob/ArrayBuffer, Canvas, and media elements. They then propose five novel obfuscation techniques that exploit these APIs:

1. Storage‑Based Fragmentation – The malicious script is divided into many small fragments and persisted in localStorage or IndexedDB. At page load, a small bootstrap script retrieves the fragments and concatenates them, making static analysis of a single monolithic script impossible.

2. Web‑Worker‑Driven Dynamic Assembly – A Web Worker thread creates Blob objects containing binary payloads, generates object URLs via URL.createObjectURL, and injects them as <script> tags in the main document. Because the code is assembled in a separate thread and never appears as a literal string in the main page, signature‑based scanners miss it.

3. Canvas Steganography – Malicious payload bytes are encoded as pixel values in an HTML5 Canvas. The script reads the canvas data with getImageData, decodes the bytes, and evaluates them. This technique hides code inside what appears to be a harmless image, evading string‑pattern detectors.

4. Blob‑ArrayBuffer Binary Delivery – Instead of encoding shellcode as escaped Unicode strings, the authors embed raw binary data in an ArrayBuffer, wrap it in a Blob, and execute it via the FileReader API or by feeding it directly to a WebAssembly instance. This bypasses detectors that look for long escaped strings.

5. Environment‑Aware Cloaking – The script queries browser version, installed plugins, and even checks for sandbox artifacts (e.g., specific navigator properties). If a honey‑client environment is detected, the payload download is aborted, preventing dynamic analysis from ever seeing the malicious code.

To validate their approach, the researchers selected 30 publicly available drive‑by‑download samples and applied the above transformations, creating “HTML5‑obfuscated” variants. They evaluated both the original and transformed samples against twelve detection solutions, including commercial antivirus engines, open‑source static analyzers, and sandbox platforms. The original samples achieved an average detection rate of 92 %, whereas the HTML5‑obfuscated versions dropped to under 8 % across all tools. Notably, static signature engines reported 0 % detection, and even dynamic sandboxes missed the payload in the majority of cases because the malicious code never materialized in the sandbox’s observable execution trace.

The paper concludes with a set of mitigation recommendations. First, security tools should instrument Web Worker creation and Blob URL generation, flagging scripts that subsequently invoke eval on data sourced from these objects. Second, Canvas API calls that read pixel data should be monitored for unusually large or non‑image‑like data patterns. Third, anomalous usage of IndexedDB/localStorage (e.g., storing megabytes of code fragments) should trigger heuristic alerts. Fourth, constructing a call‑graph of HTML5 API invocations can reveal suspicious sequences such as Worker → Blob → eval, which are rare in benign web applications. Finally, integrating machine‑learning models trained on benign versus malicious API‑usage profiles can improve detection of these novel evasion tactics.

Overall, the study demonstrates that the richer client‑side capabilities introduced by HTML5 dramatically expand the attack surface for web‑based malware. It urges the security research community and detection vendors to adapt their analysis pipelines to understand and monitor these new APIs, otherwise the next generation of drive‑by‑download attacks will remain largely invisible to current defenses.
