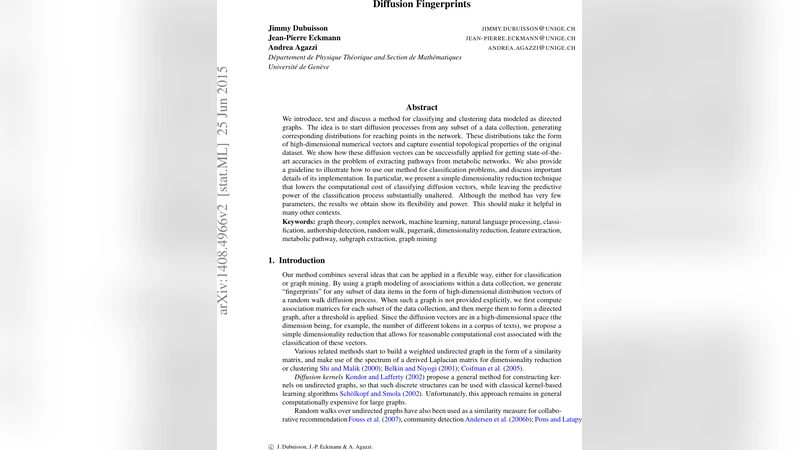

Diffusion Fingerprints

We introduce, test and discuss a method for classifying and clustering data modeled as directed graphs. The idea is to start diffusion processes from any subset of a data collection, generating corresponding distributions for reaching points in the network. These distributions take the form of high-dimensional numerical vectors and capture essential topological properties of the original dataset. We show how these diffusion vectors can be successfully applied for getting state-of-the-art accuracies in the problem of extracting pathways from metabolic networks. We also provide a guideline to illustrate how to use our method for classification problems, and discuss important details of its implementation. In particular, we present a simple dimensionality reduction technique that lowers the computational cost of classifying diffusion vectors, while leaving the predictive power of the classification process substantially unaltered. Although the method has very few parameters, the results we obtain show its flexibility and power. This should make it helpful in many other contexts.

💡 Research Summary

The paper introduces a novel framework called Diffusion Fingerprints (DF) for representing, classifying, and clustering data that can be modeled as directed graphs. The authors start by constructing an association matrix for each document (or data subset) in a collection Σ. In the case of textual data, tokens are treated as items, and the association between two tokens u and v is quantified by counting occurrences of v that appear between successive occurrences of u. A distance‑decay function f(i,j)=exp(−β·(j−i−1)) reduces the contribution of distant pairs, while a logarithmic normalization g(x)=−log x compensates for highly frequent pairs. The resulting |T|×|T| matrix K(k) (where T is the vocabulary) captures the pairwise association structure of document k.

All per‑document matrices are summed to obtain a global association matrix K(Σ). To turn this into a graph, a density parameter γ is introduced: the top N=γ·|T|·(|T|−1) entries of K(Σ) are set to 1, the rest to 0, yielding a binary adjacency matrix A(γ). This matrix defines a directed domain graph G(γ) whose nodes are the items and whose edges correspond to the strongest associations. The construction can be adapted to weighted edges if desired, but the binary version simplifies subsequent steps.

The core of the method is to generate a high‑dimensional fingerprint for any subset of items by running a diffusion process on G(γ). For a given document k, the subset T′(k) of items that actually appear in the document is used as the seed set. A transition matrix P = D⁻¹A(γ) (D is the diagonal degree matrix) defines a random walk on the graph. A personalized vector v_k is built from the frequencies of items in the document (v_k(u)=f_k(u) for u∈T(k), zero otherwise). The diffusion is performed via the personalized PageRank iteration

 ppr_k(t+1) = α·v_k + (1−α)·ppr_k(t)·P

where α∈(0,1] is the “jumping constant”. The stationary distribution π(k)=lim_{t→∞}ppr_k(t) is taken as the diffusion fingerprint of document k. Because the process can be stopped after a finite number of steps, one can obtain “snapshots” of the diffusion at different times, which may capture temporal aspects of the data.

Since the fingerprint lives in a space whose dimensionality equals the size of the vocabulary (often tens of thousands), the authors propose a simple dimensionality reduction: retain only the coordinates corresponding to the most frequent items (or any other fixed subset). Experiments show that this reduction barely affects classification performance while dramatically lowering memory and computational requirements. This approach is far simpler than spectral methods based on Laplacian eigenvectors, yet it preserves the essential discriminative information.

The paper’s main application is the extraction of metabolic pathways from large biochemical networks. Using the MetaCyc v1.8.5 database, the authors build a species‑species graph (SSG) with 9,553 nodes and 75,078 directed edges. For a known pathway, the set R of participating metabolites is identified, and its source nodes S (zero in‑degree) and sink nodes T (zero out‑degree) are defined. The diffusion fingerprint of S is computed on G, while the fingerprint of T is computed on the reversed graph G* (i.e., using the transpose of the transition matrix). The two fingerprints are combined element‑wise (Hadamard product) to highlight nodes that are simultaneously reachable from sources and can reach sinks.

A key challenge in metabolic graphs is the presence of hub metabolites (e.g., H₂O, ATP) that connect to a huge fraction of nodes and would dominate any random‑walk based measure. To mitigate this, the authors introduce a “PageRank boosting” step: the combined fingerprint is divided element‑wise by the product of the global PageRank vectors of G and G*. This penalizes high‑centrality hubs without discarding them outright, allowing more biologically meaningful intermediates to surface.

Pathway reconstruction proceeds by selecting the n largest entries of the boosted combined fingerprint and increasing n until the induced subgraph connects all sources to all sinks (weak connectivity). The authors evaluate the method on 1,981 annotated pathways of length ≥3. Using α=0.15 (the standard value in PageRank literature), they obtain high precision and recall, with the geometric mean (referred to as “geometric accuracy”) remaining stable for α in the interval (0.1, 0.6). The method is robust: when α approaches 0 the walk becomes a standard random walk and all pathways are found (low specificity), while α near 1 collapses the walk to the seed set (no pathways found). In the intermediate regime, the exponential decay of node weights with distance ensures that shorter, biologically plausible pathways are preferentially selected.

Compared with earlier approaches that rely on shortest‑path calculations or weighted random walks (often with O(m·s³) computational complexity, where m is the number of edges and s the size of source/target sets), the DF method requires only matrix‑vector multiplications and a few PageRank iterations, yielding a practical O(m·log n) scaling. Moreover, the method does not need a pre‑defined path length limit, as the diffusion naturally attenuates contributions from distant nodes.

Beyond metabolic networks, the authors discuss how the same pipeline can be applied to text classification, authorship attribution, and other graph‑mining tasks. The key advantages are: (1) minimal hyper‑parameter tuning (essentially only γ for graph sparsity and α for walk length), (2) ability to handle overlapping subsets (multiple documents can share nodes), (3) flexibility to incorporate biased random walks or alternative diffusion kernels, and (4) straightforward implementation using standard linear‑algebra libraries.

In summary, the paper presents a coherent, computationally efficient, and empirically validated method for turning any directed graph representation of data into discriminative high‑dimensional fingerprints via personalized diffusion. The combination of a simple graph construction, personalized PageRank diffusion, lightweight dimensionality reduction, and hub‑penalizing normalization yields state‑of‑the‑art performance on metabolic pathway inference and promises broad applicability across domains that can be expressed as directed association networks.
