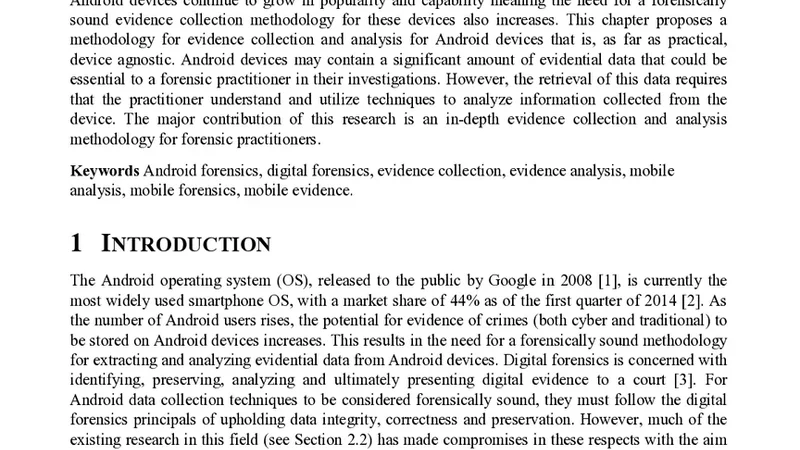

Conceptual evidence collection and analysis methodology for Android devices

Android devices continue to grow in popularity and capability meaning the need for a forensically sound evidence collection methodology for these devices also increases. This chapter proposes a methodology for evidence collection and analysis for Android devices that is, as far as practical, device agnostic. Android devices may contain a significant amount of evidential data that could be essential to a forensic practitioner in their investigations. However, the retrieval of this data requires that the practitioner understand and utilize techniques to analyze information collected from the device. The major contribution of this research is an in-depth evidence collection and analysis methodology for forensic practitioners.

💡 Research Summary

The paper addresses the growing need for a reliable, device‑agnostic forensic methodology for Android smartphones and tablets, whose market penetration and functional complexity have made them a rich source of digital evidence. It begins by outlining the challenges posed by the diversity of hardware manufacturers, custom ROMs, varying OS versions, and security mechanisms such as locked bootloaders, SELinux, and dm‑verity. To overcome these obstacles, the authors propose a comprehensive five‑stage workflow that can be applied to virtually any Android device, regardless of make or model.

Stage 1 – Scene Preservation
The first stage emphasizes preserving the integrity of the device at the crime scene. Recommended actions include maintaining power (using battery packs or external power supplies), disabling wireless interfaces (air‑plane mode, Wi‑Fi, Bluetooth), and preventing accidental data alteration by employing write‑blocking hardware or forensic acquisition kits. The authors stress that any decision to power‑off a device must be weighed against the risk of losing volatile memory, and they suggest using “cold boot” techniques only when justified.

Stage 2 – Data Acquisition
Data acquisition is divided into logical and physical extraction. Logical acquisition leverages ADB (Android Debug Bridge) commands, Fastboot, or custom recovery environments to pull files from the /data partition without altering the device’s state. Physical acquisition, required for deeper analysis, employs JTAG, Chip‑Off, or eMMC dumping methods to obtain raw bit‑for‑bit images of all partitions. The paper discusses the trade‑offs between these approaches, noting that physical acquisition yields the most complete evidence but is more invasive and may be legally contentious. For devices that cannot be rooted, the authors introduce a “non‑root forensic” technique that uses a signed custom recovery (e.g., TWRP) to mount partitions read‑only and extract images while preserving the original hash.

Stage 3 – File‑System and Partition Analysis
Once images are obtained, the methodology guides analysts through partition identification (system, data, cache, vendor) and file‑system specifics (ext4, f2fs). Detailed instructions are provided for parsing journal entries, recovering deleted files, and extracting metadata such as inode timestamps, permissions, and extended attributes. The authors illustrate how to reconstruct file‑system activity timelines, which can reveal evidence of data wiping, app installation, or system modifications.

Stage 4 – Application‑Level Data Extraction
The fourth stage focuses on the wealth of evidence stored by individual applications. The paper catalogs common storage mechanisms: SQLite databases, SharedPreferences XML files, cache directories, and WebView data. It supplies sample parsing scripts for popular messaging and social‑media apps (WhatsApp, Telegram, Facebook, Instagram) and explains how to locate encryption keys either in the Android Keystore or in memory dumps. For encrypted backups (e.g., WhatsApp .crypt12 files), the authors describe a key‑extraction process using Volatility plugins, followed by decryption with OpenSSL. The methodology also covers the extraction of location histories, call logs, and multimedia files, emphasizing the importance of correlating timestamps across different data sources.

Stage 5 – Cloud Synchronization and External Evidence Correlation
Recognizing that many Android devices automatically synchronize data with cloud services, the final stage outlines procedures for validating and augmenting on‑device evidence with cloud‑based artifacts. The authors detail how to retrieve OAuth tokens, Google Services Framework logs, and backup files (Google Takeout, .ab backups) to reconstruct deleted or overwritten data. They provide guidance on requesting data from service providers under legal process and on verifying the integrity of cloud‑derived evidence using hash comparisons.

Chain‑of‑Custody and Legal Considerations
Throughout the workflow, the paper stresses the creation of a robust chain‑of‑custody: generating SHA‑256 hashes for every image and extracted file, documenting acquisition commands, and maintaining a tamper‑evident log. It discusses jurisdictional issues such as the legality of rooting a device without user consent, the impact of data protection regulations (e.g., GDPR, CCPA), and the necessity of obtaining appropriate warrants before performing invasive techniques.

Limitations and Future Directions
The authors acknowledge that rapid OS updates and manufacturer‑specific security enhancements continually erode the effectiveness of existing tools. They propose future research in three areas: (1) automated metadata correlation using machine‑learning classifiers to flag anomalous activity, (2) development of modular, open‑source acquisition frameworks that can be quickly adapted to new Android releases, and (3) alignment of the methodology with emerging international standards (ISO/IEC 27037, NIST SP 800‑101).

In conclusion, the paper delivers a detailed, step‑by‑step forensic methodology that balances technical thoroughness with legal defensibility. By abstracting the process from device‑specific quirks and providing concrete command‑line examples, scripts, and tool recommendations, it equips practitioners with a repeatable, scalable approach to collect, preserve, and analyze Android evidence in a manner that is both scientifically sound and admissible in court.
