Two Challenges of Stealthy Hypervisors Detection: Time Cheating and Data Fluctuations

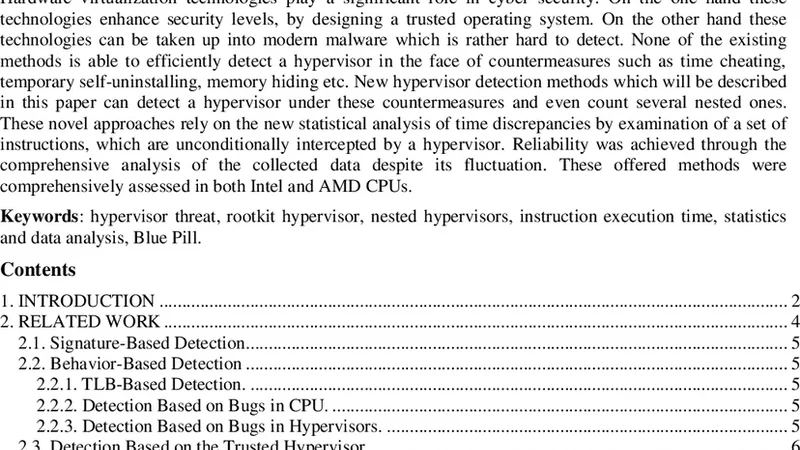

Hardware virtualization technologies play a significant role in cyber security. On the one hand these technologies enhance security levels, by designing a trusted operating system. On the other hand these technologies can be taken up into modern malware which is rather hard to detect. None of the existing methods is able to efficiently detect a hypervisor in the face of countermeasures such as time cheating, temporary self uninstalling, memory hiding etc. New hypervisor detection methods which will be described in this paper can detect a hypervisor under these countermeasures and even count several nested ones. These novel approaches rely on the new statistical analysis of time discrepancies by examination of a set of instructions, which are unconditionally intercepted by a hypervisor. Reliability was achieved through the comprehensive analysis of the collected data despite its fluctuation. These offered methods were comprehensively assessed in both Intel and AMD CPUs.

💡 Research Summary

The paper addresses a pressing problem in modern cybersecurity: the detection of malicious hypervisors that employ sophisticated counter‑measures to evade existing detection techniques. While hardware virtualization can be leveraged to build trusted execution environments, the same technology can be abused by advanced malware to create “stealthy” hypervisors that are difficult to spot. The authors identify two fundamental challenges that render most current detection methods ineffective: (1) time cheating, where the hypervisor manipulates timing sources such as the Time Stamp Counter (TSC) or inserts artificial delays in VM‑exit handling to mask its presence, and (2) data fluctuations, which arise from inherent variability in CPU temperature, power‑management states, scheduler nondeterminism, and other hardware‑level noise, causing measured execution times of the same instruction to vary widely.

To overcome these obstacles, the authors propose a novel statistical detection framework that relies on a set of instructions that are unconditionally intercepted by any hypervisor. The chosen instruction set includes CPUID, RDTSC, and MOV to control registers (e.g., CR3), all of which trigger a VM‑exit regardless of the hypervisor’s configuration. By executing these instructions repeatedly, the system collects a large sample of execution‑time measurements. Raw timings are then processed through a multi‑stage pipeline: (i) histogram‑based density estimation to capture the overall distribution, (ii) moving‑average filtering to smooth short‑term jitter, and (iii) outlier removal using the Inter‑Quartile Range (IQR) method.

The processed data are fed into a Bayesian hypothesis‑testing engine. Two competing hypotheses are defined: H0 (no hypervisor) and H1 (hypervisor present). Prior probabilities are derived from system‑specific information (CPU model, known virtualization usage, historical detection data). For each hypothesis, a likelihood function is constructed based on the expected timing distribution—H0 assumes a narrow distribution centered on native execution latency, while H1 incorporates an additional overhead term that reflects the unavoidable VM‑exit latency. The posterior probability of H1 is computed as

 P(H1|data) =
