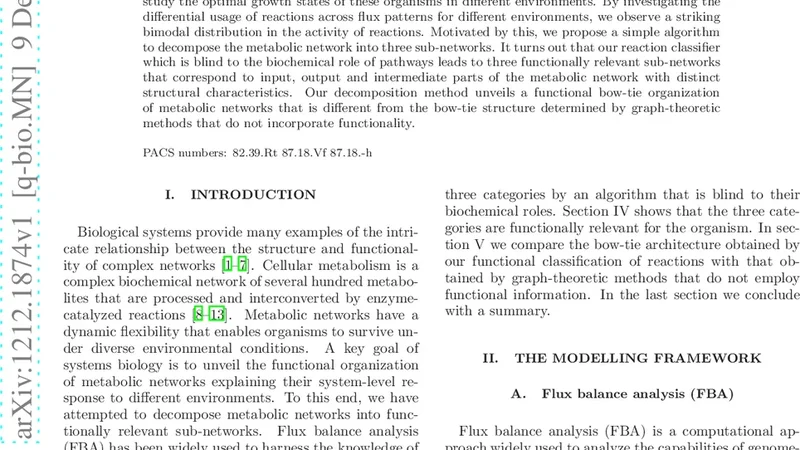

Flux-based classification of reactions reveals a functional bow-tie organization of complex metabolic networks

Unraveling the structure of complex biological networks and relating it to their functional role is an important task in systems biology. Here we attempt to characterize the functional organization of the large-scale metabolic networks of three microorganisms. We apply flux balance analysis to study the optimal growth states of these organisms in different environments. By investigating the differential usage of reactions across flux patterns for different environments, we observe a striking bimodal distribution in the activity of reactions. Motivated by this, we propose a simple algorithm to decompose the metabolic network into three sub-networks. It turns out that our reaction classifier which is blind to the biochemical role of pathways leads to three functionally relevant sub-networks that correspond to input, output and intermediate parts of the metabolic network with distinct structural characteristics. Our decomposition method unveils a functional bow-tie organization of metabolic networks that is different from the bow-tie structure determined by graph-theoretic methods that do not incorporate functionality.

💡 Research Summary

This study tackles the long‑standing challenge of linking the structural organization of large‑scale metabolic networks to their functional roles. Using genome‑scale metabolic reconstructions for three representative microorganisms (a bacterium, a yeast, and a methanogenic archaeon), the authors performed flux balance analysis (FBA) under a wide array of growth conditions that varied carbon, nitrogen, electron donors, and oxygen availability. For each condition, an optimal growth flux distribution was computed, and every reaction was classified as active (non‑zero flux) or inactive (zero flux). By aggregating these binary activity profiles across all environments, the authors discovered a striking bimodal distribution: a set of reactions that are active in virtually every condition and a set that is active only in a subset of conditions. This observation suggested that the metabolic network could be naturally partitioned into three functional zones.

To formalize this intuition, the authors introduced a simple, threshold‑free algorithm. Reactions that are active in all simulated environments are assigned to an “Input” sub‑network, those that are never active to an “Output” sub‑network, and the remaining reactions to an “Intermediate” sub‑network. Importantly, the classification ignores any prior biochemical annotation; it relies solely on the observed flux usage. The resulting partitions map onto intuitive functional roles: the Input sub‑network comprises transporters and early catabolic steps that bring external nutrients into the cell; the Output sub‑network contains reactions directly responsible for biomass precursor synthesis, ATP generation, and the production of end‑products; the Intermediate sub‑network bridges the two, encompassing a dense web of conversion, regulation, and branching pathways.

Structural analysis of the three partitions revealed distinct topological signatures. Both Input and Output modules exhibit high average degree and short average shortest‑path lengths, reflecting a tightly knit core that efficiently channels metabolites. In contrast, the Intermediate module shows lower connectivity but a higher clustering coefficient, indicating a richly interconnected mesh of alternative routes and feedback loops. These differences align with their functional interpretations: the Input module must be robust and readily adaptable to environmental changes, the Output module must be efficient for biomass assembly, and the Intermediate module provides flexibility and regulation.

The authors then compared their flux‑based decomposition with the classic graph‑theoretic “bow‑tie” model, which partitions a directed network into Input, Core, and Output based solely on connectivity. While the traditional model identifies a densely connected core, it does not account for whether reactions actually carry flux under physiological conditions. Consequently, many reactions placed in the core may be dormant in certain environments, and some peripheral reactions may be essential for growth. The flux‑based approach, by contrast, yields a functional bow‑tie that directly reflects material flow, offering a more biologically meaningful partition.

In summary, the paper demonstrates that metabolic networks of diverse microorganisms can be decomposed into three functionally coherent sub‑networks—Input, Intermediate, and Output—by exploiting the bimodal distribution of reaction activity across optimal growth states. This functional bow‑tie organization is distinct from, and arguably more informative than, the purely topological bow‑tie identified by previous graph‑theoretic methods. The methodology is straightforward, requires no prior pathway annotation, and can be applied to any constraint‑based model. It opens avenues for systematic identification of essential reactions, targeted metabolic engineering, and deeper insight into how organisms rewire their metabolism in response to environmental perturbations.
