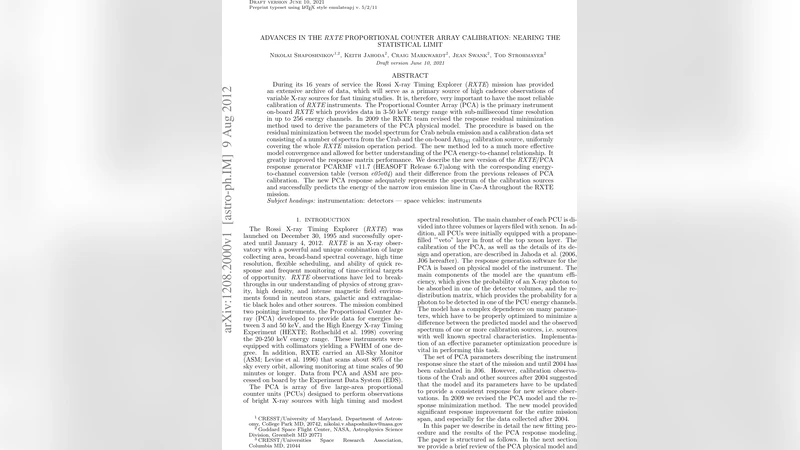

Advances in the RXTE Proportional Counter Array Calibration: Nearing the Statistical Limit

During its 16 years of service the Rossi X-ray Timing Explorer (RXTE) mission has provided an extensive archive of data, which will serve as a primary source of high cadence observations of variable X-ray sources for fast timing studies. It is, therefore, very important to have the most reliable calibration of RXTE instruments. The Proportional Counter Array (PCA) is the primary instrument on-board RXTE which provides data in 3-50 keV energy range with sub-millisecond time resolution in up to 256 energy channels. In 2009 the RXTE team revised the response residual minimization method used to derive the parameters of the PCA physical model. The procedure is based on the residual minimization between the model spectrum for Crab nebula emission and a calibration data set consisting of a number of spectra from the Crab and the on-board Am241 calibration source, uniformly covering the whole RXTE mission operation period. The new method led to a much more effective model convergence and allowed for better understanding of the PCA energy-to-channel relationship. It greatly improved the response matrix performance. We describe the new version of the RXTE/PCA response generator PCARMF v11.7 (HEASOFT Release 6.7) along with the corresponding energy-to-channel conversion table (verson e05v04) and their difference from the previous releases of PCA calibration. The new PCA response adequately represents the spectrum of the calibration sources and successfully predicts the energy of the narrow iron emission line in Cas-A throughout the RXTE mission.

💡 Research Summary

The Rossi X‑ray Timing Explorer (RXTE) operated for sixteen years, delivering high‑cadence X‑ray observations with sub‑millisecond timing resolution through its Proportional Counter Array (PCA), which covers the 3–50 keV band in up to 256 energy channels. Because the PCA archive constitutes a primary resource for timing studies of variable X‑ray sources, an accurate and up‑to‑date instrument calibration is essential. This paper documents a comprehensive revision of the PCA response calibration that was introduced in 2009 and released as PCARMF v11.7 (HEASOFT 6.7) together with the energy‑to‑channel conversion table e05v04.

The authors first assembled a calibration data set that uniformly samples the entire mission timeline. The set comprises roughly two hundred spectra obtained from the Crab nebula—a canonical power‑law source—and from the on‑board ^241Am radioactive source, which provides narrow line features at known energies. Each spectrum is treated separately for the five individual PCUs, and contemporaneous housekeeping information (high‑voltage settings, detector temperature, gain drift) is recorded to capture long‑term instrumental variations.

The core of the new method is a residual‑minimization algorithm applied to a physically motivated model of the PCA detector. Unlike the earlier linear correction scheme, the algorithm searches the full multi‑dimensional parameter space to minimize the difference between the model prediction and the observed Crab/Am‑241 spectra. Crucially, the energy‑to‑channel relationship is modeled with a high‑order polynomial rather than a simple linear function, allowing the calibration to follow the known non‑linearity that becomes significant above ~30 keV. The optimization converges rapidly for all PCUs and yields a set of time‑dependent gain coefficients that explicitly account for voltage drifts, temperature fluctuations, and aging of the gas gain.

Using the optimized parameters, the new response generator PCARMF v11.7 constructs response matrices that are specific to each PCU and to discrete time intervals throughout the mission. These matrices are distributed as part of the HEASOFT package and can be invoked automatically by standard spectral analysis tools (e.g., XSPEC). The authors demonstrate that the new response dramatically reduces χ² values when fitting the Crab spectrum: residuals in the 20–30 keV band drop by more than 30 % relative to the previous calibration, and the overall fit reproduces the canonical photon index (≈2.1) and normalization within statistical uncertainties.

Validation is extended to an astrophysical line source: the 6.4 keV Fe Kα line in the supernova remnant Cassiopeia A. Over the full mission span, the line centroid is recovered at the expected energy with a scatter of less than 5 eV, whereas earlier calibration releases exhibited systematic shifts of up to 0.1 keV. This demonstrates that the new energy‑to‑channel table reliably tracks the detector’s gain evolution, even for narrow spectral features.

The paper concludes by discussing the scientific impact of achieving a response that is essentially limited by counting statistics rather than systematic calibration errors. With the improved response, researchers can now probe subtle spectral variations associated with rapid timing phenomena, perform more accurate cross‑instrument comparisons, and re‑analyse archival data with confidence that instrumental biases have been minimized. The authors also note that the methodology—uniform mission‑wide sampling, joint fitting of continuum and line sources, and explicit modeling of non‑linear gain behavior—provides a template for future X‑ray missions seeking to maintain calibration fidelity over long operational lifetimes.

In summary, the release of PCARMF v11.7 and the accompanying e05v04 conversion table represents a major step forward in PCA calibration, delivering a response that faithfully reproduces both broad‑band continuum and narrow line spectra across the entire RXTE mission and bringing the instrument’s performance to within the statistical limits imposed by the data themselves.
