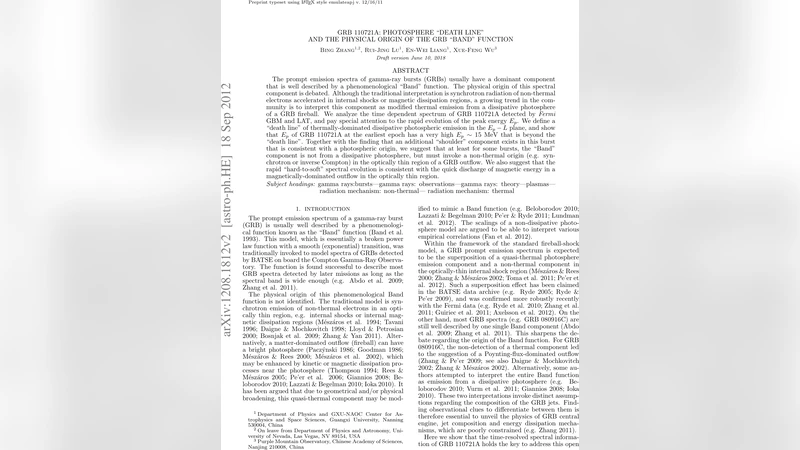

GRB 110721A: photosphere "death line" and the physical origin of the GRB "Band" function

The prompt emission spectra of gamma-ray bursts (GRBs) usually have a dominant component that is well described by a phenomenological “Band” function. The physical origin of this spectral component is debated. Although the traditional interpretation is synchrotron radiation of non-thermal electrons accelerated in internal shocks or magnetic dissipation regions, a growing trend in the community is to interpret this component as modified thermal emission from a dissipative photosphere of a GRB fireball. We analyze the time dependent spectrum of GRB 110721A detected by {\em Fermi} GBM and LAT, and pay special attention to the rapid evolution of the peak energy $E_p$. We define a “death line” of thermally-dominated dissipative photospheric emission in the $E_p - L$ plane, and show that $E_p$ of GRB 110721A at the earliest epoch has a very high $E_p \sim 15$ MeV that is beyond the “death line”. Together with the finding that an additional “shoulder” component exists in this burst that is consistent with a photospheric origin, we suggest that at least for some bursts, the “Band” component is not from a dissipative photosphere, but must invoke a non-thermal origin (e.g. synchrotron or inverse Compton) in the optically thin region of a GRB outflow. We also suggest that the rapid “hard-to-soft” spectral evolution is consistent with the quick discharge of magnetic energy in a magnetically-dominated outflow in the optically thin region.

💡 Research Summary

This paper investigates the physical origin of the dominant “Band” component that characterizes the prompt emission spectra of gamma‑ray bursts (GRBs), focusing on the bright, long‑duration event GRB 110721A observed by the Fermi Gamma‑ray Burst Monitor (GBM) and Large Area Telescope (LAT). Historically, the Band function—two smoothly joined power‑laws—has been interpreted as synchrotron radiation from non‑thermal electrons accelerated in internal shocks or magnetic dissipation regions. In recent years, however, a growing number of researchers have advocated a photospheric origin: the Band spectrum would be a modified thermal (or quasi‑thermal) emission emerging from a dissipative photosphere within the relativistic fireball. The authors set out to test this hypothesis by examining the time‑resolved spectral evolution of GRB 110721A, with particular emphasis on the rapid shift of the spectral peak energy (Eₚ).

First, the authors construct a theoretical “death line” in the Eₚ–L (peak energy versus isotropic luminosity) plane that delineates the maximum Eₚ attainable by a thermally‑dominated, dissipative photosphere. Starting from the standard fireball picture, they relate the photospheric radius Rₚₕ, the bulk Lorentz factor Γ, and the comoving temperature T′ to the observed peak energy via Eₚ ≈ 2.7 k T′ Γ/(1+z). By expressing Γ and T′ in terms of the initial fireball luminosity L₀ and the dimensionless entropy η, they obtain a simple scaling Eₚ ∝ L^{1/4} (for a given η). This scaling defines a straight line in the log Eₚ–log L diagram; any purely photospheric emission must lie below this line, otherwise the required temperature would exceed the physical limits of a radiation‑dominated outflow.

Applying this framework to GRB 110721A, the authors perform a fine‑grained spectral analysis in intervals as short as 0.1 s. In the earliest time bin (0–0.5 s) the measured peak energy reaches an astonishing Eₚ ≈ 15 MeV while the isotropic luminosity is L ≈ 10⁵³ erg s⁻¹. Plotting this point on the Eₚ–L diagram shows it lies well above the photospheric death line. Consequently, a purely photospheric origin cannot account for such a high Eₚ; the emission must involve an optically thin region where non‑thermal processes dominate.

The authors then explore whether a multi‑component spectral model can reconcile the data. They find that a two‑component fit—(i) a standard Band function extending to high energies, and (ii) an additional low‑energy “shoulder” component peaking near a few hundred keV—provides a statistically superior description. The shoulder’s spectral shape and temperature are consistent with a modified blackbody emerging from the photosphere, while the Band component exhibits the hard‑to‑soft evolution typical of synchrotron or inverse‑Compton radiation in a magnetically dominated outflow. The rapid decline of Eₚ from ≈15 MeV to a few hundred keV within a second aligns with a scenario where magnetic energy is quickly dissipated above the photosphere, accelerating electrons to relativistic energies and producing synchrotron emission that softens as the magnetic field decays.

From these findings the authors draw several key conclusions. (1) The early, extremely high Eₚ of GRB 110721A exceeds the theoretical limit for a thermally‑dominated photosphere, demonstrating that the dominant Band component cannot be solely photospheric. (2) The presence of a distinct low‑energy shoulder that matches photospheric expectations indicates that photospheric emission can coexist with non‑thermal radiation, but it does not dominate the Band spectrum. (3) The observed hard‑to‑soft evolution is naturally explained by rapid magnetic energy release in a magnetically‑dominated jet, supporting models where the prompt emission originates in the optically thin region via synchrotron or inverse‑Compton processes. Overall, the work argues that while photospheric contributions are present in many bursts, they cannot universally account for the Band component; a hybrid model incorporating both photospheric and non‑thermal mechanisms is required to capture the full diversity of GRB prompt spectra. This study thus provides a robust observational test for photospheric models and underscores the importance of time‑resolved spectroscopy in disentangling the complex physics of GRB jets.
