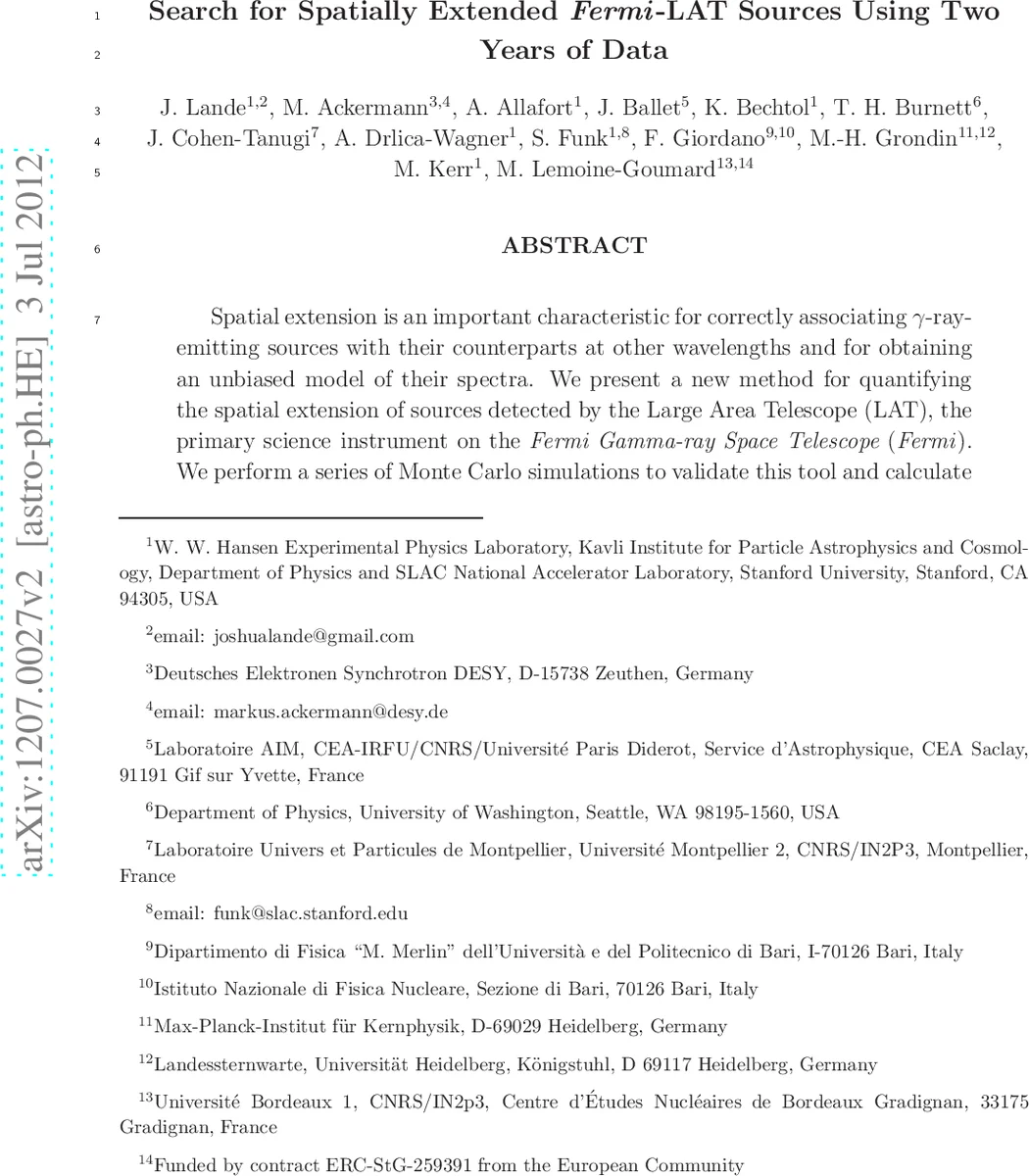

Search for Spatially Extended Fermi-LAT Sources Using Two Years of Data

Spatial extension is an important characteristic for correctly associating gamma-ray-emitting sources with their counterparts at other wavelengths and for obtaining an unbiased model of their spectra. We present a new method for quantifying the spatial extension of sources detected by the Large Area Telescope (LAT), the primary science instrument on the Fermi Gamma-ray Space Telescope (Fermi). We perform a series of Monte Carlo simulations to validate this tool and calculate the LAT threshold for detecting the spatial extension of sources. We then test all sources in the second Fermi-LAT catalog (2FGL) for extension. We report the detection of seven new spatially extended sources.

💡 Research Summary

This paper presents a systematic search for spatially extended gamma‑ray sources using two years of all‑sky observations from the Fermi Large Area Telescope (LAT). Recognizing that the LAT point‑spread function (PSF) is comparable in size to the expected angular extensions of many Galactic objects (supernova remnants, pulsar wind nebulae, molecular clouds, etc.), the authors develop a dedicated maximum‑likelihood analysis framework built on the “pointlike” software package. The method simultaneously fits source position, spectral parameters, and spatial extension, allowing the source morphology to be modeled either as a two‑dimensional Gaussian or a uniform disk. Extension significance is quantified by the test statistic TS_ext = 2 log(L_ext/L_ps), where L_ext and L_ps are the likelihoods for the extended and point‑source hypotheses, respectively.

A comprehensive suite of Monte‑Carlo simulations is performed to validate the statistical behavior of TS_ext, to determine the false‑positive rate, and to establish the LAT’s detection threshold for extensions as a function of source flux and spectral hardness. The simulations show that TS_ext ≥ 16 corresponds to a ≈4σ detection with a false‑positive probability below 10⁻⁴. The authors also explore the ability of the LAT to distinguish a truly extended source from two closely spaced point sources, demonstrating that the TS_ext metric reliably separates the two scenarios for typical source intensities.

To ensure robustness, the analysis cross‑checks results with the standard LAT likelihood tool “gtlike”. Positions and spectra are first obtained with pointlike, then refined with gtlike; both tools must agree on the extension significance before a source is classified as extended. Systematic uncertainties arising from the instrument response functions (IRFs) and the Galactic diffuse emission model are quantified by varying these inputs and propagating the resulting changes into the extension error budget. The authors define the 1σ uncertainty on the extension radius as the change in the log‑likelihood of 0.5 from its maximum, following standard likelihood theory.

Applying this pipeline to all 1,873 sources listed in the 2FGL catalog, the authors recover the twelve previously known extended sources (including several SNRs and PWNe) and identify seven new spatially extended sources that were previously modeled as point‑like. These newly discovered extended objects have angular radii ranging from ~0.2° to ~0.5°, fluxes above ~10⁻⁹ ph cm⁻² s⁻¹ (E > 1 GeV), and spectral indices between –2.0 and –2.5. The paper provides detailed spectral and morphological parameters for each new source, discusses their likely astrophysical nature (most are consistent with SNR or PWN counterparts at other wavelengths), and highlights the improvement in spectral characterization when the correct extended morphology is used (point‑source fits tend to artificially soften spectra).

The study also revisits two sources previously listed as point‑like in 2FGL but now shown to be better described as extended; this re‑classification resolves residuals in the surrounding region and reduces contamination of nearby sources, especially in the crowded Galactic plane. Finally, the authors extrapolate the LAT’s future sensitivity, suggesting that with longer exposure the instrument will be capable of detecting extensions down to ~0.1°, opening the possibility of probing dark‑matter subhalos or finer structures in known extended objects. This work thus provides a rigorous statistical toolset for extension analysis, establishes the LAT’s current capabilities, and sets the stage for deeper, more detailed morphological studies of the GeV gamma‑ray sky.
