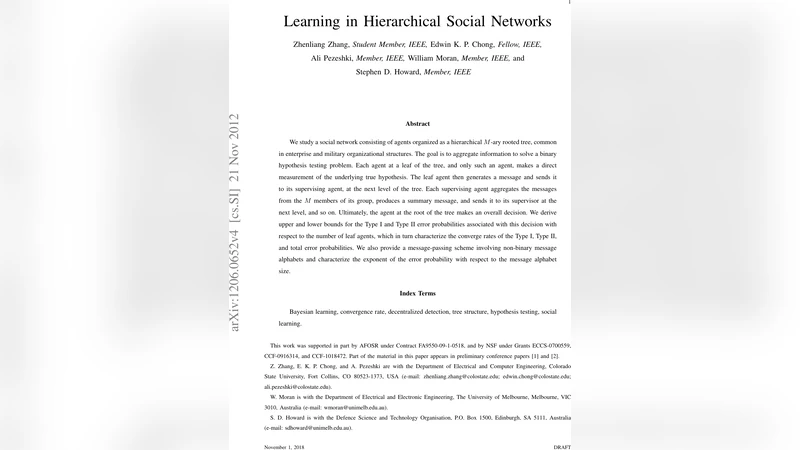

Learning in Hierarchical Social Networks

We study a social network consisting of agents organized as a hierarchical M-ary rooted tree, common in enterprise and military organizational structures. The goal is to aggregate information to solve a binary hypothesis testing problem. Each agent at a leaf of the tree, and only such an agent, makes a direct measurement of the underlying true hypothesis. The leaf agent then makes a decision and sends it to its supervising agent, at the next level of the tree. Each supervising agent aggregates the decisions from the M members of its group, produces a summary message, and sends it to its supervisor at the next level, and so on. Ultimately, the agent at the root of the tree makes an overall decision. We derive upper and lower bounds for the Type I and II error probabilities associated with this decision with respect to the number of leaf agents, which in turn characterize the converge rates of the Type I, Type II, and total error probabilities. We also provide a message-passing scheme involving non-binary message alphabets and characterize the exponent of the error probability with respect to the message alphabet size.

💡 Research Summary

The paper investigates a hierarchical M‑ary rooted tree network—a structure common in corporate and military organizations—and studies how information can be aggregated to solve a binary hypothesis‑testing problem. Only the leaf agents obtain direct measurements of the unknown hypothesis; each leaf forms a local binary decision and forwards it to its parent. Every internal node receives the decisions of its M children, aggregates them according to a prescribed rule (e.g., majority, OR/AND, or a Bayes‑optimal rule), and passes a summary message upward. The process repeats until the root node makes the final global decision.

The authors first formalize the statistical model. Let the true hypothesis be H∈{H0,H1}. Each leaf i observes Xi and produces a binary decision Yi∈{0,1} with Type‑I error pα=Pr(Yi=1|H0) and Type‑II error pβ=Pr(Yi=0|H1). The tree has depth D, branching factor M, and thus N=M^D leaf nodes. For an internal node at level ℓ, the output Zℓ is a deterministic function of its M inputs; the paper derives recursive expressions for the distribution of Zℓ under each hypothesis.

Using these recursions, the authors obtain explicit upper and lower bounds on the Type‑I error αN and Type‑II error βN of the root decision as functions of N. Both bounds have the exponential form C·exp(−c·N^γ), where the exponent γ=logM(⌊M/2⌋+1)/D depends on the tree’s branching factor and depth, while the constants C and c are determined by the leaf‑level error probabilities and the chosen aggregation rule. Consequently, as the number of leaves grows, the error probabilities decay exponentially, but the decay rate slows when the tree becomes deeper (larger D). The total error probability Pe(N)=αN+βN inherits the same asymptotic behavior, providing a clear characterization of convergence speed for hierarchical aggregation.

A second major contribution is the extension to non‑binary message alphabets. If each node may transmit an L‑ary symbol instead of a single bit, the amount of information conveyed upward increases. The paper shows that the error exponent is multiplied by L, yielding Pe^{(L)}(N) ≤ C·exp(−c·L·N^γ). This result quantifies the trade‑off between communication bandwidth (larger L) and decision accuracy, and it demonstrates that modest increases in alphabet size can dramatically accelerate error decay.

The theoretical findings are corroborated by simulations on trees with M=3 and various depths. Different aggregation rules and alphabet sizes (L=2,4,8) are tested, confirming that the empirical error curves lie tightly between the derived bounds and that larger alphabets achieve substantially lower error rates for the same number of leaves.

In conclusion, the paper provides a rigorous analysis of distributed binary hypothesis testing on hierarchical networks. By delivering tight exponential bounds on Type‑I, Type‑II, and total error probabilities, and by elucidating how the branching factor, depth, and message alphabet size influence these bounds, the work offers practical design guidelines for engineers building reliable decision‑making systems in hierarchical organizations. Future research directions suggested include asynchronous message passing, irregular (non‑full) trees, and extensions to multi‑hypothesis scenarios.
