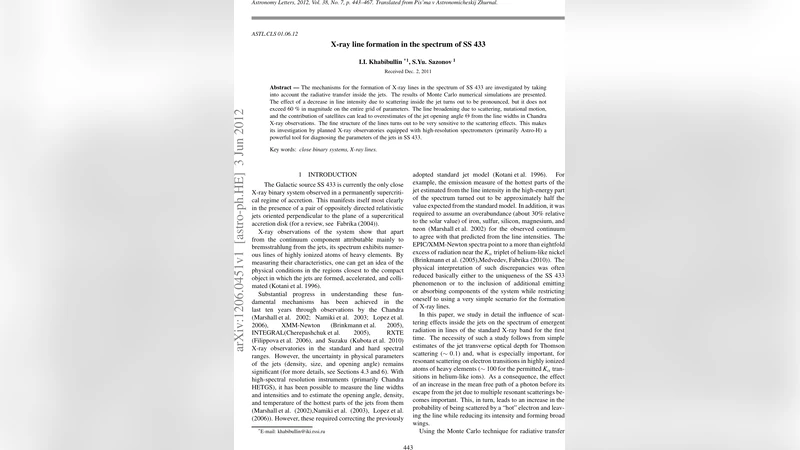

X-ray line formation in the spectrum of SS 433
The mechanisms for the formation of X-ray lines in the spectrum of SS 433 are investigated by taking into account the radiative transfer inside the jets. The results of Monte Carlo numerical simulations are presented. The effect of a decrease in line intensity due to scattering inside the jet turns out to be pronounced, but it does not exceed 60% in magnitude on the entire grid of parameters. The line broadening due to scattering, nutational motion, and the contribution of satellites can lead to overestimates of the jet opening angle $\Theta$ from the line widths in Chandra X-ray observations. The fine structure of the lines turns out to be very sensitive to the scattering effects. This makes its investigation by planned X-ray observatories equipped with high-resolution spectrometers (primarily Astro-H) a powerful tool for diagnosing the parameters of the jets in SS 433.
💡 Research Summary
The paper investigates how X‑ray emission lines are formed in the jets of the microquasar SS 433, explicitly accounting for radiative transfer within the outflows. Using a three‑dimensional Monte Carlo code, the authors simulate photon production, Thomson/Compton scattering on free electrons, and line absorption/re‑emission for a wide grid of jet parameters: opening angle (Θ), base temperature (T₀), electron density (nₑ), and velocity gradient. A total of 125 model configurations are explored.
The simulations reveal two dominant effects that modify the observable line properties. First, internal scattering reduces the net line intensity by 20 %–60 % across the entire parameter space. The reduction is strongest for narrow jets (small Θ) with high electron densities, because photons undergo multiple scatterings before escaping, transferring a substantial fraction of their energy to the continuum. Second, the apparent line widths are broadened beyond pure thermal and bulk Doppler contributions. Elastic scattering randomizes photon directions, adding a scattering‑induced Doppler component. In addition, nutational (precessional) motion of the jet introduces periodic line‑of‑sight velocity variations, further widening the profiles. Finally, satellite lines from higher‑order transitions (e.g., Fe XXV Kβ, Fe XXVI Lyβ) blend with the primary lines, producing asymmetric or multi‑peaked shapes.
If these effects are ignored, the common practice of inferring the jet opening angle directly from the measured full‑width at half‑maximum (FWHM) of Chandra HETGS lines leads to systematic overestimates of Θ. The authors quantify this bias and demonstrate that the line broadening can mimic opening angles up to twice the true value in extreme cases.
A key insight is that the fine structure of strong lines—particularly the relative strengths of the central component and its satellites—is highly sensitive to the amount of scattering. By varying the scattering optical depth in the simulations, the central peak’s intensity diminishes while satellite features become comparatively more prominent. This behavior provides a diagnostic handle: high‑resolution spectroscopy capable of resolving sub‑eV features can directly measure the scattering depth, electron density, and temperature gradients inside the jet.
The paper argues that forthcoming X‑ray observatories equipped with micro‑calorimeter spectrometers (e.g., the now‑launched Hitomi/Astro‑H, XRISM, and future missions like Athena) will have the required energy resolution (ΔE ≈ 5 eV or better) to detect these subtle line shape variations. Such observations would enable a model‑independent reconstruction of jet physical conditions, offering a powerful tool not only for SS 433 but also for other systems with relativistic, baryonic outflows.
In summary, the study provides a comprehensive Monte Carlo treatment of radiative transfer in SS 433’s jets, quantifies the impact of internal scattering on line intensity and width, highlights the risk of mis‑interpreting line broadening as purely geometric, and points to high‑resolution X‑ray spectroscopy as the path forward for precise jet diagnostics.
