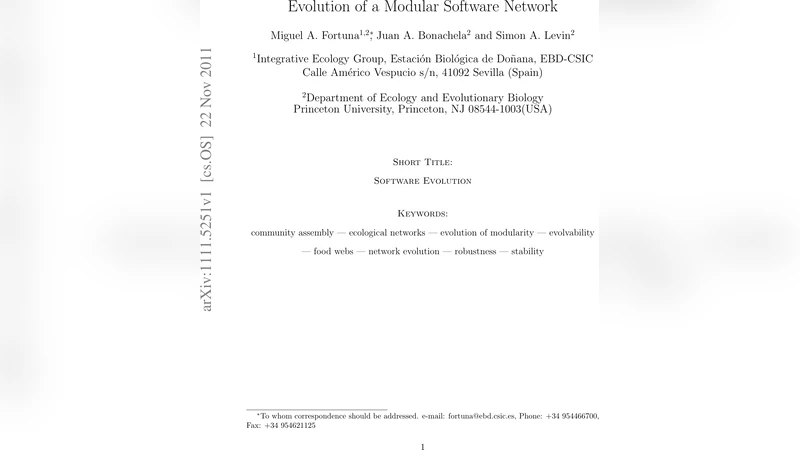

Evolution of a Modular Software Network

“Evolution behaves like a tinkerer” (Francois Jacob, Science, 1977). Software systems provide a unique opportunity to understand biological processes using concepts from network theory. The Debian GNU/Linux operating system allows us to explore the evolution of a complex network in a novel way. The modular design detected during its growth is based on the reuse of existing code in order to minimize costs during programming. The increase of modularity experienced by the system over time has not counterbalanced the increase in incompatibilities between software packages within modules. This negative effect is far from being a failure of design. A random process of package installation shows that the higher the modularity the larger the fraction of packages working properly in a local computer. The decrease in the relative number of conflicts between packages from different modules avoids a failure in the functionality of one package spreading throughout the entire system. Some potential analogies with the evolutionary and ecological processes determining the structure of ecological networks of interacting species are discussed.

💡 Research Summary

The paper investigates the evolution of the Debian GNU/Linux operating system by treating its software packages and their inter‑package relationships as a complex network. Using data from the first ten major Debian releases (spanning 1996–2005), the authors compile the full set of binary i386 packages together with two types of directed links: dependencies (package i requires package j) and conflicts (package i cannot coexist with package j). They first show that the total number of packages, dependencies, and conflicts all increase exponentially over time (p < 0.001 for each series), reflecting the simultaneous growth of functionality and incompatibility as the system expands.

A detailed topological analysis reveals distinct degree‑distribution patterns. Outgoing‑dependency (the number of packages a given package needs) follows an exponential distribution, indicating that most packages require only a modest, bounded set of other packages. In contrast, incoming‑dependency (the number of packages that need a given package) follows a power‑law (scale‑free) distribution, meaning a few “core” packages are required by a very large fraction of the system. This heterogeneity mirrors ecological networks where keystone species support many others.

Modularity is quantified using the Newman–Girvan modularity metric, transformed into a z‑score for cross‑release comparison. Modularity rises sharply during the early releases (z‑score from ~9.7 to ~135.7) and then plateaus around a mean of 44.5 ± 11.7. While the fraction of dependencies that lie within modules stays roughly constant (~0.68), the fraction of conflicts inside modules grows linearly from 0.50 to 0.74. Simultaneously, the proportion of conflicts between modules declines, suggesting that the emerging modular architecture isolates incompatibilities, preventing them from propagating across the whole system.

To assess functional consequences, the authors simulate a random installation process on a fresh computer. The proportion of packages that can be successfully installed declines from 95.7 % to 71.1 % across releases, largely because the absolute number of conflicts rises. However, when the same network is randomly rewired to destroy its modular structure, the installation success rate drops dramatically. In almost every release, the original modular network yields a significantly higher installation fraction than the rewired counterpart (p < 0.01, except for releases 2.0 and 3.0). The modularity‑related advantage, measured as a z‑score, remains modest until release 3.0 (average ≈ 1.7) and then jumps to values between 17.9 and 30.1 for later releases. Thus, modularity becomes a decisive factor for robustness only after the system reaches a certain size and complexity.

The discussion draws explicit analogies to ecological and evolutionary processes. The creation of new packages and deprecation of old ones correspond to macro‑evolutionary speciation and extinction events, while the local installation process mirrors community assembly (colonization and local extinction). Dependencies are likened to predator–prey interactions, conflicts to competitive exclusion. The authors argue that modularity in software functions similarly to spatial compartmentalization in ecosystems: it allows high regional species richness (or a large software pool) while limiting the spread of disturbances, thereby reducing the risk of systemic collapse.

In conclusion, the study demonstrates that the Debian system’s growth is governed by a trade‑off between code reuse (which generates a scale‑free dependency backbone) and the accumulation of incompatibilities. The emergence of a modular architecture does not eliminate intra‑module conflicts, but it does confine inter‑module conflicts, thereby enhancing the probability that a random set of packages can be installed and function together. This modular buffering effect becomes especially pronounced in the later releases, even though overall modularity growth slows. The authors suggest that engineered systems like Debian provide a valuable testbed for exploring universal principles that shape both designed and natural complex networks, opening avenues for interdisciplinary research between computer science and biology.
