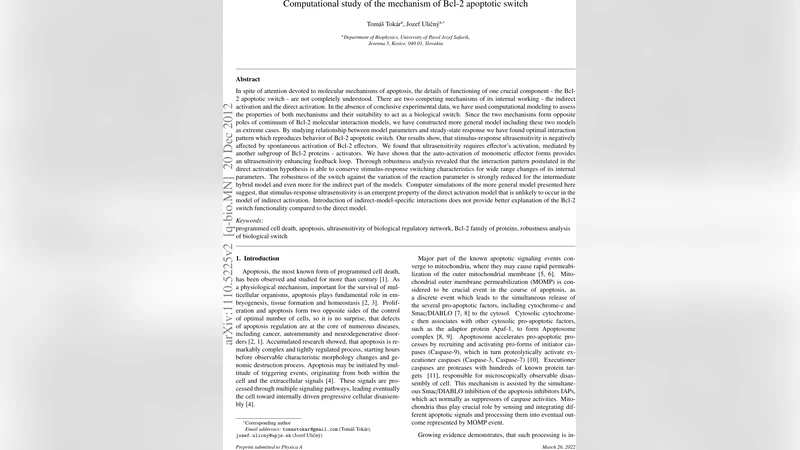

Computational study of the mechanism of Bcl-2 apoptotic switch

Programmed cell death - apoptosis is one of the most studied biological phenomenon of recent years. Apoptotic regulatory network contains several significant control points, including probably the most important one - Bcl–2 apoptotic switch. There are two proposed hypotheses regarding its internal working - the indirect activation and direct activation models. Since these hypotheses form extreme poles of full continuum of intermediate models, we have constructed more general model with these two models as extreme cases. By studying relationship between model parameters and steady-state response ultrasensitivity we have found optimal interaction pattern which reproduces behavior of Bcl-2 apoptotic switch. Our results show, that stimulus-response ultrasensitivity is negatively related to spontaneous activation of Bcl-2 effectors - subgroup of Bcl-2 proteins. We found that ultrasensitivity requires effector’s activation, mediated by another subgroup of Bcl-2 proteins - activators. We have shown that the auto-activation of effectors forms ultrasensitivity enhancing feedback loop, only if mediated by monomers, but not by oligomers. Robustness analysis revealed that interaction pattern proposed by direct activation hypothesis is able to conserve stimulus-response dependence and preserve ultrasensitivity despite large changes of its internal parameters. This ability is strongly reduced as for the intermediate to indirect side of the models. Computer simulation of the more general model presented here suggest, that stimulus-response ultrasensitivity is an emergent property of the direct activation model, that cannot originate within model of indirect activation. Introduction of indirect-model-specific interactions does not provide better explanation of Bcl-2 functioning compared to direct model.

💡 Research Summary

The paper presents a comprehensive computational analysis of the Bcl‑2 family–mediated mitochondrial outer‑membrane permeabilization (MOMP) switch, focusing on the long‑standing debate between the direct activation and indirect activation hypotheses. To capture the essential biology while keeping the model tractable, the authors construct a minimal “hybrid” network that includes three representative species: an anti‑apoptotic Bcl‑2 protein, a pro‑apoptotic effector (Bax), and a BH3‑only activator (Act). An external stimulus E converts inactive Act into its active form Act‑a, mimicking Bid cleavage or other BH3‑only protein activation events. Bcl‑2 can bind both inactive Bax and active Bax‑a, providing two parallel inhibition routes. Act‑a also binds Bcl‑2, forming a reversible neutral complex that can release Bax or Bax‑a through competitive exchange.

Effector activation proceeds via two pathways: a spontaneous conversion of Bax to Bax‑a (rate ks) and a catalyzed conversion mediated by Act‑a (rate ki). By setting ks = 0 the model reduces to a pure direct‑activation scheme; by setting ki = 0 it reduces to a pure indirect‑activation scheme. Once activated, Bax‑a monomers oligomerize stepwise into MAC channels; the authors implement reactions that add one monomer at a time, with a functional channel defined at six monomers, consistent with experimental observations. Oligomer growth is capped at twenty units, as larger assemblies do not qualitatively affect the outcomes.

All reactions follow mass‑action kinetics. Initial concentrations are drawn from published measurements (hundreds of nM for Bcl‑2 and Bax, low‑nanomolar for BH3‑only proteins). Binding rates are derived from reported dissociation constants, while degradation is modeled with a uniform half‑life of 180 min and zero‑order synthesis to maintain steady‑state levels. The stimulus intensity E is varied from 10⁻⁴ to 10⁻¹ min⁻¹, approximating physiological ranges of Caspase‑8‑driven Bid activation.

The authors assess ultrasensitivity—a hallmark of binary switches—using the relative amplification coefficient n_R introduced by Legewie et al. Values of n_R > 1 indicate a response steeper than the Michaelis–Menten hyperbola. Parameter sweeps reveal that high ki (strong activator‑driven conversion) combined with low ks (minimal spontaneous activation) yields n_R well above unity, establishing that the direct activation route endows the system with ultrasensitivity. In contrast, models dominated by spontaneous activation (high ks, low ki) fail to achieve n_R > 1, indicating that the indirect mechanism alone cannot generate the required steep response.

Robustness is examined by perturbing each kinetic parameter over a ten‑fold range and monitoring whether ultrasensitivity persists. The direct‑activation configuration maintains n_R > 1 across most perturbations, especially those affecting Bcl‑2/Bax binding affinities, demonstrating strong resilience. The indirect configuration, however, loses ultrasensitivity under modest changes to the same parameters, underscoring its fragility.

A further analysis introduces auto‑activation of Bax‑a monomers (Bax‑a catalyzes conversion of Bax to Bax‑a). When this feedback operates at the monomer level, ultrasensitivity is amplified, whereas oligomer‑mediated auto‑activation does not produce the same effect. This finding highlights the importance of a positive feedback loop that operates before oligomerization.

Overall, the hybrid model serves as a continuous bridge between the two extreme hypotheses, allowing the authors to map regions of parameter space where the switch exhibits both high ultrasensitivity and robustness. The results strongly favor the direct activation paradigm as the mechanistic basis of the Bcl‑2 apoptotic switch, while showing that adding indirect‑specific interactions does not improve explanatory power. The study provides a clear computational framework for future experimental design aimed at dissecting Bcl‑2 family dynamics and for extending the model to incorporate additional regulatory layers such as caspase feedback or mitochondrial dynamics.
