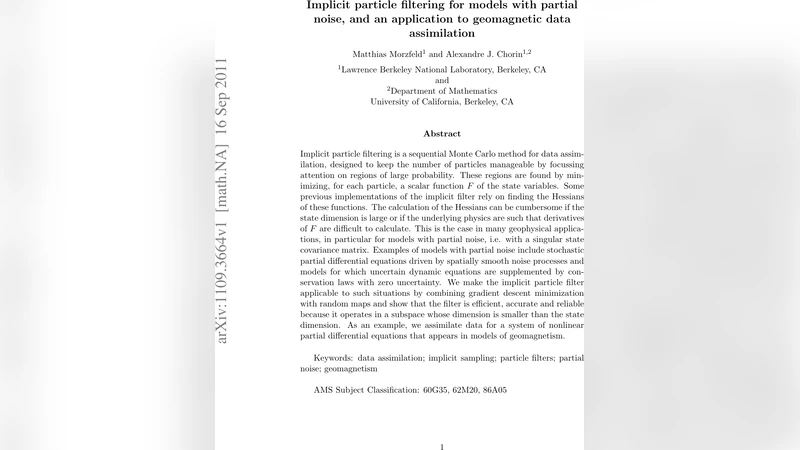

Implicit particle filtering for models with partial noise, and an application to geomagnetic data assimilation

Implicit particle filtering is a sequential Monte Carlo method for data assim- ilation, designed to keep the number of particles manageable by focussing attention on regions of large probability. These regions are found by min- imizing, for each particle, a scalar function F of the state variables. Some previous implementations of the implicit filter rely on finding the Hessians of these functions. The calculation of the Hessians can be cumbersome if the state dimension is large or if the underlying physics are such that derivatives of F are difficult to calculate. This is the case in many geophysical applica- tions, in particular for models with partial noise, i.e. with a singular state covariance matrix. Examples of models with partial noise include stochastic partial differential equations driven by spatially smooth noise processes and models for which uncertain dynamic equations are supplemented by con- servation laws with zero uncertainty. We make the implicit particle filter applicable to such situations by combining gradient descent minimization with random maps and show that the filter is efficient, accurate and reliable because it operates in a subspace whose dimension is smaller than the state dimension. As an example, we assimilate data for a system of nonlinear partial differential equations that appears in models of geomagnetism.

💡 Research Summary

This paper addresses a fundamental challenge in sequential data assimilation for high‑dimensional dynamical systems whose state‑space covariance matrix is singular or ill‑conditioned—a situation the authors refer to as “partial noise.” Traditional particle filters, such as the bootstrap (SIR) filter, suffer from weight degeneracy in high dimensions because particles are drawn from the prior without using the latest observations. Implicit particle filters mitigate this problem by concentrating particles in regions of high posterior probability, but existing implementations rely on evaluating Hessians of a scalar cost function for each particle. Computing Hessians is prohibitive when the state dimension is large or when the model equations make analytical derivatives difficult, as is typical for partial‑noise models (e.g., stochastic partial differential equations driven by smooth spatial noise or deterministic dynamics supplemented by conservation laws with zero uncertainty).

The authors propose a new implementation of the implicit particle filter that eliminates the need for Hessians. Their approach combines gradient‑descent minimization of the scalar function F with a random‑map transformation. For each particle, the function F encodes the model transition density and the observation likelihood. Instead of a Newton step that requires the Hessian, a simple line‑search gradient descent finds the minimizer μ and the minimal value φ. A random map of the form X = μ + λ L η is then used, where η is a unit‑norm Gaussian direction and λ is a scalar that satisfies the scalar equation F(μ + λ L η) − φ = ½ ρ with ρ = ξᵀξ and ξ ∼ N(0,I). By choosing L = I, the authors reduce the problem to solving a one‑dimensional equation for λ, which is handled by Newton’s method with numerically estimated derivatives. The particle weight is computed analytically from λ, ρ, φ, and the determinant of L, and particles are resampled when the effective sample size falls below a prescribed threshold.

A key insight is that when the state covariance Σₓ has rank r ≪ m (the full state dimension), the minimization and random‑map construction can be performed entirely in the r‑dimensional subspace spanned by the non‑zero eigenvectors of Σₓ. Consequently, the computational cost scales with r instead of m, dramatically reducing memory usage and CPU time for partial‑noise problems.

The algorithm is summarized as follows: (1) draw an initial ensemble from the prior; (2) for each particle, minimize F via gradient descent to obtain μ and φ; (3) draw a Gaussian reference sample ξ, compute η and ρ; (4) solve the scalar equation for λ; (5) generate the new particle location using the random map; (6) compute the particle weight; (7) normalize weights and, if necessary, resample; (8) repeat when new observations arrive. This procedure is fully sequential, unlike weak‑constraint 4D‑Var, and it avoids storing the entire trajectory.

The methodology is tested on a geophysical application: a coupled system of nonlinear partial differential equations that model geomagnetic field evolution. The model is driven by spatially smooth stochastic forcing, resulting in a low‑rank covariance. Numerical experiments show that the implicit filter with as few as four to ten particles achieves mean‑square errors comparable to or better than those obtained with the Ensemble Kalman Filter (EnKF) or SIR, which require hundreds to thousands of particles for similar accuracy. Moreover, the filter efficiently propagates observational information from observed to unobserved components, a consequence of concentrating particles in high‑probability regions.

In conclusion, the paper delivers a practical, scalable version of the implicit particle filter suitable for high‑dimensional, nonlinear, partially noisy systems. By replacing Hessian‑based Newton steps with gradient descent and a scalar random‑map equation, the authors obtain a method that operates in a reduced‑dimensional subspace, dramatically cuts computational cost, and retains the robustness of particle‑based Bayesian inference. The work opens the door to applying implicit particle filters to a broader class of geophysical and engineering problems where singular covariances and large state spaces have previously limited the use of particle methods. Future directions include extensions to smoother formulations, non‑Gaussian noise structures, and more complex observation operators.
