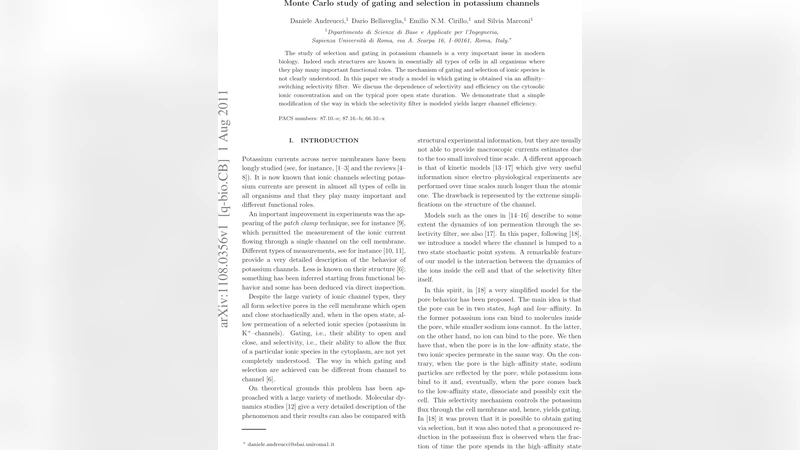

Monte Carlo study of gating and selection in potassium channels

The study of selection and gating in potassium channels is a very important issue in modern biology. Indeed such structures are known in all types of cells in all organisms where they play many important functional roles. The mechanism of gating and selection of ionic species is not clearly understood. In this paper we study a model in which gating is obtained via an affinity-switching selectivity filter. We discuss the dependence of selectivity and efficiency on the cytosolic ionic concentration and on the typical pore open state duration. We demonstrate that a simple modification of the way in which the selectivity filter is modeled yields larger channel efficiency.

💡 Research Summary

The paper investigates the gating and selectivity mechanisms of potassium (K⁺) channels by constructing a minimalist stochastic model that couples a two‑state selectivity filter with diffusive ion dynamics in the cytosol. The authors place K⁺ and Na⁺ ions on a two‑dimensional square lattice (size L = 10¹) and let each ion perform an independent symmetric random walk with reflecting boundary conditions, except at a special boundary site that represents the channel pore. The pore switches randomly between a high‑affinity state (favoring K⁺ binding) and a low‑affinity state (allowing both ion species to pass) with probability p of being in the low‑affinity state at each Monte‑Carlo step. In the high‑affinity state, Na⁺ ions are reflected, while a free K⁺ ion may bind to the pore; once bound, the K⁺ ion remains attached until the pore switches to the low‑affinity state, at which point it either re‑enters the lattice or exits the system with equal probability. In the low‑affinity state, both ion types can enter and immediately exit, mimicking an open channel. To keep ion numbers constant, each exiting ion is replaced by a new ion of the same species placed uniformly at random on the lattice.

The simulation runs for t_max = 10⁷ steps, and the authors record the cumulative number of exiting K⁺ and Na⁺ ions, M_K(t) and M_Na(t). The steady‑state fluxes are defined as (\bar f_K = \lim_{t\to\infty} M_K(t)/t) and similarly for Na⁺. The key performance metric is the selectivity ratio R = (\bar f_K / \bar f_{Na}). By varying p and the total ion count (N = 100, 1 000, 3 000, 5 000, 10 000), the authors explore how gating probability and cytosolic concentration affect both absolute fluxes and selectivity.

Results show that as p decreases (the pore spends more time in the high‑affinity state), Na⁺ flux drops sharply while K⁺ flux remains relatively robust, leading to a rapid increase in R. For p ≥ 0.08 the relationship follows a power law R ≈ a₁ p⁻ᵇ¹, with the exponent b₁ depending on ion concentration; lower concentrations broaden the power‑law regime. However, when the high‑affinity state dominates (very small p), the overall K⁺ flux also diminishes because the pore is often occupied and blocks ion passage.

To mitigate this loss, the authors modify the model to allow the pore to accommodate multiple K⁺ ions simultaneously (up to three or four). In this extended model, while the pore is in the high‑affinity state, successive K⁺ ions can bind without waiting for release, creating a reservoir that empties quickly when the pore switches to the low‑affinity state. Simulations demonstrate that with three bound K⁺ ions, the K⁺ flux loss becomes negligible even for realistic cytosolic concentrations (≈100 ions on the lattice), while the selectivity ratio remains high. This multi‑ion accommodation mirrors structural observations of real potassium channels, where the selectivity filter can hold several K⁺ ions at once.

The authors also identify a depletion effect: when the pore spends long periods in the low‑affinity state, the region adjacent to the pore becomes depleted of ions, leading to sub‑linear growth of flux with p (f ∝ p^α, α < 1). They develop an approximate analytical treatment in one dimension, confirming that the depletion of the local ion density near the pore accounts for the observed sub‑linear behavior.

Overall, the study provides several important insights: (1) modeling cytosolic ion motion as diffusion rather than uniform drift yields a more realistic picture of channel gating and selectivity; (2) a simple two‑state affinity filter can generate gating purely through selective binding, reproducing the qualitative behavior reported in earlier work; (3) allowing multiple K⁺ ions to bind the pore dramatically improves channel efficiency, reducing flux loss without sacrificing selectivity; and (4) local depletion near the pore explains deviations from linear flux scaling. The work suggests that future models should incorporate three‑dimensional geometry, electrostatic forces, and voltage dependence, and should be calibrated against experimental voltage‑clamp data to refine parameters. Nonetheless, the present Monte‑Carlo framework offers a tractable yet physically meaningful approach to studying ion channel function and may guide the design of synthetic nanopores with tunable gating and selectivity.
