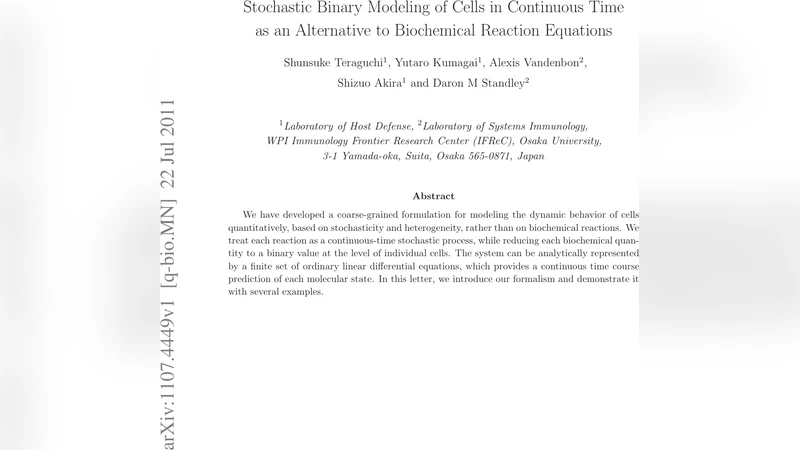

Stochastic Binary Modeling of Cells in Continuous Time as an Alternative to Biochemical Reaction Equations

We have developed a coarse-grained formulation for modeling the dynamic behavior of cells quantitatively, based on stochasticity and heterogeneity, rather than on biochemical reactions. We treat each reaction as a continuous-time stochastic process, while reducing each biochemical quantity to a binary value at the level of individual cells. The system can be analytically represented by a finite set of ordinary linear differential equations, which provides a continuous time course prediction of each molecular state. In this letter, we introduce our formalism and demonstrate it with several examples.

💡 Research Summary

The paper introduces a coarse‑grained stochastic framework for modeling cellular dynamics that departs from the conventional biochemical reaction‑equation approach. Instead of tracking continuous concentrations of many molecular species, each species is reduced to a binary state—True (active) or False (inactive). Interactions between these binary nodes are treated as continuous‑time stochastic processes that satisfy the Markov property. Consequently, the entire system can be described by a master equation whose transition‑rate matrix is linear, allowing the dynamics to be captured by a finite set of ordinary linear differential equations.

The authors first illustrate the method with the simplest possible network: a single directed edge A → B. The transition rate 1/τ on the edge defines the probability that a cell in state (A = T, B = F) will switch to (A = T, B = T) after an exponentially distributed waiting time. Solving the master equation yields closed‑form expressions for the time‑dependent probabilities of each joint state. By marginalizing over A, the probability that B is active, P*_T(t), follows a simple exponential rise 1 − e^{−t/τ}. The observable bulk signal is then modeled as a linear combination of the two possible measurement levels (l_T for active, l_F for inactive) weighted by P*_T(t). This linear mapping contrasts with traditional ODE models, where scaling one variable non‑linearly propagates to all others.

A second example adds mutual inhibition (A ⊣ B and B ⊣ A). The resulting 4 × 4 transition matrix produces two stable probability basins: depending on the initial condition, a fraction of cells ends up with A active while the remainder ends up with B active. This captures population heterogeneity that deterministic models cannot represent, because deterministic ODEs would predict a single stable steady state determined solely by the initial condition.

The third example examines a negative‑feedback loop that would be oscillatory in a Boolean setting: A → B, B → !A, !A → !B, !B → A. With identical time‑scale τ for all four reactions, the master equation yields marginal probabilities containing sinusoidal terms multiplied by e^{−t/τ}. Individual cells therefore oscillate, but the exponential envelope causes rapid decoherence at the population level, illustrating how the Markov assumption (exponential waiting times) leads to fast loss of synchrony.

The authors note that the formalism extends naturally to arbitrary Boolean logic. An “AND” gate can be written as A & B → C with rate 1/τ, and the corresponding master equation is constructed by enumerating all 2^N joint states. Thus, any logical circuit can be embedded, albeit with an exponential increase in state space; nevertheless, the linearity of the master equation permits analytical or efficient numerical treatment.

To demonstrate biological relevance, the authors model the TNF‑NF‑κB signaling pathway, a well‑studied system previously described by a 33‑species, 110‑parameter ODE model. Their reduced model contains only six nodes (TNF, TNFR, IKK, IκB, NF‑κB, A20) and thirteen time‑scale parameters. The network topology reproduces the known feedback loops: TNF activates TNFR, which activates IKK; IKK phosphorylates IκB leading to its degradation; freed NF‑κB translocates to the nucleus, inducing transcription of IκB and A20; IκB and A20 provide negative feedback on NF‑κB and TNFR, respectively. Simulations of the linear master equation reproduce the experimentally observed time courses for wild‑type cells, IκB knockout (KO), and A20 KO. In the IκB KO, NF‑κB activation overshoots; in the A20 KO, activation persists longer before adaptation—both hallmarks captured without any fine‑tuning of kinetic constants, only by adjusting the binary measurement levels.

The discussion emphasizes three main advantages: (1) the linear ODE system is analytically tractable and free from numerical instability; (2) the parameter set is dramatically reduced to biologically interpretable time‑scales and two measurement levels per node, facilitating direct mapping to bulk assay data; (3) cellular heterogeneity is built in from the outset, allowing the model to predict probability distributions rather than just mean trajectories. Limitations are also acknowledged: the Markov assumption imposes exponential waiting‑time distributions that may not reflect multi‑step biochemical processes, and binary state reduction may miss concentration‑dependent effects such as dose‑response curves. The authors propose future extensions to non‑Markov (e.g., semi‑Markov) processes, multi‑valued node states, and coupling between cells by making transition rates depend on the instantaneous probabilities of other cells, thereby opening the door to modeling tissue‑level interactions.

In summary, the paper presents a mathematically elegant, computationally lightweight alternative to detailed reaction‑kinetic modeling. By treating cellular signaling as a stochastic Boolean network in continuous time, it captures key dynamical features—bistability, oscillation, and feedback—while remaining robust to incomplete kinetic information. This approach could become a valuable tool for rapid hypothesis testing, especially in contexts where only bulk measurements are available and detailed mechanistic data are lacking.
