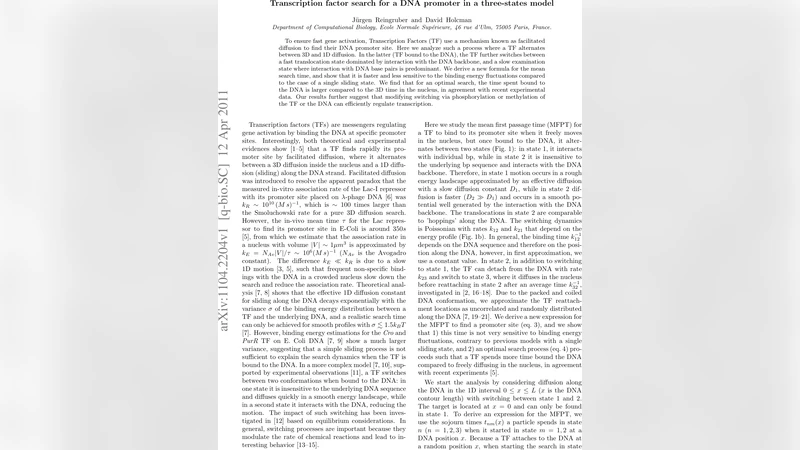

Transcription factor search for a DNA promoter in a three-states model

To ensure fast gene activation, Transcription Factors (TF) use a mechanism known as facilitated diffusion to find their DNA promoter site. Here we analyze such a process where a TF alternates between 3D and 1D diffusion. In the latter (TF bound to the DNA), the TF further switches between a fast translocation state dominated by interaction with the DNA backbone, and a slow examination state where interaction with DNA base pairs is predominant. We derive a new formula for the mean search time, and show that it is faster and less sensitive to the binding energy fluctuations compared to the case of a single sliding state. We find that for an optimal search, the time spent bound to the DNA is larger compared to the 3D time in the nucleus, in agreement with recent experimental data. Our results further suggest that modifying switching via phosphorylation or methylation of the TF or the DNA can efficiently regulate transcription.

💡 Research Summary

The paper presents a refined theoretical framework for the long‑standing problem of how transcription factors (TFs) locate their specific promoter sites rapidly within the crowded nuclear environment. Building on the classic facilitated diffusion concept—where a TF alternates between three‑dimensional (3D) diffusion in the nucleoplasm and one‑dimensional (1D) sliding along DNA—the authors introduce a more realistic three‑state model that captures two distinct conformations of the TF while it is bound to DNA.

Model description
State 3 corresponds to free 3D diffusion. Upon stochastic encounter with DNA, the TF binds at a random location (state 2). While bound, the TF can be in either a fast translocation state (state 2) dominated by interactions with the DNA backbone, characterized by a large diffusion coefficient D₂ and “hopping” motions of roughly 10 bp, or a slow examination state (state 1) where the TF contacts individual base pairs, experiences a rugged energy landscape, and diffuses with a much smaller coefficient D₁ (D₁ ≪ D₂). Switching between states 1 and 2 occurs with Poisson rates k₁₂ and k₂₁, while detachment from DNA (state 2 → 3) proceeds with rate k₂₃ and re‑attachment (state 3 → 2) with rate k₃₂. The target promoter is located at x = 0 and can be recognized only in state 1.

Mathematical analysis
The authors write coupled diffusion–reaction equations for the mean first‑passage times t₁₁(x) and t₁₂(x) (Eq. 1) with reflecting boundary at the far end of the DNA segment (x = L) and absorbing boundary at the target. By integrating over the DNA length they obtain spatially averaged quantities and derive an explicit expression for the overall mean search time τ (Eq. 3). Key parameters are the average sliding distances in the two bound states, lₛ₁ = p D₁/k₁₂ and lₛ₂ = p D₂/(k₂₁ + k₂₃), and the detachment probability q = k₂₃/(k₂₁ + k₂₃) (p = 1 − q).

In the biologically relevant regime where the slow state is traversed only over short distances (κ = lₛ₁/lₛ₂ ≪ 1) and detachment is rare (q ≪ 1), the authors perform an asymptotic expansion. They obtain a compact approximation (Eq. 6) showing that τ scales as

\
