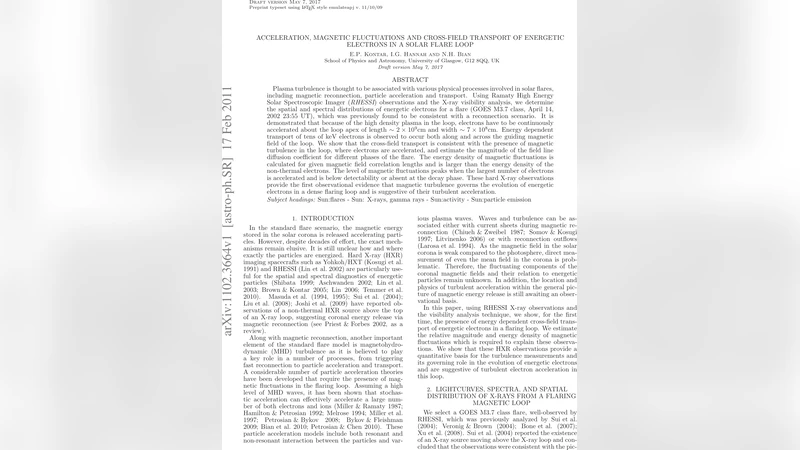

Acceleration, magnetic fluctuations and cross-field transport of energetic electrons in a solar flare loop

Plasma turbulence is thought to be associated with various physical processes involved in solar flares, including magnetic reconnection, particle acceleration and transport. Using Ramaty High Energy Solar Spectroscopic Imager ({\it RHESSI}) observations and the X-ray visibility analysis, we determine the spatial and spectral distributions of energetic electrons for a flare (GOES M3.7 class, April 14, 2002 23$:$55 UT), which was previously found to be consistent with a reconnection scenario. It is demonstrated that because of the high density plasma in the loop, electrons have to be continuously accelerated about the loop apex of length $\sim 2\times 10^9$cm and width $\sim 7\times 10^8$cm. Energy dependent transport of tens of keV electrons is observed to occur both along and across the guiding magnetic field of the loop. We show that the cross-field transport is consistent with the presence of magnetic turbulence in the loop, where electrons are accelerated, and estimate the magnitude of the field line diffusion coefficient for different phases of the flare. The energy density of magnetic fluctuations is calculated for given magnetic field correlation lengths and is larger than the energy density of the non-thermal electrons. The level of magnetic fluctuations peaks when the largest number of electrons is accelerated and is below detectability or absent at the decay phase. These hard X-ray observations provide the first observational evidence that magnetic turbulence governs the evolution of energetic electrons in a dense flaring loop and is suggestive of their turbulent acceleration.

💡 Research Summary

The authors investigate the M3.7 solar flare of 14 April 2002 using data from the Ramaty High Energy Solar Spectroscopic Imager (RHESSI). By applying X‑ray visibility analysis—a technique that extracts the two‑dimensional Fourier components of the hard X‑ray source directly from the rotating modulation collimators—they avoid many of the artifacts associated with conventional image reconstruction. The visibility data are fitted with a curved elliptical Gaussian model, allowing precise measurement of the loop’s full‑width‑half‑maximum (FWHM) length L(ε) and width W(ε) as functions of photon energy ε for three distinct time intervals (rise, peak, decay).

The flare’s coronal loop is unusually dense (≈10¹¹ cm⁻³), so electrons of 10–50 keV are collisionally stopped within the loop itself, producing thick‑target bremsstrahlung in the corona. Consequently, the observed hard X‑ray emission requires continuous acceleration of electrons near the loop apex. The authors find that L(ε) increases quadratically with energy, consistent with the stopping distance r_k ≈ ε²/(2Kn) derived from Coulomb collisions. By fitting L(ε)=L₀+α_k ε² they obtain a characteristic acceleration region length L₀≈2×10⁹ cm and an independent density estimate n≈(2Kα_k)⁻¹ that matches the density derived from the thermal emission measure.

More striking is the linear increase of the loop width with energy, W(ε)=W₀+α_⊥ ε, observed during the rise and peak phases. Pure field‑aligned transport cannot account for this behavior because the electron gyroradius (≈2 cm for tens‑keV electrons in a ≈150 G field) is negligible compared with the observed transverse excursions. The authors therefore invoke magnetic field line diffusion caused by perpendicular magnetic fluctuations B_⊥. In the quasi‑linear Rechester‑Rosenbluth framework, the field‑line diffusion coefficient is D_M≈(B_⊥²/B₀²) λ_k, where λ_k is the parallel correlation length of the turbulence. The transverse displacement of an electron after traveling its collisional stopping distance is r_⊥≈√(2 D_M r_k), leading to the observed linear term α_⊥. By measuring α_⊥ they infer D_M and, assuming λ_k≈10⁸ cm, obtain B_⊥/B₀≈0.1–0.2 during the flare peak.

The magnetic turbulence energy density u_B≈(B_⊥²/8π)(λ_k/L) is calculated and found to exceed the non‑thermal electron energy density u_e during the peak, indicating that the turbulence contains sufficient energy to power the observed acceleration. The turbulence level peaks simultaneously with the maximum electron acceleration rate (dN/dt≈5×10³⁵ s⁻¹) and the hardest spectral index, then declines to below detectability in the decay phase, consistent with a scenario where strong MHD turbulence is generated during the impulsive energy release and dissipates as the plasma cools and the reconnection rate drops.

In summary, the paper provides the first direct observational evidence that cross‑field transport of energetic electrons in a dense solar flare loop is governed by magnetic field line diffusion, i.e., by magnetic turbulence. It demonstrates that (i) continuous acceleration near the loop apex is required in high‑density loops, (ii) the energy‑dependent widening of the hard X‑ray source can be quantitatively linked to the field‑line diffusion coefficient, and (iii) the inferred turbulence energy density is sufficient to drive the observed electron acceleration. The methodology—combining RHESSI visibility fitting with a diffusion model—offers a powerful new tool for diagnosing turbulence in solar flares and can be applied to future events to further elucidate the role of MHD turbulence in particle acceleration.
