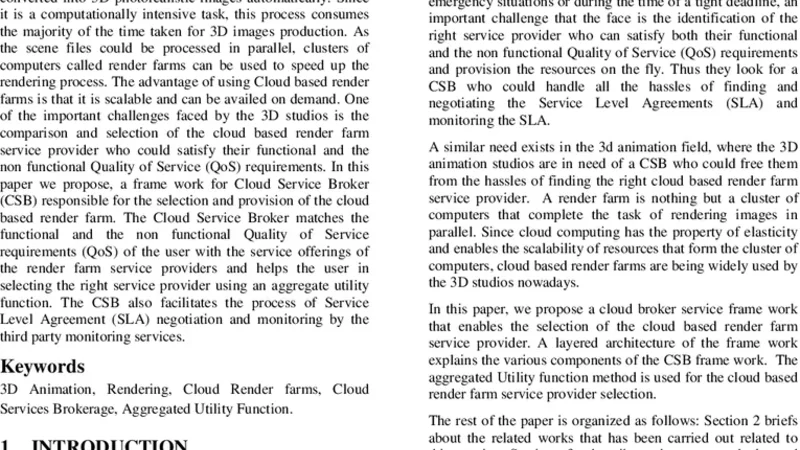

A Service Broker Model for Cloud based Render Farm Selection

Cloud computing is gaining popularity in the 3D Animation industry for rendering the 3D images. Rendering is an inevitable task in creating the 3d animated scenes. It is a process where the scene files to be animated is read and converted into 3D photorealistic images automatically. Since it is a computationally intensive task, this process consumes the majority of the time taken for 3D images production. As the scene files could be processed in parallel, clusters of computers called render farms can be used to speed up the rendering process. The advantage of using Cloud based render farms is that it is scalable and can be availed on demand. One of the important challenges faced by the 3D studios is the comparison and selection of the cloud based render farm service provider who could satisfy their functional and the non functional Quality of Service (QoS) requirements. In this paper we propose, a frame work for Cloud Service Broker (CSB) responsible for the selection and provision of the cloud based render farm. The Cloud Service Broker matches the functional and the non functional Quality of Service requirements (QoS) of the user with the service offerings of the render farm service providers and helps the user in selecting the right service provider using an aggregate utility function. The CSB also facilitates the process of Service Level Agreement (SLA) negotiation and monitoring by the third party monitoring services.

💡 Research Summary

The paper addresses the problem of selecting an appropriate cloud‑based render farm for 3D animation studios, a task that is complicated by the large number of providers offering heterogeneous functional capabilities (software versions, GPU/CPU configurations, storage interfaces) and non‑functional Quality of Service (QoS) attributes (price, latency, availability, reliability, security). To automate and optimize this selection, the authors propose a Cloud Service Broker (CSB) framework that acts as an intermediary between users and render‑farm providers.

The CSB architecture is organized into four layers. The first layer (User Interface) collects the user’s functional requirements and QoS preferences through a web portal. Functional requirements are matched against a service registry that stores provider‑published specifications in a standardized metadata schema. QoS preferences are expressed as quantitative values (e.g., maximum price, target response time) and qualitative preferences (e.g., security level). The second layer (Service Registry) maintains these specifications together with template Service Level Agreements (SLAs).

The core of the system is the Matching‑Selection Engine (third layer). After filtering out providers that do not meet the functional constraints, the engine evaluates the remaining candidates using an aggregate utility function. Users assign weights to each QoS attribute, reflecting the relative importance of cost, performance, reliability, etc. The utility function normalizes each attribute to a 0‑1 scale, applies the user‑defined weight, and aggregates the results. While a simple linear weighted sum is the default, the framework allows non‑linear transformations (logarithmic, exponential) to model steep penalties when a QoS metric exceeds a critical threshold (e.g., latency beyond a deadline). The provider with the highest utility score is presented as the optimal choice.

Once a provider is selected, the fourth layer handles SLA negotiation and monitoring. The broker mediates between the user’s minimum QoS guarantees and the provider’s maximum feasible commitments, proposing a mutually acceptable SLA clause. After contract signing, the CSB integrates with third‑party monitoring services to collect real‑time performance metrics (CPU/GPU utilization, job completion time, network latency). If a metric violates the SLA, the broker automatically triggers a predefined compensation mechanism (e.g., partial refund, additional compute credits).

The authors validate the approach through a simulation involving five fictitious render‑farm providers and three workload categories (low, medium, high resolution). By varying the weight vector, they demonstrate that the broker can prioritize cost, latency, or reliability as required. For example, when cost receives the highest weight, a low‑price GPU cluster is selected; when latency and reliability dominate, a premium dedicated GPU instance is chosen. The SLA‑violation handling is also shown to limit unexpected cost overruns.

Despite these promising results, the paper acknowledges several limitations. First, the accuracy of the utility‑based ranking depends on reliable QoS measurements; cloud environments are inherently volatile, and insufficient monitoring granularity can lead to mis‑ranking. Second, the current model assumes static weights, whereas real projects often need dynamic weight adjustment across production phases (pre‑visualization, final rendering). Third, security and privacy requirements are difficult to quantify and are only loosely incorporated. The authors suggest future work on machine‑learning‑driven QoS prediction, dynamic weight optimization, and a risk‑scoring framework for security attributes.

In conclusion, the proposed CSB framework offers a systematic, extensible solution for cloud render‑farm selection, enabling animation studios to align provider capabilities with both functional needs and nuanced QoS preferences. The methodology is not limited to rendering; it can be generalized to other high‑performance cloud services such as scientific simulations or big‑data analytics, thereby contributing to broader adoption of cloud computing in compute‑intensive domains.
