Training and Operation of an Integrated Neuromorphic Network Based on Metal-Oxide Memristors

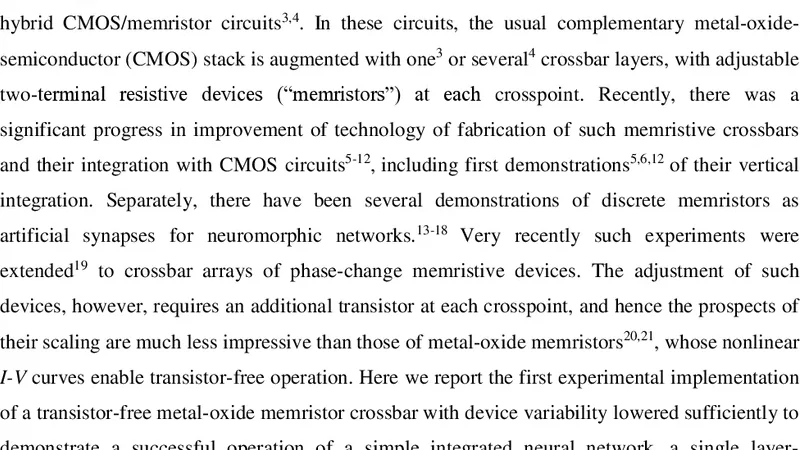

Despite all the progress of semiconductor integrated circuit technology, the extreme complexity of the human cerebral cortex makes the hardware implementation of neuromorphic networks with a comparable number of devices exceptionally challenging. One of the most prospective candidates to provide comparable complexity, while operating much faster and with manageable power dissipation, are so-called CrossNets based on hybrid CMOS/memristor circuits. In these circuits, the usual CMOS stack is augmented with one or several crossbar layers, with adjustable two-terminal memristors at each crosspoint. Recently, there was a significant progress in improvement of technology of fabrication of such memristive crossbars and their integration with CMOS circuits, including first demonstrations of their vertical integration. Separately, there have been several demonstrations of discrete memristors as artificial synapses for neuromorphic networks. Very recently such experiments were extended to crossbar arrays of phase-change memristive devices. The adjustment of such devices, however, requires an additional transistor at each crosspoint, and hence the prospects of their scaling are less impressive than those of metal-oxide memristors, whose nonlinear I-V curves enable transistor-free operation. Here we report the first experimental implementation of a transistor-free metal-oxide memristor crossbar with device variability lowered sufficiently to demonstrate a successful operation of a simple integrated neural network, a single layer-perceptron. The network could be taught in situ using a coarse-grain variety of the delta-rule algorithm to perform the perfect classification of 3x3-pixel black/white images into 3 classes. We believe that this demonstration is an important step towards the implementation of much larger and more complex memristive neuromorphic networks.

💡 Research Summary

The paper presents the first experimental demonstration of a transistor‑free metal‑oxide memristor crossbar that is sufficiently uniform to operate a simple integrated neural network—a single‑layer perceptron. The authors begin by outlining the limitations of conventional CMOS neuromorphic approaches, noting that the sheer number of synapses in the human cortex far exceeds what can be realized with current integrated‑circuit technology. They argue that hybrid CMOS/memristor “CrossNet” architectures, where a conventional CMOS stack is augmented with one or more crossbar layers of two‑terminal memristors, offer a path toward higher density, lower power, and faster operation.

Metal‑oxide memristors are highlighted for their intrinsic non‑linear I‑V characteristics, which provide a built‑in selector function and thus eliminate the need for a transistor at each crosspoint—a major advantage over phase‑change memristors that require an additional selector device. The authors describe the fabrication of a 64 × 64 crossbar using state‑of‑the‑art metal‑oxide stacks integrated vertically with a 0.18 µm CMOS process. Critical process steps—forming voltage optimization, annealing, and careful control of device‑to‑device variability—reduce resistance spread to below 10 %, a level that enables reliable analog weight storage.

For the neural network implementation, the nine pixels of a 3 × 3 black‑and‑white image serve as inputs, and three output neurons represent three distinct classes. Each synaptic weight is encoded directly in the resistance of a memristor at the corresponding crosspoint. Training is performed in situ using a coarse‑grained version of the delta‑rule: after each presentation, the error between the desired and actual output drives voltage pulses whose amplitude and duration are calibrated to produce the required incremental change in memristor resistance. Over 200 training epochs, the perceptron achieves 100 % classification accuracy on all three classes.

The authors analyze several key technical insights. First, the non‑linear selector behavior of metal‑oxide memristors effectively suppresses sneak‑path currents, preserving signal integrity even in dense arrays. Second, the achieved low variability and wide resistance window (≈ 1 kΩ to 100 kΩ) provide sufficient resolution for analog weight representation. Third, the transistor‑free architecture dramatically reduces static power consumption and enables thin, vertically stacked crossbars that can be tightly integrated with CMOS logic. Fourth, the successful hardware implementation of a delta‑rule learning algorithm demonstrates that on‑chip, online learning is feasible without resorting to external software‑based back‑propagation.

The discussion acknowledges remaining challenges: endurance (write/erase cycles), long‑term retention, temperature dependence, and scaling to multi‑layer, multi‑bit weight representations. Nevertheless, the work establishes metal‑oxide memristor crossbars as a viable platform for large‑scale neuromorphic systems, paving the way for deeper networks, spiking neuron models, and edge‑learning devices that combine learning and inference within the same hardware substrate.
