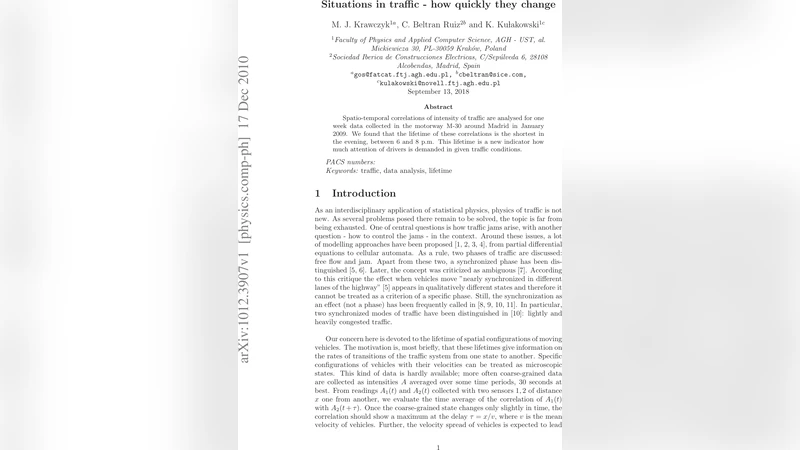

Situations in traffic - how quickly they change

Spatio-temporal correlations of intensity of traffic are analysed for one week data collected in the motorway M-30 around Madrid in January 2009. We found that the lifetime of these correlations is the shortest in the evening, between 6 and 8 p.m. This lifetime is a new indicator how much attention of drivers is demanded in given traffic conditions.

💡 Research Summary

The paper investigates how rapidly traffic configurations evolve on a major urban ring road, using one‑minute aggregated data from 24 inductive‑loop sensors deployed along the 13 km stretch of Madrid’s M‑30 motorway during a week in January 2009. The authors focus on spatio‑temporal correlations of traffic intensity, aiming to quantify the “lifetime” of a spatial configuration as a proxy for the amount of driver attention required.

Data preprocessing begins with detrending each sensor’s daily time series. The authors split each day into one‑hour windows, fit a cubic polynomial to each window, and subtract the fitted trend, thereby removing long‑term diurnal patterns while preserving short‑term fluctuations. For any pair of sensors i and j separated by distance x, they estimate the average travel time τ₀ = x/⟨v⟩ using the mean vehicle speed ⟨v⟩ measured at the relevant time interval. They then compute the Pearson correlation coefficient cᵢⱼ between the intensity time series Aᵢ(t) and the time‑shifted series Aⱼ(t + τ₀). The coefficient is averaged over all 30‑minute blocks and over all sensor pairs, producing a distance‑dependent correlation function C(d).

The distance dependence is fitted with an exponential decay C(d) = λ exp(−d/ξ), where ξ is interpreted as the spatial correlation length. The authors repeat this procedure for successive half‑hour intervals throughout the day. They find that ξ varies dramatically: during the early‑morning quiet period (04:00–04:30) ξ≈3.4 km, whereas during the evening peak (18:00–18:30) ξ shrinks to about 0.21 km. To translate this spatial scale into a temporal one, they define the “lifetime” τ = ξ/⟨v⟩, i.e., the average time a spatial configuration persists before being reshaped by traffic dynamics.

The lifetime exhibits a pronounced minimum between 18:00 and 20:00, coinciding with the highest traffic flow intensity, the lowest mean speed, and the largest speed standard deviation (σ≈25 km/h). The authors argue that this combination signals rapid, possibly chaotic, re‑arrangements of vehicle clusters, demanding heightened driver vigilance. They note that the same time window (≈17:00–19:00) is known from accident statistics (e.g., the Insurance Institute for Highway Safety) to be the most lethal period of the day, suggesting a causal link between short τ and accident risk.

Methodologically, the study’s strengths lie in its use of real‑world, high‑frequency sensor data and in introducing τ as a novel, interpretable metric that bridges spatial correlation analysis with driver‑centric safety considerations. However, several limitations are acknowledged or implied: (1) the 1‑minute aggregation smooths out individual vehicle dynamics, potentially under‑estimating true correlation lengths; (2) using the mean speed ⟨v⟩ to convert ξ into τ ignores the observed large speed variance, which could bias the lifetime estimate; (3) the exponential model for C(d) is assumed without testing alternative functional forms; (4) weekend data are excluded, limiting the generality of the findings; and (5) the analysis treats each sensor pair as if the same vehicle platoon traverses both sensors, an assumption that may break down in congested, multi‑lane traffic.

Future work could address these issues by incorporating higher‑resolution trajectory data (e.g., GPS or video‑based tracking), applying more sophisticated detrending or filtering techniques, testing alternative spatial correlation models, and extending the analysis to different road types, weather conditions, and non‑peak periods. Moreover, a systematic statistical study linking τ to observed accident rates would validate the proposed safety indicator and could inform real‑time traffic management systems that dynamically adjust speed limits, lane assignments, or driver‑alert messages based on the instantaneous lifetime of traffic configurations.

In summary, the paper demonstrates that the temporal stability of traffic patterns varies strongly over the day, with the evening rush hour exhibiting the shortest lifetimes and the greatest speed fluctuations. By quantifying this effect through the τ metric, the authors provide a potentially valuable tool for traffic engineers and safety analysts seeking to predict and mitigate high‑risk traffic conditions.
