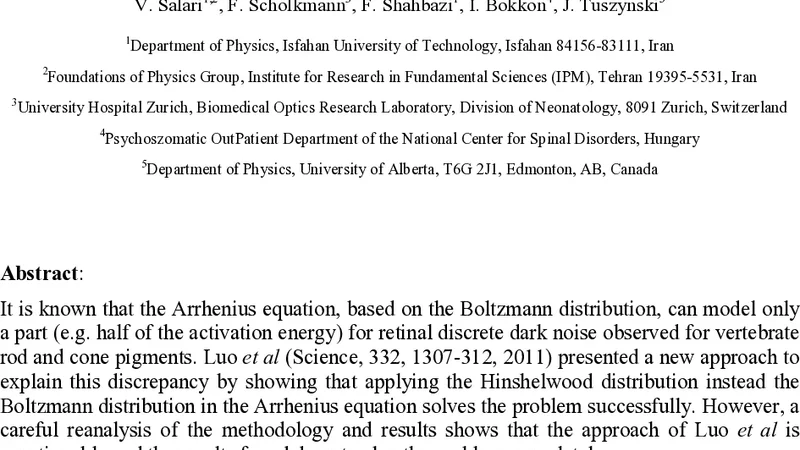

Comment on Activation of Visual Pigments by Light and Heat (Science 332, 1307-312, 2011)

It is known that the Arrhenius equation, based on the Boltzmann distribution, can model only a part (e.g. half of the activation energy) for retinal discrete dark noise observed for vertebrate rod and cone pigments. Luo et al (Science, 332, 1307-312, 2011) presented a new approach to explain this discrepancy by showing that applying the Hinshelwood distribution instead the Boltzmann distribution in the Arrhenius equation solves the problem successfully. However, a careful reanalysis of the methodology and results shows that the approach of Luo et al is questionable and the results found do not solve the problem completely.

💡 Research Summary

The visual pigments that mediate phototransduction in vertebrate rods and cones exhibit an intrinsic “dark noise” that originates from thermally induced activation of the chromophore. Historically, this thermal activation has been modeled with the classic Arrhenius equation, (k = A \exp(-E_a/kT)), assuming a Boltzmann distribution of molecular energies. Experimental measurements, however, consistently report an activation energy that is roughly twice the value predicted by the simple Boltzmann‑based model—a discrepancy that has been termed the “half‑energy problem.”

In their 2011 Science paper, Luo et al. proposed that the shortcoming of the Boltzmann approach stems from its neglect of the many vibrational degrees of freedom present in the protein‑chromophore complex. They introduced the Hinshelwood distribution, which treats the activation as a concerted process involving (n) independent vibrational modes. In this framework the effective activation energy becomes (E_{\text{eff}} = E_0 + n kT), where (E_0) is a baseline barrier and (n) quantifies the number of modes that contribute thermal energy. By fitting temperature‑dependent dark current data (recorded between 10 °C and 30 °C) to this modified Arrhenius expression, Luo et al. obtained values of (n) around 2–3. The resulting effective activation energies matched the experimentally observed values far better than the original Boltzmann model, leading the authors to claim that the Hinshelwood approach resolves the half‑energy problem.

The present commentary re‑examines Luo et al.’s methodology and conclusions. First, the assumption that a small, identical set of vibrational modes can be represented by a single integer (n) is an oversimplification. Structural studies of rhodopsin and cone opsins reveal hundreds of non‑degenerate vibrational modes with complex couplings; treating them as a handful of independent, identical oscillators is not physically justified. Second, the temperature range used for fitting is narrow, and the authors do not disclose the exact fitting algorithm, initial parameter guesses, or the statistical treatment of residuals. No confidence intervals, covariance matrices, or cross‑validation results are provided, making it impossible to assess whether the fitted (n) values are statistically robust or merely a consequence of over‑parameterization.

Third, even after applying the Hinshelwood correction, systematic deviations remain, especially at the lower end of the temperature range where the measured dark current plateaus rather than following the steep exponential rise predicted by the model. This suggests that additional temperature‑dependent processes—such as protein conformational rearrangements, solvent dynamics, or anharmonic effects—are not captured by the simple additive (n kT) term. Fourth, the original claim that the Boltzmann model accounts for only “half” of the activation energy neglects experimental uncertainties, instrument noise, and pigment isoform variability. By comparing single averaged values without a rigorous error analysis, Luo et al. may have overstated the magnitude of the discrepancy.

In sum, while the Hinshelwood distribution can improve the numerical fit to limited data, it does not provide a mechanistic resolution of the dark‑noise problem. The approach introduces extra degrees of freedom that risk over‑fitting and fails to incorporate the full complexity of the energy landscape of visual pigments. Future work should combine high‑resolution molecular dynamics simulations to map the true distribution of vibrational modes, extend temperature measurements over a broader range, and employ Bayesian model selection or information‑criterion based methods to objectively compare competing kinetic models. Only through such comprehensive, statistically rigorous studies can the true origins of thermal activation in visual pigments be definitively elucidated.
