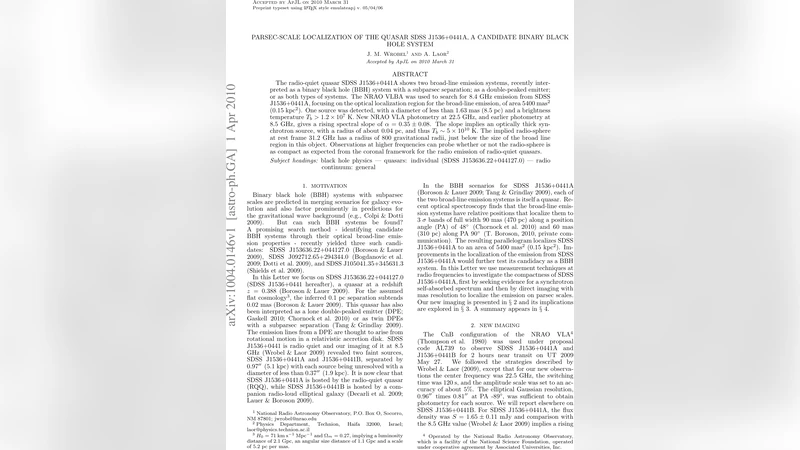

Parsec-Scale Localization of the Quasar SDSS J1536+0441A, a Candidate Binary Black Hole System

The radio-quiet quasar SDSS J1536+0441A shows two broad-line emission systems, recently interpreted as a binary black hole (BBH) system with a subparsec separation; as a double-peaked emitter; or as both types of systems. The NRAO VLBA was used to search for 8.4 GHz emission from SDSS J1536+0441A, focusing on the optical localization region for the broad-line emission, of area 5400 mas^2 (0.15 kpc^2). One source was detected, with a diameter of less than 1.63 mas (8.5 pc) and a brightness temperature T_b > 1.2 x 10^7 K. New NRAO VLA photometry at 22.5 GHz, and earlier photometry at 8.5 GHz, gives a rising spectral slope of alpha = 0.35+/-0.08. The slope implies an optically thick synchrotron source, with a radius of about 0.04 pc, and thus T_b ~ 5 x 10^10 K. The implied radio-sphere at rest frame 31.2 GHz has a radius of 800 gravitational radii, just below the size of the broad line region in this object. Observations at higher frequencies can probe whether or not the radio-sphere is as compact as expected from the coronal framework for the radio emission of radio-quiet quasars.

💡 Research Summary

The paper investigates the nature of the radio‑quiet quasar SDSS J1536+0441A, which exhibits two broad‑line emission systems. These have been interpreted either as evidence for a sub‑parsec binary black‑hole (BBH) system, as a double‑peaked emitter (DPE) arising from a rotating accretion disc, or as a combination of both phenomena. To discriminate between these scenarios, the authors performed very‑long‑baseline interferometry (VLBI) observations with the NRAO Very Long Baseline Array (VLBA) at 8.4 GHz, concentrating on the optical localization region of the broad‑line emission that spans 5400 mas² (≈0.15 kpc²).

Only a single compact radio source was detected within this region. The source is unresolved with a diameter <1.63 mas, corresponding to a physical size <8.5 pc at the quasar’s redshift. Its brightness temperature exceeds 1.2 × 10⁷ K, indicating non‑thermal synchrotron emission rather than thermal processes associated with star formation.

Complementary observations with the NRAO Very Large Array (VLA) at 22.5 GHz, together with previously published 8.5 GHz measurements, reveal a rising spectral index α = 0.35 ± 0.08 (S ∝ ν^α). A positive α implies that the source is optically thick at low frequencies, consistent with a synchrotron self‑absorbed component. Modeling the spectrum as a homogeneous synchrotron sphere yields an emitting radius of roughly 0.04 pc. This radius corresponds to about 800 gravitational radii (R_g) for a black‑hole mass typical of luminous quasars, placing the radio “sphere” just inside the broad‑line region (BLR), whose characteristic size is a few thousand R_g. The inferred brightness temperature for this compact synchrotron sphere is ≈5 × 10¹⁰ K, well above the equipartition limit for thermal plasma but below the inverse‑Compton catastrophe threshold.

These physical parameters have direct implications for the competing interpretations. In the BBH picture, two supermassive black holes separated by ≲0.1 pc would each be expected to host a compact radio core. The detection of only one unresolved component, with a size far smaller than the putative binary separation, argues against two distinct radio cores at the current resolution. However, the possibility remains that each black hole is embedded within a shared, very compact synchrotron region that appears as a single source at 8.4 GHz. Higher‑frequency VLBI (e.g., at 43 GHz or higher) would provide the necessary angular resolution (sub‑mas) to resolve any sub‑parsec separation and test this hypothesis.

In the DPE or coronal‑emission framework, the radio emission originates from a magnetized corona above the accretion disc, analogous to the Sun’s corona but on much larger scales. The coronal model predicts a compact, optically thick synchrotron source with a size of tens of gravitational radii and a brightness temperature of 10⁹–10¹¹ K, matching the observed values. Moreover, the proximity of the radio sphere to the BLR suggests that the same population of relativistic electrons could contribute to both the radio continuum and the broad‑line excitation, providing a natural link between the two phenomena.

The authors conclude that the current data favor a coronal synchrotron origin for the radio emission in SDSS J1536+0441A, while not definitively ruling out a binary‑black‑hole configuration. They recommend future observations at higher frequencies and with longer baselines to directly measure the source size at ≲0.01 pc scales, which would either resolve two distinct cores or confirm the extreme compactness expected from the coronal scenario. Such measurements will be crucial for understanding the radio‑quiet quasar population, the physics of their central engines, and the prevalence of sub‑parsec binary supermassive black holes.
