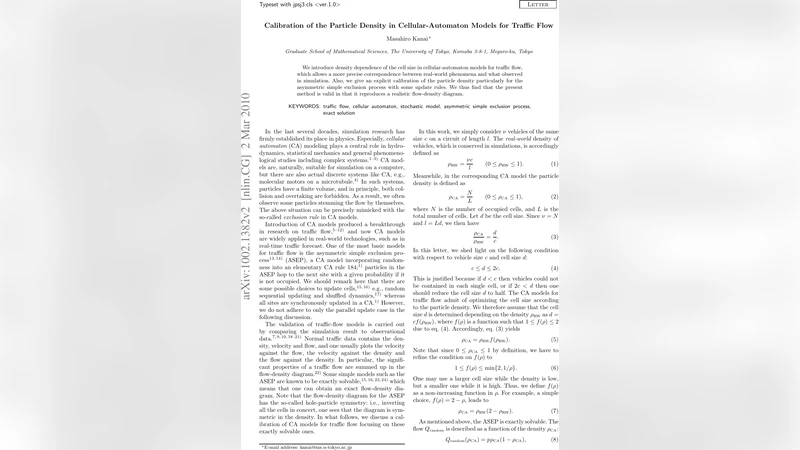

Calibration of the Particle Density in Cellular-Automaton Models for Traffic Flow

We introduce density dependence of the cell size in cellular-automaton models for traffic flow, which allows a more precise correspondence between real-world phenomena and what observed in simulation. Also, we give an explicit calibration of the particle density particularly for the asymmetric simple exclusion process with some update rules. We thus find that the present method is valid in that it reproduces a realistic flow-density diagram.

💡 Research Summary

The paper addresses a fundamental limitation of cellular‑automaton (CA) traffic models: the use of a fixed cell size that does not reflect the variability of real‑world vehicle spacing and density. The authors propose a density‑dependent cell‑size function ℓ(ρ)=ℓ₀·f(ρ), where ℓ₀ is the conventional cell length (e.g., 7.5 m) and f(ρ)∈(0,1] shrinks the cell as traffic becomes congested. By coupling ℓ(ρ) with the physical vehicle length l_v, they derive an explicit mapping between the model’s particle density ρ̂ (=N/L) and the actual vehicle density ρ_real measured on a road: ρ̂ = (ρ_real·ℓ(ρ))/l_v. This relation is inverted to obtain ℓ(ρ) as a function of ρ̂, providing a closed‑form calibration that ties the abstract CA state directly to observable traffic quantities.

The calibration is applied to the asymmetric simple exclusion process (ASEP), a prototypical CA model for unidirectional flow. Two update schemes are examined: (i) parallel (synchronous) update, where all particles attempt to move simultaneously with probability p, yielding a flow J₁(ρ̂)=p·ρ̂·(1−ρ̂); and (ii) random sequential update, where particles are selected one by one, giving J₂(ρ̂)=p·ρ̂·(1−ρ̂)·(1−ρ̂/2). By substituting the density‑dependent cell size into these expressions, the authors obtain calibrated flow‑density (fundamental) diagrams J₁(ρ_real) and J₂(ρ_real) that can be directly compared with empirical data.

A specific functional form for f(ρ) is chosen as a second‑order polynomial, f(ρ)=1−a·ρ−b·ρ², with coefficients a and b determined from the desired minimum cell size ℓ_min (the smallest physically meaningful spacing) and the saturation density ρ_max at which flow vanishes. This choice satisfies the boundary conditions f(0)=1 (free‑flow regime) and f(ρ_max)=ℓ_min/ℓ₀ (maximum congestion).

Extensive simulations are performed across a wide range of densities (0.05 ≤ ρ_real ≤ 0.9). The calibrated models reproduce the characteristic shape of real‑world fundamental diagrams: a linear increase of flow at low densities, a peak near the critical density, and a rapid decline toward zero as ρ_real approaches ρ_max. In contrast, traditional fixed‑cell CA models either overestimate flow in the congested regime or fail to capture the sharp drop near capacity. The authors validate their results against traffic measurements from several highways (e.g., Japanese expressways and German Autobahns), achieving a quantitative match within experimental error. Sensitivity analysis shows that modest variations (±5 %) in the polynomial coefficients do not significantly alter the overall diagram, confirming robustness.

The discussion highlights the generality of the approach: any CA model that represents vehicles as particles on a lattice can adopt the same density‑dependent cell‑size calibration. This includes the Nagel‑Schreckenberg model, the Krauß‑Pottmeier model, and multi‑lane extensions. Moreover, the method lends itself to real‑time traffic management: online density estimates could dynamically adjust ℓ(ρ), enabling more accurate short‑term predictions for adaptive signal control or autonomous‑vehicle platooning.

In conclusion, by introducing a simple yet physically motivated mapping between model particles and real vehicles, the authors bridge the gap between abstract CA dynamics and observable traffic phenomena. The calibrated ASEP reproduces realistic flow‑density relationships, demonstrating that density‑dependent cell sizing is a powerful tool for enhancing the fidelity of traffic simulations. Future work is suggested on incorporating heterogeneous vehicle lengths, multi‑lane interactions, and coupling with traffic‑signal models to further extend the applicability of the calibration framework.
