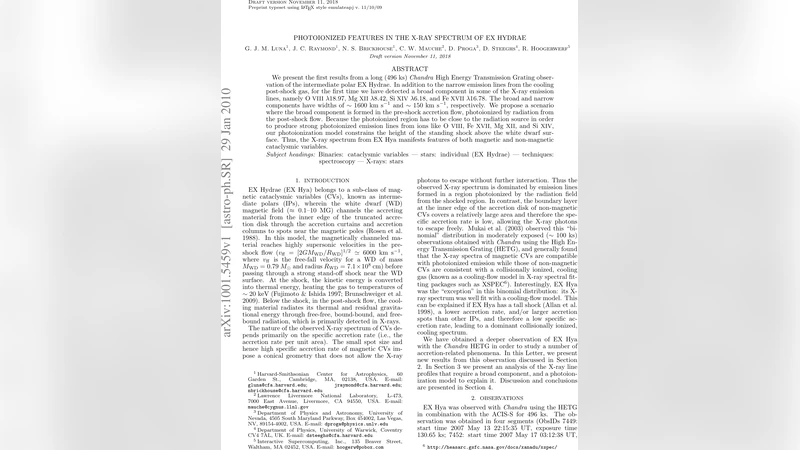

Photoionized features in the X-ray spectrum of EX Hydrae

We present the first results from a long (496 ks) Chandra High Energy Transmission Grating observation of the intermediate polar EX Hydrae. In addition to the narrow emission lines from the cooling post-shock gas, for the first time we have detected a broad component in some of the X-ray emission lines, namely O VIII 18.97, Mg XII 8.42, Si XIV 6.18, and Fe XVII 16.78. The broad and narrow components have widths of ~ 1600 km s^-1 and ~ 150 km s^-1, respectively. We propose a scenario where the broad component is formed in the pre-shock accretion flow, photoionized by radiation from the post-shock flow. Because the photoionized region has to be close to the radiation source in order to produce strong photoionized emission lines from ions like O VIII, Fe XVII, Mg XII, and Si XIV, our photoionization model constrains the height of the standing shock above the white dwarf surface. Thus, the X-ray spectrum from EX Hya manifests features of both magnetic and non-magnetic cataclysmic variables.

💡 Research Summary

This paper presents the analysis of a deep (496 ks) Chandra High‑Energy Transmission Grating (HETG) observation of the intermediate polar cataclysmic variable EX Hydrae (EX Hya). While previous X‑ray studies of EX Hya have shown only narrow emission lines (full‑width at half‑maximum, FWHM ≈150 km s⁻¹) arising from the cooling post‑shock plasma, the new data reveal, for the first time, a broad component (FWHM ≈1600 km s⁻¹) in four strong H‑like lines: O VIII λ 18.97 Å, Mg XII λ 8.42 Å, Si XIV λ 6.18 Å, and Fe XVII λ 16.78 Å. The authors demonstrate that the broad wings are not instrumental artifacts by (i) detecting them simultaneously in both the HEG and MEG arms, (ii) showing their absence in a comparably deep observation of the non‑magnetic pre‑main‑sequence star TW Hya, and (iii) performing 10 000 Monte‑Carlo simulations that indicate a <0.1 % probability of reproducing the observed χ² improvement with a single‑Gaussian model. Consequently, the broad components are established at >99.9 % confidence.

The line widths cannot be explained by thermal Doppler broadening: a temperature of ≈80 keV would be required, far exceeding the measured post‑shock electron temperature (~20 keV). The authors therefore explore a photoionization scenario. In this picture, the pre‑shock accretion flow, falling at the free‑fall velocity (~6000 km s⁻¹), is illuminated by the intense X‑ray continuum emitted by the hot post‑shock column. The ionization parameter ξ = L_X/(n r²) must be of order a few × 10² erg cm s⁻¹ to produce the observed high‑ionization species (O VIII, Mg XII, Si XIV, Fe XVII). Assuming a dipolar magnetic field, the pre‑shock density scales as n ∝ r⁻⁵ᐟ², so ξ drops sharply a short distance above the shock, confining the photoionized region to a thin layer just above the standing shock. This geometry naturally yields line widths of order 2000 km s⁻¹, matching the observations.

To quantify the scenario, the authors construct four simple one‑dimensional photoionization models (A–D) that differ only in the assumed accretion spot radius (r_spot). Using a white‑dwarf mass M_WD = 0.79 M_⊙, radius R_WD = 7.1 × 10⁸ cm, and X‑ray luminosity L_X = 2.6 × 10³² erg s⁻¹ (distance 64 pc), they compute the pre‑shock base density n₀, electron‑scattering optical depth τ_e, shock height h_shock, and the predicted fluxes of the broad lines. All models reproduce the observed O VIII flux, but underpredict the Fe XVII, Mg XII, and Si XIV fluxes by factors of 2–30, reflecting the limitations of a static, 1‑D treatment that neglects time‑dependent ionization, compressional heating, and complex geometry. Nevertheless, the models constrain the shock height to roughly 0.1–0.3 R_WD and the pre‑shock density to 10¹³–10¹⁴ cm⁻³, consistent with a “tall shock” configuration previously suggested for EX Hya.

The detection of a photoionized broad component alongside the dominant collisionally‑ionized narrow lines demonstrates that EX Hya exhibits spectral characteristics of both magnetic (IP) and non‑magnetic cataclysmic variables. The tall shock reduces the specific accretion rate (mass flux per unit area), allowing the post‑shock region to be collisionally dominated, while the pre‑shock flow still produces a measurable photoionized signature. This dual nature explains why EX Hya was an outlier in earlier surveys that classified magnetic CVs as photoionized and non‑magnetic CVs as collisionally ionized.

In summary, the paper provides (1) robust observational evidence for broad X‑ray line components in EX Hya, (2) a physically motivated photoionization model that locates the emitting region in the pre‑shock flow just above the standing shock, (3) quantitative constraints on shock height and pre‑shock density, and (4) a compelling case that EX Hya bridges the spectral gap between magnetic and non‑magnetic cataclysmic variables. The work highlights the importance of deep, high‑resolution X‑ray spectroscopy for probing the microphysics of accretion shocks and suggests that future multi‑wavelength and three‑dimensional radiation‑hydrodynamic simulations will be essential to fully capture the interplay of collisionally‑ and photo‑ionized emission in intermediate polars.
