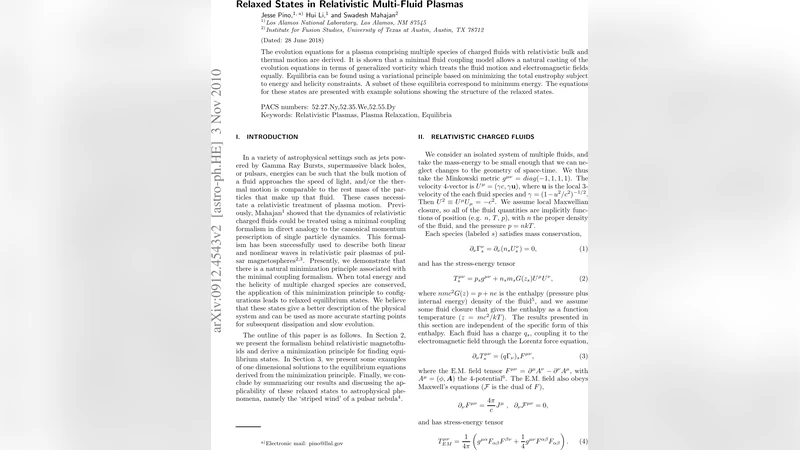

Relaxed States in Relativistic Multi-Fluid Plasmas

The evolution equations for a plasma comprising multiple species of charged fluids with relativistic bulk and thermal motion are derived. It is shown that a minimal fluid coupling model allows a natural casting of the evolution equations in terms of generalized vorticity which treats the fluid motion and electromagnetic fields equally. Equilibria can be found using a variational principle based on minimizing the total enstrophy subject to energy and helicity constraints. A subset of these equilibria correspond to minimum energy. The equations for these states are presented with example solutions showing the structure of the relaxed states.

💡 Research Summary

The paper develops a comprehensive theoretical framework for describing plasmas composed of several charged fluid species that may possess relativistic bulk velocities and relativistic thermal motions. Starting from the relativistic fluid equations for each species—characterized by particle density, four‑velocity, pressure, and temperature—the authors introduce a minimal coupling to the electromagnetic field. This coupling yields a natural definition of the total current and charge density as sums over the individual fluid contributions.

A central innovation is the introduction of a “generalized vorticity” vector for each species, Ωₛ = B + (γₛ mₛ c/eₛ) ∇×(γₛ vₛ), which combines the magnetic field B with the fluid’s relativistic vorticity. In this form the evolution equations for each species reduce to a simple conservation law: ∂ₜΩₛ + ∇×(Ωₛ×vₛ) = 0. This compact representation treats the electromagnetic field and fluid motion on an equal footing, extending the familiar vorticity conservation of non‑relativistic MHD to a fully relativistic, multi‑fluid context.

To determine the relaxed (or equilibrium) states that a turbulent plasma may settle into, the authors formulate a variational principle. They define the total enstrophy E = Σₛ∫Ωₛ·Ωₛ d³x and seek its extremum while holding two physically conserved quantities fixed: the total energy H (including kinetic, internal, and electromagnetic contributions) and the total helicity K = Σₛ∫A·Ωₛ d³x, where A is the vector potential. Introducing Lagrange multipliers α (for energy) and β (for helicity), the functional to be minimized is F = E – αH – βK. Setting δF = 0 yields a set of Euler‑Lagrange equations that relate the generalized vorticity of each species to the magnetic field and vector potential. When β = 0 the solution corresponds to a pure minimum‑energy state; for β ≠ 0 the solution represents a broader class of helicity‑constrained relaxed states.

The paper then presents two illustrative solutions. The first is a one‑dimensional planar configuration involving only electrons and protons. In this case the electron and proton generalized vorticities are oppositely directed, producing a partial cancellation of magnetic and fluid rotation contributions. Numerical integration shows that the system satisfies both the variational conditions and the species‑specific conservation laws, yielding a self‑consistent profile of magnetic field, fluid velocities, and pressure. The second example is a spherically symmetric three‑dimensional configuration. Here a strong magnetic core is surrounded by a region where the generalized vorticity decays radially. The solution again satisfies the Euler‑Lagrange equations, and the resulting fields display a minimum‑energy distribution that is reminiscent of magnetically confined astrophysical jets or pulsar wind nebulae.

Key insights emerging from the analysis are: (1) Generalized vorticity provides a unified language for describing electromagnetic and fluid dynamics in relativistic multi‑fluid plasmas, preserving a simple conservation law despite the complexity of multiple species and relativistic effects. (2) The enstrophy‑minimization variational principle offers a robust method for predicting the final relaxed configuration of a turbulent plasma, extending the classic Taylor relaxation theory to relativistic, multi‑fluid regimes. (3) Minimum‑energy solutions derived here reproduce structural features observed in high‑energy astrophysical environments, suggesting that such relaxed states may be realized in nature. (4) By explicitly incorporating relativistic thermal pressure and species‑dependent mass‑to‑charge ratios, the framework overcomes limitations of traditional non‑relativistic MHD and can be applied to the study of pulsar winds, relativistic jets, and laboratory laser‑produced plasmas. (5) The variational approach also yields practical boundary and initial conditions that can be implemented in numerical simulations or experimental designs, facilitating direct testing of the theory.

In conclusion, the authors have provided a mathematically elegant and physically insightful extension of plasma relaxation theory to the relativistic, multi‑fluid domain. Their generalized vorticity formalism and enstrophy‑based variational principle together furnish a powerful tool for exploring equilibrium and near‑equilibrium structures in both astrophysical and laboratory plasmas where relativistic effects are essential.
