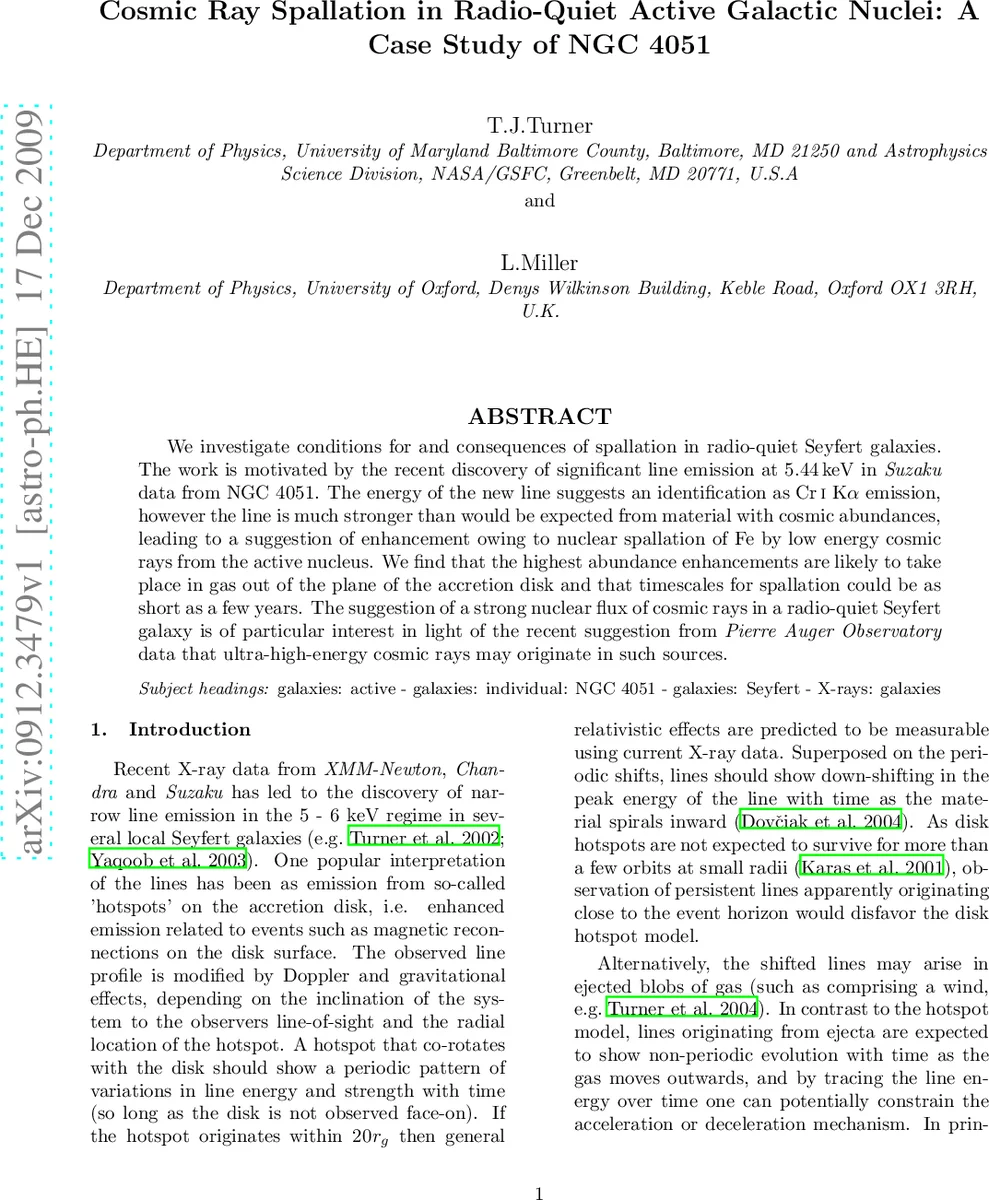

Cosmic Ray Spallation in Radio-Quiet Active Galactic Nuclei: A Case Study of NGC 4051

We investigate conditions for and consequences of spallation in radio-quiet Seyfert galaxies. The work is motivated by the recent discovery of significant line emission at 5.44 keV in Suzaku data from NGC 4051. The energy of the new line suggests an identification as Cr I Ka emission, however the line is much stronger than would be expected from material with cosmic abundances, leading to a suggestion of enhancement owing to nuclear spallation of Fe by low energy cosmic rays from the active nucleus. We find that the highest abundance enhancements are likely to take place in gas out of the plane of the accretion disk and that timescales for spallation could be as short as a few years. The suggestion of a strong nuclear flux of cosmic rays in a radio-quiet Seyfert galaxy is of particular interest in light of the recent suggestion from Pierre Auger Observatory data that ultra-high-energy cosmic rays may originate in such sources.

💡 Research Summary

This paper investigates the possibility that the unusually strong 5.44 keV emission line observed in the Seyfert 1 galaxy NGC 4051 is produced by cosmic‑ray spallation of iron nuclei, leading to an enhanced abundance of chromium (Cr I Kα). Suzaku observations from 2005 and 2008 reveal a line at 5.44 keV with a flux of ≈5 × 10⁻⁶ ph cm⁻² s⁻¹ and an equivalent width of ~46 eV, persisting over several years and appearing in all three XIS detectors. The line’s strength relative to the Fe Kα line (equivalent width ≈195 eV) implies an Fe/Cr ratio of 4.2 ± 1.6, a factor of ~30 higher than the cosmic‑abundance ratio (≈3100).

The authors propose that low‑energy cosmic‑ray protons (30–200 MeV) accelerated near the active nucleus interact with dense gas, causing spallation of Fe into lighter nuclei (Cr, Mn, V, Ti). Laboratory cross‑sections give effective values of ≈560 mb for Cr and ≈247 mb for Mn after accounting for decay channels. In the “thick‑target” regime—where the gas column density N_H ≳ 10²⁴ cm⁻²—protons lose energy mainly through Coulomb collisions, ensuring that essentially all incident cosmic‑ray energy is deposited locally.

The spallation rate per target nucleus is expressed as
R_ij = 4π∫σ_ij(E) J(E) dE,
where J(E) is the proton intensity inside the target. For a thick target, J(E) ∝ L_CR/(4π M) · f(E), with L_CR the total kinetic power in cosmic rays, M the mass of the target gas, and f(E) a function of the assumed power‑law spectrum (index Γ, low and high energy cut‑offs). The exposure time τ is taken as the accretion timescale τ ≈ M/Ṁ, linking the gas mass to the black‑hole accretion rate.

Assuming a cosmic‑ray production efficiency η≈0.1 of the accretion power (L_CR = η Ṁ c²) and a typical Seyfert X‑ray luminosity L_X≈10⁴³ erg s⁻¹, the authors find that L_CR/L_X in the range 0.1–1 is plausible. Under these conditions, two plausible geometries are examined:

1. Compact, high‑density clouds near the disk – with M≈4 × 10⁻⁴ M_⊙, radius ≈2 × 10¹⁴ cm (≈0.06 light‑days), and column N_H≈10²⁴–10²⁵ cm⁻². For τ≈1 yr, the calculated Cr production yields an Fe/Cr ratio consistent with the observed value.

2. Extended disk wind or torus material – covering a large solid angle (Ω≈4π) and possessing M≈10⁻³–10⁻² M_⊙. Here τ can be several to tens of years, still allowing the same enhancement with the same L_CR.

Both scenarios require a sustained low‑energy proton flux, which the authors argue can be generated in radio‑quiet AGN via magnetic reconnection in the corona, Blandford‑Payne‑type magnetocentrifugal acceleration, or shock acceleration in the inner accretion flow. The required proton energies (β≈0.6) are only mildly relativistic, making the mechanism energetically feasible.

The paper also connects these findings to the broader context of ultra‑high‑energy cosmic‑ray (UHECR) origins. Recent Auger results suggest a correlation between UHECR arrival directions and nearby AGN, including radio‑quiet Seyferts. If such nuclei can produce a substantial low‑energy cosmic‑ray component, they may also host the conditions needed for accelerating particles to >10¹⁸ eV, linking the spallation signatures to the UHECR puzzle.

In conclusion, the detection of a bright Cr I Kα line in NGC 4051 provides compelling evidence for nuclear spallation in a radio‑quiet Seyfert galaxy. The authors demonstrate that, given realistic proton luminosities and dense gas located either in the inner disk atmosphere or in a disk wind, the observed Cr enhancement can be produced on timescales of a few years. This work motivates future high‑resolution X‑ray spectroscopy (e.g., XRISM, Athena) to search for other spallation‑induced lines (Mn, V, Ti) and to better constrain the geometry and energetics of the cosmic‑ray emitting region, thereby shedding light on both AGN physics and the origin of cosmic rays.
