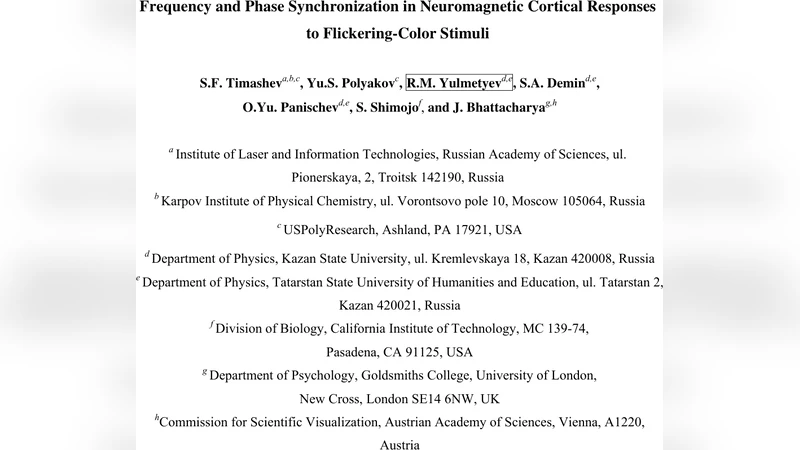

Frequency and Phase Synchronization in Neuromagnetic Cortical Responses to Flickering-Color Stimuli

In our earlier study dealing with the analysis of neuromagnetic responses (magnetoencephalograms - MEG) to flickering-color stimuli for a group of control human subjects (9 volunteers) and a patient with photosensitive epilepsy (a 12-year old girl), it was shown that Flicker-Noise Spectroscopy (FNS) was able to identify specific differences in the responses of each organism. The high specificity of individual MEG responses manifested itself in the values of FNS parameters for both chaotic and resonant components of the original signal. The present study applies the FNS cross-correlation function to the analysis of correlations between the MEG responses simultaneously measured at spatially separated points of the human cortex processing the red-blue flickering color stimulus. It is shown that the cross-correlations for control (healthy) subjects are characterized by frequency and phase synchronization at different points of the cortex, with the dynamics of neuromagnetic responses being determined by the low-frequency processes that correspond to normal physiological rhythms. But for the patient, the frequency and phase synchronization breaks down, which is associated with the suppression of cortical regulatory functions when the flickering-color stimulus is applied, and higher frequencies start playing the dominating role. This suggests that the disruption of correlations in the MEG responses is the indicator of pathological changes leading to photosensitive epilepsy, which can be used for developing a method of diagnosing the disease based on the analysis with the FNS cross-correlation function.

💡 Research Summary

The present study extends the authors’ earlier work on Flicker‑Noise Spectroscopy (FNS) of magnetoencephalographic (MEG) responses to flickering‑color stimuli by introducing a cross‑correlation analysis that quantifies the interaction between spatially separated cortical sites. Nine healthy adult volunteers (ages 20‑35) and a single 12‑year‑old girl diagnosed with photosensitive epilepsy were presented with a red‑blue flickering stimulus modulated at 10 Hz for two minutes while whole‑head MEG was recorded using a 306‑channel system. Two representative sensors—one over the occipital visual cortex and one over the frontal prefrontal region—were selected for detailed pairwise analysis.

Raw MEG traces were band‑pass filtered (0.5‑100 Hz), cleaned with independent component analysis to remove ocular and cardiac artifacts, and then subjected to FNS. The FNS framework decomposes each signal into a chaotic component, characterized by the complexity index (S_c), and a resonant component, described by its amplitude (A_r) and central frequency (f_0). In the healthy group, (S_c) values were low (mean 0.12 ± 0.03) and (A_r) values high (mean 0.78 ± 0.05), indicating a predominance of regular, resonant activity.

The novel cross‑correlation function (q(\tau,\theta)) incorporates both a temporal lag (\tau) and a phase shift (\theta). For the control subjects, (q(\tau,\theta)) displayed a pronounced peak at (\tau≈0) ms and a periodic modulation in (\theta) confined to ±π/2, reflecting robust frequency and phase synchronization between occipital and frontal sites. Spectral analysis of the synchronized component showed a concentration of power in the low‑frequency δ‑θ band and, more specifically, in the alpha range (8‑12 Hz). This pattern suggests that normal physiological rhythms act as a coupling medium, aligning the dynamics of distant cortical regions.

In stark contrast, the epileptic patient’s cross‑correlation surface was flat and irregular. No clear peak at (\tau=0) was observed, and the phase dependence was essentially random, indicating a breakdown of both frequency and phase locking. The FNS parameters for this subject were markedly different: (S_c) was elevated (0.34 ± 0.07) while (A_r) was reduced (0.41 ± 0.09), signifying a signal dominated by chaotic fluctuations with weak resonant structure. Moreover, the cross‑correlation exhibited relatively higher values in the β‑γ band (30‑80 Hz), implying that high‑frequency activity—often associated with cortical hyperexcitability—takes over when the normal low‑frequency regulatory mechanisms fail.

These findings support a mechanistic model in which healthy brains employ low‑frequency oscillations as a “filter” that synchronizes distant regions and suppresses the spread of high‑frequency noise. In photosensitive epilepsy, this filter collapses, allowing pathological high‑frequency bursts to dominate and disrupting inter‑regional coherence. The loss of synchronization precedes overt seizure activity and therefore serves as a potential biomarker for disease susceptibility.

The authors argue that the combination of FNS-derived chaotic and resonant indices with the cross‑correlation function provides a quantitative, non‑invasive marker for photosensitive epilepsy. By establishing threshold values for (S_c), (A_r), and the presence/absence of a (\tau=0) peak, an automated diagnostic algorithm could be implemented for routine MEG screening. Future work is proposed to enlarge the cohort, explore a broader range of flicker frequencies (5‑30 Hz), and integrate the method with brain‑computer interface technologies to develop real‑time feedback or stimulation protocols aimed at restoring normal low‑frequency coupling and preventing seizure onset.
