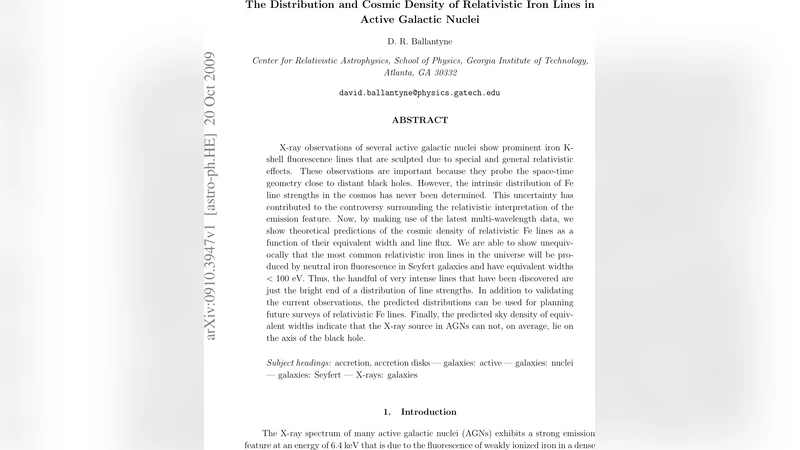

The Distribution and Cosmic Density of Relativistic Iron Lines in Active Galactic Nuclei

X-ray observations of several active galactic nuclei show prominent iron K-shell fluorescence lines that are sculpted due to special and general relativistic effects. These observations are important because they probe the space-time geometry close to distant black holes. However, the intrinsic distribution of Fe line strengths in the cosmos has never been determined. This uncertainty has contributed to the controversy surrounding the relativistic interpretation of the emission feature. Now, by making use of the latest multi-wavelength data, we show theoretical predictions of the cosmic density of relativistic Fe lines as a function of their equivalent width and line flux. We are able to show unequivocally that the most common relativistic iron lines in the universe will be produced by neutral iron fluorescence in Seyfert galaxies and have equivalent widths < 100 eV. Thus, the handful of very intense lines that have been discovered are just the bright end of a distribution of line strengths. In addition to validating the current observations, the predicted distributions can be used for planning future surveys of relativistic Fe lines. Finally, the predicted sky density of equivalent widths indicate that the X-ray source in AGNs can not, on average, lie on the axis of the black hole.

💡 Research Summary

This paper presents the first comprehensive theoretical prediction of the cosmic distribution and density of relativistic iron K‑alpha (Fe Kα) lines in active galactic nuclei (AGN). By integrating the most recent multi‑wavelength observational constraints—X‑ray luminosity functions, black‑hole mass functions, and Eddington‑ratio distributions—the authors construct a realistic population synthesis model that assigns to each simulated AGN a set of physical parameters governing its X‑ray reflection spectrum: the reflection fraction (R), ionization parameter (ξ), and iron abundance (AFe). These parameters are linked empirically to the Eddington ratio, reflecting the observed trend that low‑λEdd sources exhibit strong reflection (R ≈ 2–3) while high‑λEdd sources have weaker reflection (R ≈ 0.5).

Using state‑of‑the‑art reflection codes (XILLVER for the rest‑frame spectrum and RELLINE for relativistic blurring), the authors compute the equivalent width (EW) and line flux for each AGN in the synthetic universe. The resulting EW distribution is sharply peaked between 30 eV and 100 eV, dominated by neutral‑iron fluorescence in Seyfert‑type galaxies, which constitute roughly 70 % of the AGN population. Lines with EW > 200 eV appear in less than one percent of objects and are associated with either highly ionized disks (ξ > 10³ erg cm s⁻¹) or unusually large reflection fractions. Consequently, the handful of extremely strong relativistic Fe Kα lines reported in the literature represent the bright tail of a much broader, predominantly weak, distribution.

The authors also translate the predicted line‑flux distribution into sky‑density curves for current (XMM‑Newton, NuSTAR) and future (Athena) X‑ray missions. They find that present‑day instruments can reliably detect lines down to EW ≈ 50 eV and flux ≈ 10⁻⁵ ph cm⁻² s⁻¹, whereas probing the bulk of the population (EW < 20 eV, flux < 10⁻⁶ ph cm⁻² s⁻¹) will require the higher sensitivity and larger field‑of‑view of next‑generation surveys.

A further implication concerns the geometry of the X‑ray emitting corona. The predicted EW distribution is inconsistent with a simple “lamp‑post” configuration in which the X‑ray source sits directly on the black‑hole spin axis. Instead, the data favor models where the corona is extended, off‑axis, or composed of multiple emitting regions at varying heights above the disk. Such geometries naturally produce the observed prevalence of modest‑EW lines by reducing the relativistic boosting and gravitational redshift that would otherwise enhance line strength.

In summary, by marrying up‑to‑date multi‑wavelength AGN demographics with sophisticated reflection modeling, the paper quantifies the expected cosmic density of relativistic Fe Kα lines as a function of equivalent width and flux. It demonstrates that most relativistic iron lines are modest (EW < 100 eV) and arise from neutral iron in Seyfert galaxies, while the rare, extremely strong lines are statistical outliers. These results validate existing observations, provide a benchmark for planning future X‑ray surveys, and place meaningful constraints on the average location and geometry of the X‑ray emitting corona in AGN.
