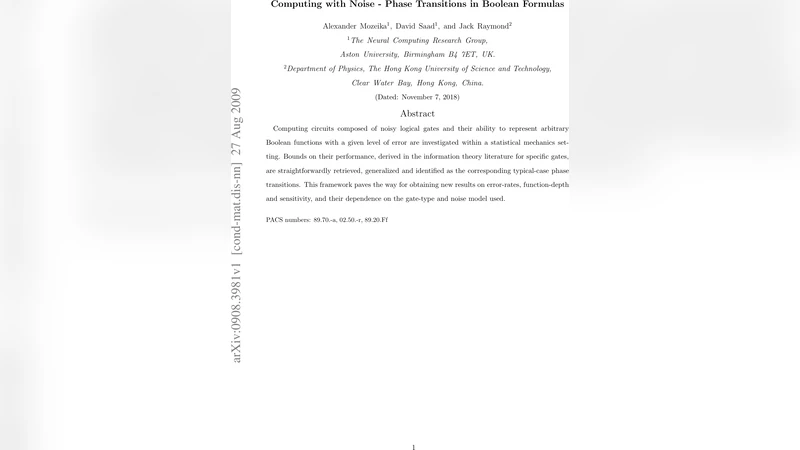

Computing with Noise - Phase Transitions in Boolean Formulas

Computing circuits composed of noisy logical gates and their ability to represent arbitrary Boolean functions with a given level of error are investigated within a statistical mechanics setting. Bounds on their performance, derived in the information theory literature for specific gates, are straightforwardly retrieved, generalized and identified as the corresponding typical-case phase transitions. This framework paves the way for obtaining new results on error-rates, function-depth and sensitivity, and their dependence on the gate-type and noise model used.

💡 Research Summary

The paper “Computing with Noise – Phase Transitions in Boolean Formulas” investigates how digital circuits built from noisy logical gates can represent arbitrary Boolean functions when a certain error probability is tolerated. The authors adopt a statistical‑mechanics framework, mapping each logical gate onto a spin variable and the stochastic flipping of a gate’s output onto thermal fluctuations. By employing the replica method and evaluating the average free energy, they derive self‑consistent equations for the macroscopic error rate (the order parameter) and identify two stable solutions: a low‑error “ordered” phase and a high‑error “disordered” phase. The transition between these phases occurs at a critical noise level εc, which depends on the gate type, the connectivity (fan‑in), and the depth of the Boolean formula.

Key contributions include:

1. Re‑derivation of known information‑theoretic bounds – The classic bounds on reliable computation with noisy gates (e.g., von Neumann’s and Pippenger’s results) appear naturally as the condition ε < εc for the ordered phase. This shows that those bounds are not merely worst‑case guarantees but typical‑case phase‑transition thresholds.

2. Generalization to arbitrary gate families – By varying the logical operation (NAND, NOR, multi‑input AND/OR, etc.) the authors compute distinct εc values. Multi‑input gates exhibit higher εc because the averaging over several inputs mitigates individual flip errors, whereas single‑input NAND gates have the lowest tolerance.

3. Depth‑dependent degradation – The analysis reveals that the critical noise level scales roughly as εc ∝ 1/D, where D is the depth of the Boolean formula (the number of gate layers). Consequently, deeper circuits become exponentially more fragile, establishing a quantitative “function‑depth limit” for reliable computation under a given noise budget.

4. Extension to continuous noise models – Beyond the simple binary flip probability, the authors treat Gaussian additive noise on the gate’s internal field. They find that a similar ordered‑disordered transition persists, with a critical standard deviation σc that again depends on gate arity and circuit topology.

5. Sensitivity (noise‑sensitivity) metric – The paper introduces a sensitivity exponent that quantifies how rapidly the error propagates for a given Boolean function. High‑degree polynomial functions have large sensitivity and thus cross the phase boundary at lower ε, while linear or simple conjunctions are robust.

6. Practical design implications – The phase‑transition viewpoint provides concrete guidelines: (i) choose gate families with higher εc when operating near the noise ceiling; (ii) limit circuit depth to stay within the ordered phase; (iii) evaluate the sensitivity of target functions to decide whether additional error‑correction or redundancy is required.

7. Future directions – The authors suggest extending the framework to non‑tree (random graph) topologies, time‑correlated noise (e.g., flicker noise), and even quantum logical gates, where analogous phase‑transition phenomena could inform fault‑tolerant quantum computation.

In summary, the work bridges information theory and statistical physics, showing that the ability of noisy circuits to compute is governed by a typical‑case phase transition. By explicitly calculating critical noise levels for various gate types and depths, it offers a unified, quantitative foundation for designing reliable hardware in environments where noise cannot be ignored, and it opens a pathway to novel results on error rates, function depth, and sensitivity that were previously inaccessible through purely combinatorial analyses.
