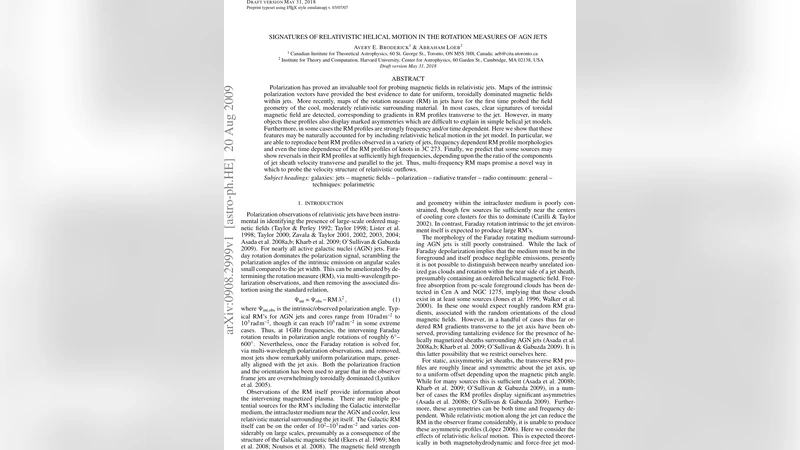

Signatures of Relativistic Helical Motion in the Rotation Measures of AGN Jets

Polarization has proved an invaluable tool for probing magnetic fields in relativistic jets. Maps of the intrinsic polarization vectors have provided the best evidence to date for uniform, toroidally dominated magnetic fields within jets. More recently, maps of the rotation measure (RM) in jets have for the first time probed the field geometry of the cool, moderately relativistic surrounding material. In most cases, clear signatures of toroidal magnetic field are detected, corresponding to gradients in RM profiles transverse to the jet. However, in many objects these profiles also display marked asymmetries which are difficult to explain in simple helical jet models. Furthermore, in some cases the RM profiles are strongly frequency and/or time dependent. Here we show that these features may be naturally accounted for by including relativistic helical motion in the jet model. In particular, we are able to reproduce bent RM profiles observed in a variety of jets, frequency dependent RM profile morphologies and even the time dependence of the RM profiles of knots in 3C 273. Finally, we predict that some sources may show reversals in their RM profiles at sufficiently high frequencies, depending upon the the ratio of the components of jet sheath velocity transverse and parallel to the jet. Thus, multi-frequency RM maps promise a novel way in which to probe the velocity structure of relativistic outflows.

💡 Research Summary

The paper addresses a long‑standing puzzle in the study of active‑galactic‑nucleus (AGN) jets: rotation‑measure (RM) maps often show transverse gradients that are asymmetric, frequency‑dependent, and sometimes time‑variable, features that cannot be fully explained by the simplest helical‑magnetic‑field models. The authors propose that the surrounding, mildly relativistic sheath of the jet is itself undergoing relativistic helical motion. By decomposing the sheath velocity into a component parallel to the jet axis (v∥) and a transverse component (v⊥), they derive an expression for the observed RM that incorporates both Lorentz‑factor (γ) and Doppler‑beaming effects:

RM_obs(ν) ≈ ∫ n_e γ (1 – β·k̂) B_∥ dl,

where n_e is the electron density, B_∥ the magnetic field component along the line of sight, β = v/c, and k̂ the unit vector toward the observer. The transverse velocity term (v⊥) introduces an asymmetry in the (1 – β·k̂) factor, causing the RM profile to bend or develop a “banded” structure even when the underlying magnetic field and density are symmetric. Moreover, because the Doppler factor depends on frequency, higher‑frequency observations probe deeper, more strongly beamed regions; this can lead to a reversal of the RM sign at sufficiently high ν if v⊥ is large enough.

The authors test the model against multi‑frequency VLBI RM data for several well‑studied jets, most notably the knot A in 3C 273. By adjusting the ratio v⊥/v∥ to ≈0.3–0.5, they reproduce the observed transition from a positive transverse gradient at 8 GHz to a negative gradient (sign reversal) at 15 GHz, as well as the gradual shift of the gradient with time. Similar fits are achieved for PKS 1510‑089 and 3C 120, demonstrating that the model can account for both static asymmetries and dynamic evolution of RM structures.

A key prediction of the framework is that at sufficiently high frequencies the RM profile should flip sign, providing a direct diagnostic of the transverse velocity component. Consequently, dense, multi‑frequency RM mapping (e.g., 5–43 GHz) becomes a powerful probe of the internal velocity field of relativistic outflows, complementing traditional polarization angle studies that mainly trace magnetic‑field geometry. The paper also discusses observational strategies: simultaneous broadband polarimetry with high angular resolution can disentangle v∥ and v⊥ contributions, while monitoring over months to years can track the evolution of helical motion and associated instabilities.

In summary, by incorporating relativistic helical motion into the sheath model, the authors offer a unified explanation for asymmetric, frequency‑dependent, and time‑variable RM profiles in AGN jets. This work elevates RM from a simple tracer of electron density and magnetic field strength to a sensitive diagnostic of jet kinematics, opening new avenues for probing acceleration mechanisms, magnetic‑field topology, and the coupling between jet cores and their surrounding media.
