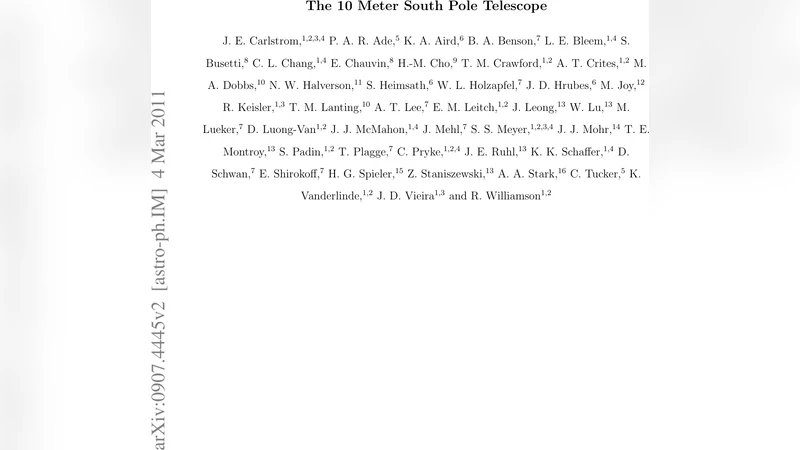

The 10 Meter South Pole Telescope

The South Pole Telescope (SPT) is a 10 m diameter, wide-field, offset Gregorian telescope with a 966-pixel, multi-color, millimeter-wave, bolometer camera. It is located at the Amundsen-Scott South Pole station in Antarctica. The design of the SPT emphasizes careful control of spillover and scattering, to minimize noise and false signals due to ground pickup. The key initial project is a large-area survey at wavelengths of 3, 2 and 1.3 mm, to detect clusters of galaxies via the Sunyaev-Zeldovich effect and to measure the small-scale angular power spectrum of the cosmic microwave background (CMB). The data will be used to characterize the primordial matter power spectrum and to place constraints on the equation of state of dark energy. A second-generation camera will measure the polarization of the CMB, potentially leading to constraints on the neutrino mass and the energy scale of inflation.

💡 Research Summary

The South Pole Telescope (SPT) is a 10‑meter diameter, offset Gregorian telescope located at the Amundsen‑Scott South Pole Station, designed specifically to exploit the exceptionally low atmospheric water vapor and stable weather conditions of the Antarctic plateau. Its primary scientific instrument is a 966‑pixel, multi‑color bolometer camera operating at three millimeter‑wave bands (approximately 95 GHz, 150 GHz, and 220 GHz, corresponding to wavelengths of 3 mm, 2 mm, and 1.3 mm). The telescope’s optical layout—an off‑axis primary mirror paired with a secondary that is deliberately decentered—eliminates blockage and reduces diffraction, while a series of carefully engineered baffles and a cold stop suppress spillover and scattering. This design philosophy minimizes ground‑pickup and thermal emission from surrounding structures, keeping the system noise temperature below 10 K and allowing the detectors to approach photon‑noise‑limited performance.

The detector array consists of transition‑edge sensor (TES) bolometers cooled to 0.3 K by a closed‑cycle dilution refrigerator. Each pixel incorporates a planar microstrip antenna that couples incident radiation into the TES, enabling simultaneous measurement in the three frequency bands. The TESs are voltage‑biased and read out with superconducting quantum interference device (SQUID) multiplexers, providing the necessary sensitivity to detect temperature fluctuations of a few microkelvin in the cosmic microwave background (CMB).

The initial scientific program focuses on two complementary goals. First, a large‑area Sunyaev‑Zel’dovich (SZ) survey will map the sky at the three frequencies to identify galaxy clusters out to redshifts z ≈ 2. By measuring the SZ decrement/increment, the survey yields cluster masses independent of redshift, allowing a precise determination of the cluster mass function and its evolution. This, in turn, constrains the amplitude of matter fluctuations (σ₈) and the dark‑energy equation‑of‑state parameter w to the percent level. Second, the same data will be used to extract the small‑scale angular power spectrum of the CMB (multipoles ℓ ≈ 3000), probing the damping tail where secondary anisotropies such as the kinetic SZ effect and CMB lensing become significant. These measurements test the primordial power‑spectrum shape, search for non‑Gaussian signatures, and improve constraints on neutrino masses through their impact on the lensing signal.

A second‑generation camera, currently under development, will add polarization sensitivity. By measuring the faint B‑mode polarization of the CMB, the instrument aims to detect or place stringent upper limits on the tensor‑to‑scalar ratio r at the level of r ≈ 0.01. Such a detection would pinpoint the energy scale of inflation (∼10¹⁶ GeV). Moreover, the combination of temperature and polarization data will tighten constraints on the sum of neutrino masses to Σm_ν < 0.05 eV, exploiting the subtle smoothing of acoustic peaks caused by massive neutrinos.

Data processing employs a real‑time pipeline that performs time‑ordered data filtering, atmospheric noise decorrelation, and map‑making using maximum‑likelihood techniques. Systematic effects such as beam asymmetry, gain drift, and residual ground pickup are modeled and removed through cross‑linking scans and null tests. The final maps are subjected to power‑spectrum estimation with Monte‑Carlo simulations to quantify uncertainties and biases.

In summary, the SPT integrates a purpose‑built optical system, ultra‑low‑noise TES bolometers, and sophisticated analysis methods to deliver high‑precision measurements of both temperature and polarization anisotropies of the CMB. Its SZ cluster survey will refine our understanding of large‑scale structure growth and dark energy, while the forthcoming polarization observations promise breakthroughs in neutrino physics and inflationary cosmology. The telescope thus stands as a premier facility for addressing some of the most fundamental questions in modern astrophysics and cosmology.
