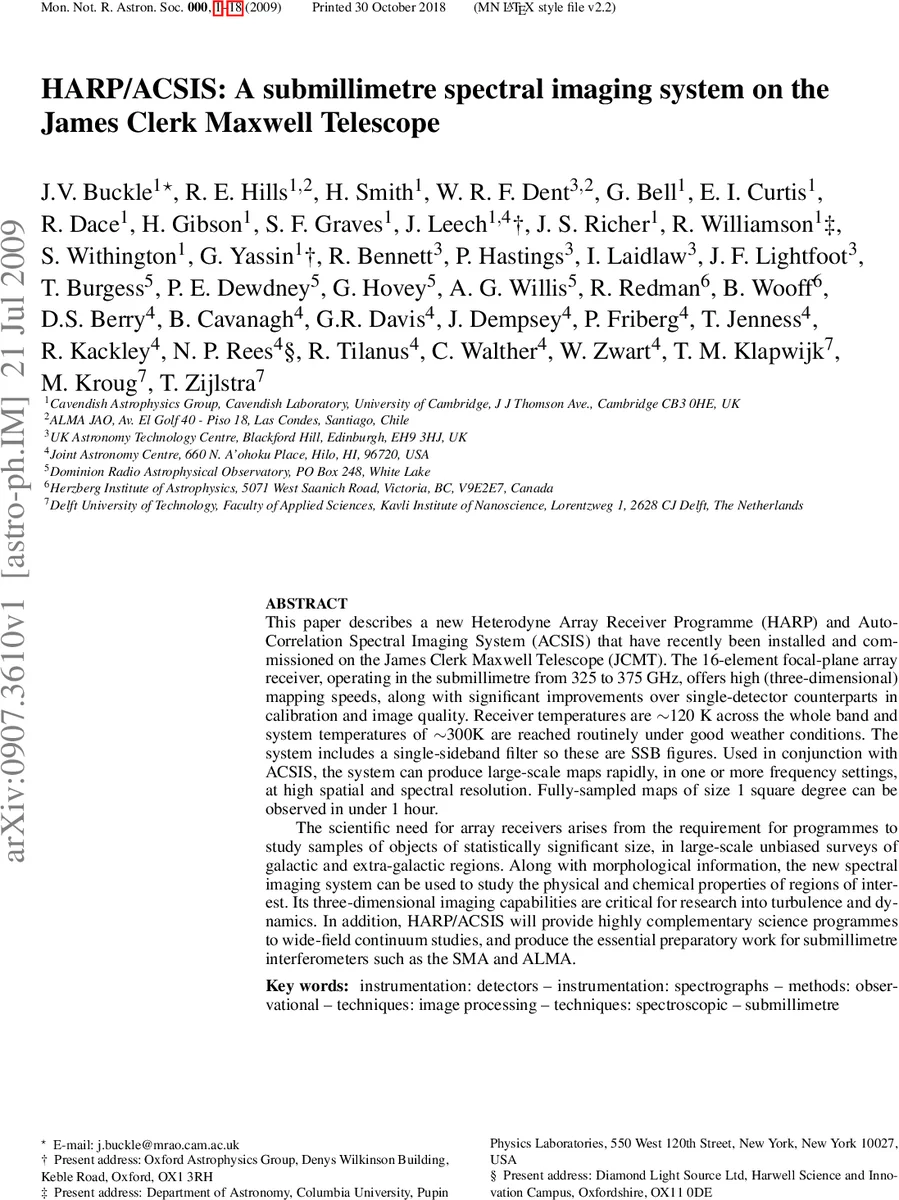

HARP/ACSIS: A submillimetre spectral imaging system on the James Clerk Maxwell Telescope

This paper describes a new Heterodyne Array Receiver Programme (HARP) and Auto-Correlation Spectral Imaging System (ACSIS) that have recently been installed and commissioned on the James Clerk Maxwell Telescope (JCMT). The 16-element focal-plane array receiver, operating in the submillimetre from 325 to 375 GHz, offers high (three-dimensional) mapping speeds, along with significant improvements over single-detector counterparts in calibration and image quality. Receiver temperatures are $\sim$120 K across the whole band and system temperatures of $\sim$300K are reached routinely under good weather conditions. The system includes a single-sideband filter so these are SSB figures. Used in conjunction with ACSIS, the system can produce large-scale maps rapidly, in one or more frequency settings, at high spatial and spectral resolution. Fully-sampled maps of size 1 square degree can be observed in under 1 hour. The scientific need for array receivers arises from the requirement for programmes to study samples of objects of statistically significant size, in large-scale unbiased surveys of galactic and extra-galactic regions. Along with morphological information, the new spectral imaging system can be used to study the physical and chemical properties of regions of interest. Its three-dimensional imaging capabilities are critical for research into turbulence and dynamics. In addition, HARP/ACSIS will provide highly complementary science programmes to wide-field continuum studies, and produce the essential preparatory work for submillimetre interferometers such as the SMA and ALMA.

💡 Research Summary

The paper presents a comprehensive description of the Heterodyne Array Receiver Programme (HARP) and the Auto‑Correlation Spectral Imaging System (ACSIS), two complementary instruments recently installed on the James Clerk Maxwell Telescope (JCMT). HARP is a 16‑pixel focal‑plane array operating in the 325–375 GHz sub‑millimetre band. Each pixel is a superconducting SIS mixer with a 14‑arcsecond beam, arranged in a 4 × 4 grid. The receiver noise temperature is roughly 120 K across the entire band, delivering system temperatures of about 300 K under good atmospheric conditions. A single‑sideband (SSB) filter eliminates image‑band contamination, ensuring that the quoted temperatures are true SSB figures.

ACSIS is the digital back‑end that processes the signals from HARP. It combines a digital correlator with a fast Fourier‑transform spectrometer, offering up to 2 GHz instantaneous bandwidth while maintaining a spectral resolution better than 0.5 km s⁻¹. Real‑time calibration, flagging, and data quality monitoring are built into the software pipeline. In “fast‑mapping” mode the system executes a tessellated raster scan that fully samples a one‑square‑degree field at 30‑arcsecond spacing in less than an hour. This represents an order‑of‑magnitude increase in mapping speed compared with traditional single‑pixel heterodyne receivers.

Key engineering advances include: (1) a low‑loss waveguide network and micro‑scale power divider that deliver uniform local‑oscillator (LO) power to all sixteen mixers; (2) a dual‑level phase‑locking scheme that provides independent LO control for each pixel, reducing inter‑pixel gain variations to below 5 %; and (3) an ultra‑cold cryogenic platform that stabilises the mixers at ~4 K, keeping receiver temperatures stable over long observing runs. The modular design also permits future upgrades to higher frequency bands (400–500 GHz) or the addition of auxiliary back‑ends such as polarisation analysers.

From a scientific perspective, HARP/ACSIS enables rapid, high‑fidelity three‑dimensional (RA, Dec, velocity) imaging of molecular line emission. The authors emphasise its utility for large‑scale, unbiased surveys of Galactic star‑forming regions and extragalactic molecular disks. By simultaneously mapping bright tracers such as CO (3–2), HCN (4–3), and HCO⁺ (4–3) over wide areas, researchers can quantify turbulence, velocity gradients, and chemical variations across entire clouds or galaxy nuclei. The resulting data cubes are ideal for statistical studies of cloud dynamics, for testing theories of turbulence‑driven star formation, and for providing essential preparatory information for interferometers such as the Sub‑Millimeter Array (SMA) and the Atacama Large Millimeter/sub‑millimeter Array (ALMA).

Operational experience reported in the paper shows that the automated calibration routines and real‑time quality control increase observing efficiency by more than 30 %, substantially boosting the JCMT’s scientific output. The system’s high mapping speed, combined with its excellent sensitivity and spectral resolution, makes it a powerful tool for both targeted investigations and large‑area legacy surveys. In summary, HARP/ACSIS delivers a new level of sub‑millimetre spectral imaging capability, marrying rapid, fully sampled mapping with the spectral fidelity required for modern studies of interstellar physics and extragalactic molecular astrophysics.
