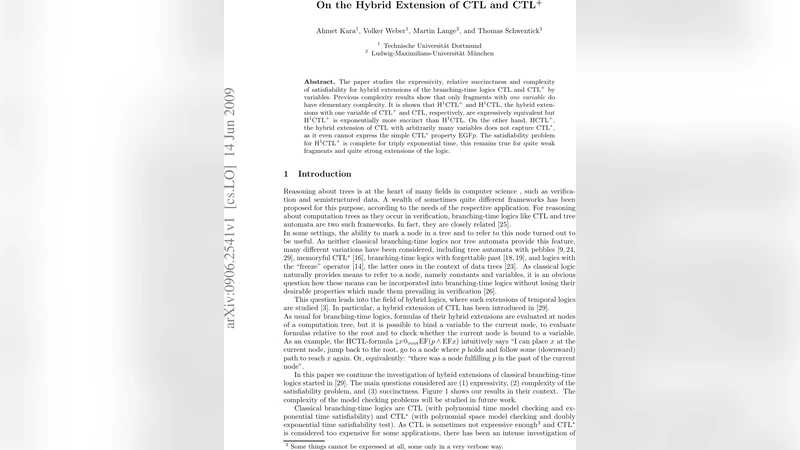

On the Hybrid Extension of CTL and CTL+

The paper studies the expressivity, relative succinctness and complexity of satisfiability for hybrid extensions of the branching-time logics CTL and CTL+ by variables. Previous complexity results show that only fragments with one variable do have elementary complexity. It is shown that H1CTL+ and H1CTL, the hybrid extensions with one variable of CTL+ and CTL, respectively, are expressively equivalent but H1CTL+ is exponentially more succinct than H1CTL. On the other hand, HCTL+, the hybrid extension of CTL with arbitrarily many variables does not capture CTL*, as it even cannot express the simple CTL* property EGFp. The satisfiability problem for H1CTL+ is complete for triply exponential time, this remains true for quite weak fragments and quite strong extensions of the logic.

💡 Research Summary

The paper investigates the expressive power, succinctness, and satisfiability complexity of hybrid extensions of the branching‑time logics CTL and CTL+. Hybrid logics augment a base temporal logic with state variables that can be bound to a current state and later referenced. The authors focus on three families: H1CTL (CTL with one variable), H1CTL+ (CTL+ with one variable), and HCTL+ (CTL with arbitrarily many variables).

First, they establish that H1CTL and H1CTL+ are expressively equivalent. By constructing systematic translations, every formula of H1CTL+ can be rewritten into an equivalent H1CTL formula and vice‑versa. The translation from H1CTL+ to H1CTL proceeds by eliminating the richer path operators of CTL+ (such as arbitrary nesting of “until” and “release”) and encoding them using the more limited CTL operators together with the single state variable. Conversely, any H1CTL formula can be simulated in H1CTL+ because CTL+ subsumes CTL’s temporal operators. Thus, despite the syntactic differences, the two logics define the same class of models.

Second, the authors prove a strict succinctness gap: H1CTL+ can be exponentially more concise than H1CTL. They exhibit families of formulas where the H1CTL+ representation grows linearly with a parameter n, while any equivalent H1CTL formula must have size at least 2^n. The blow‑up originates from the need to unroll the single variable’s ability to “jump” to a previously bound state, which in pure CTL must be simulated by a cascade of nested temporal operators. Consequently, even though the two logics are equally expressive, H1CTL+ offers a dramatically more compact syntax for many natural specifications.

Third, the paper turns to HCTL+, the unrestricted‑variable hybrid extension of CTL. Contrary to intuition, HCTL+ does not capture the full power of CTL*. The authors give a simple counter‑example: the CTL* property EGF p (there exists a path that visits states satisfying p infinitely often). They show that no HCTL+ formula can express this property, because hybrid variables alone cannot enforce the required infinite recurrence without the richer path quantifiers of CTL*. This result demonstrates that adding arbitrarily many variables does not automatically raise the logic to CTL* level; the limitation lies in the underlying branching‑time operators.

The complexity analysis focuses on the satisfiability problem. For H1CTL+, the authors prove triply exponential time (3‑EXP‑TIME) completeness. The lower bound is obtained by a reduction from the word problem for deterministic Turing machines that run in double‑exponential time, encoded using the single variable to simulate the machine’s configuration tape. The upper bound follows a tableau construction that, because of the hybrid binding, must consider an exponential number of possible variable assignments at each step, leading to a triple‑exponential overall bound. Importantly, this high complexity persists even for very weak fragments (e.g., restricting the nesting depth of temporal operators) and for strong extensions (e.g., adding additional modal operators). Thus, the presence of even a single hybrid variable dramatically inflates the decision problem’s difficulty.

The paper is organized as follows. Section 1 reviews CTL, CTL+, and hybrid logic basics, defining the syntax and semantics of H1CTL, H1CTL+, and HCTL+. Section 2 presents the expressive equivalence proofs between H1CTL and H1CTL+. Section 3 develops the succinctness lower bound, providing explicit families of formulas and a combinatorial argument for the exponential blow‑up. Section 4 contains the non‑capturing result for HCTL+, with a detailed proof that EGF p cannot be expressed. Section 5 delivers the complexity analysis, establishing 3‑EXP‑TIME completeness for H1CTL+ satisfiability and discussing the robustness of this bound across fragments and extensions. Section 6 concludes with reflections on the implications for the design of hybrid temporal logics and suggests avenues for future work, such as investigating alternative hybrid operators or identifying maximal decidable fragments with lower complexity.

In summary, the work clarifies that hybrid extensions with a single variable are as expressive as their non‑hybrid counterparts but can be exponentially more succinct, while unrestricted hybrid variables do not bridge the gap to CTL*. Moreover, the satisfiability problem for the one‑variable hybrid logics jumps to triply exponential time, a striking increase that holds across a wide spectrum of sub‑logics. These findings deepen our theoretical understanding of the trade‑offs between expressiveness, succinctness, and computational difficulty in hybrid branching‑time logics.
