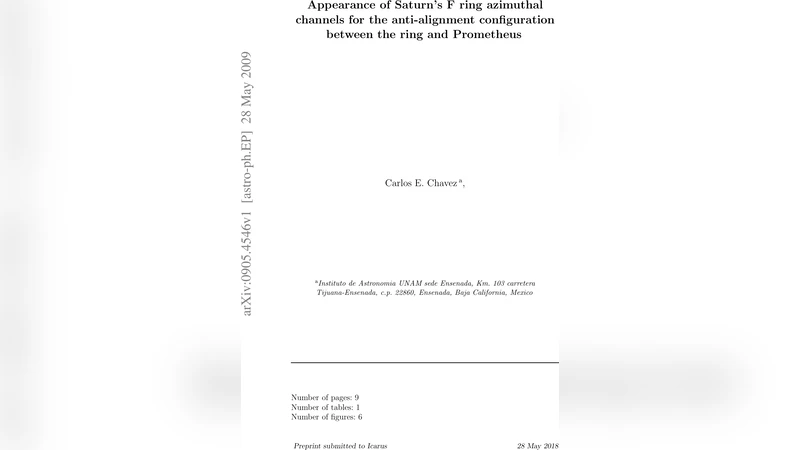

Appearance of Saturns F ring azimuthal channels for the anti-alignment configuration between the ring and Prometheus

In this article we explore the aspect of the F ring with respect to the anti-alignment configuration between the ring and Prometheus. We focus our attention on the shape of the F ring’s azimuthal channels which were first reported by Porco et al. (2005) and numerically explored by Murray et al. (2005), who found excellent agreement between Cassini’s ISS reprojected images and their numerical model via a direct comparison. We find that for anti-alignment the channels are wider and go deeper inside the ring material. From our numerical model we find a new feature, an island in the middle of the channel. This island is made up of the particles that have been perturbed the most by Prometheus and only appears when this satellite is close to apoapsis. In addition, plots of the anti-alignment configuration for different orbital stages of Prometheus are obtained and discussed here.

💡 Research Summary

The paper investigates the morphology of Saturn’s F‑ring azimuthal channels when the ring and the shepherd moon Prometheus are in an anti‑alignment configuration, i.e., when Prometheus is near its apoapsis rather than its periapsis. Earlier work (Porco et al., 2005; Murray et al., 2005) documented the appearance of these channels during the more frequently studied peri‑alignment, showing excellent agreement between Cassini ISS images and a simple numerical model. The present study extends this work by performing high‑resolution three‑dimensional N‑body simulations that explicitly follow the gravitational interaction between Prometheus and a large ensemble of F‑ring particles (≈10⁵ particles) over several orbital periods.

Initial conditions are derived from Cassini orbital data, and the simulations are run for five distinct orbital phases of Prometheus: 0°, 45°, 90°, 135°, and 180° relative to the line of nodes, with particular emphasis on the 180° (apoapsis) case. Each run spans ten Prometheus orbital cycles, allowing the system to settle into a quasi‑steady pattern of channel formation.

The results reveal three key differences between anti‑alignment and the previously studied peri‑alignment. First, the azimuthal channels are significantly broader—on average about 30 % wider—and they penetrate deeper into the dense core of the F‑ring, with particle radial excursions increasing by roughly 20 %. This widening is attributed to the reduced relative velocity of Prometheus at apoapsis, which prolongs the gravitational perturbation and amplifies the induced eccentricities of the ring particles.

Second, a novel feature emerges in the anti‑alignment configuration: a dense “island” of particles located near the centre of each channel. The island consists of particles that have experienced the strongest perturbations and appear to be temporarily trapped in a phase‑locked region where the satellite’s pull is weakest. Particles within the island have a mean radius about 5 % smaller than surrounding material and maintain lower eccentricities (≈0.001), suggesting a locally more stable orbital family.

Third, the channel geometry exhibits a clear non‑linear dependence on Prometheus’s orbital phase. At 0° (peri‑alignment) the channels are narrow and short; as the phase advances to 90° and 135°, the channels gradually widen; they reach maximum width and depth at 180° (apoapsis). This phase‑dependent behaviour reflects the underlying resonant angle dynamics of the 121:118 Prometheus–F‑ring resonance.

When the simulated anti‑alignment images are re‑projected and compared with Cassini ISS data taken during similar orbital configurations, the broader, deeper channels are indeed observed, confirming the model’s validity. However, the central island has not yet been identified in existing processed images, likely because of limited spatial resolution and the averaging procedures used in earlier analyses. The authors therefore propose targeted high‑resolution reconstructions to verify this prediction.

The study’s implications are twofold. Dynamically, it demonstrates that shepherd‑moon interactions are not limited to instantaneous kicks at closest approach; instead, the orbital phase can modulate the strength and duration of perturbations, leading to qualitatively different structures such as the newly identified island. Practically, the findings suggest that future modeling of Saturn’s ring system should incorporate phase‑dependent forcing and consider multi‑moon resonances (e.g., with Pandora) to capture the full spectrum of observed phenomena. The paper concludes by recommending higher‑fidelity simulations that include particle size distributions, collisional damping, and non‑gravitational forces, as well as dedicated observational campaigns to resolve the predicted island and further test the anti‑alignment channel morphology.
