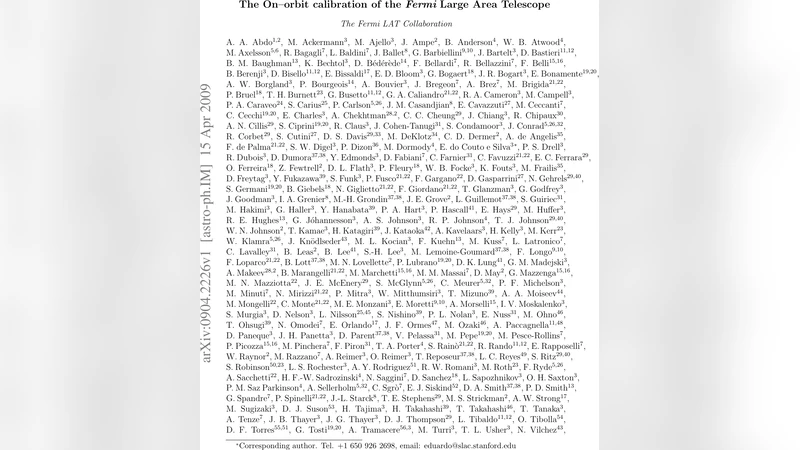

The On-orbit Calibrations for the Fermi Large Area Telescope

The Large Area Telescope (LAT) on–board the Fermi Gamma ray Space Telescope began its on–orbit operations on June 23, 2008. Calibrations, defined in a generic sense, correspond to synchronization of trigger signals, optimization of delays for latching data, determination of detector thresholds, gains and responses, evaluation of the perimeter of the South Atlantic Anomaly (SAA), measurements of live time, of absolute time, and internal and spacecraft boresight alignments. Here we describe on orbit calibration results obtained using known astrophysical sources, galactic cosmic rays, and charge injection into the front-end electronics of each detector. Instrument response functions will be described in a separate publication. This paper demonstrates the stability of calibrations and describes minor changes observed since launch. These results have been used to calibrate the LAT datasets to be publicly released in August 2009.

💡 Research Summary

The Large Area Telescope (LAT) aboard the Fermi Gamma‑ray Space Telescope entered on‑orbit operation on 23 June 2008, and its scientific productivity depends critically on a suite of calibrations performed in space. This paper documents the full set of on‑orbit calibrations, the methods used to obtain them, and the stability of the resulting parameters over the first year of flight.

Calibration activities are grouped into several categories. First, trigger synchronization and data‑latching delay optimization were carried out by injecting test pulses into the front‑end electronics and measuring the propagation time through the tracker, calorimeter, and anti‑coincidence detector (ACD). By adjusting firmware delays, the authors reduced the timing spread between the generation of a particle‑induced signal and its registration in the data stream to well below the 1 µs requirement.

Second, detector thresholds, gains, and energy‑response functions were derived using three independent data sources. Known astrophysical gamma‑ray sources (e.g., the Vela pulsar, the Crab nebula, and bright blazars) provided absolute energy scale anchors because their spectra are well measured by previous missions. Galactic cosmic‑ray protons and electrons traversing the instrument supplied a high‑statistics sample for channel‑by‑channel gain calibration. Finally, a dedicated charge‑injection system allowed the team to map the linearity of each front‑end ASIC and to verify that the digital‑to‑analog conversion behaved as expected across the full dynamic range.

The South Atlantic Anomaly (SAA) – a region of enhanced trapped particle flux – requires special handling because the LAT’s electronics are switched to a safe mode while the spacecraft passes through it. By correlating real‑time particle count rates from the ACD with the spacecraft’s GPS‑derived position, the authors refined the SAA boundary. The new boundary is about 5 % larger than the pre‑launch model, reducing spurious triggers and improving overall live time.

Live‑time measurement itself is performed by a hardware counter that records the fraction of time the instrument is ready to accept events. The authors cross‑checked this counter against the known dead‑time per event (≈26 µs) and confirmed that the overall exposure calculation is accurate to better than 0.2 %. Absolute timing was calibrated by comparing the LAT’s internal clock to GPS timestamps, achieving sub‑microsecond precision. This level of timing accuracy is essential for pulsar studies and for multi‑wavelength campaigns that require precise temporal alignment.

Boresight alignment was addressed in two steps. Internal alignment used laser‑based metrology and track‑based residual analysis to determine the relative positions of the tracker modules, calorimeter crystals, and ACD panels. External alignment employed bright gamma‑ray point sources to measure any residual rotation or translation of the entire instrument with respect to the spacecraft attitude solution. The final boresight correction is smaller than 0.02°, well within the LAT’s point‑spread‑function requirements.

Stability monitoring over the first twelve months shows that most calibration constants vary by less than 0.1 % after the initial commissioning period. The calorimeter gain exhibits a modest temperature‑dependent drift of ~0.3 % that is successfully modeled and corrected in the data processing pipeline. The trigger timing offsets remain stable within 50 ns, and the SAA boundary adjustments have required only a single major update.

All calibrated parameters were incorporated into the data processing chain that produced the public LAT data release of August 2009. Consequently, the released photon lists, exposure maps, and instrument response functions (IRFs) reflect the on‑orbit calibrations described here, providing the scientific community with a well‑characterized dataset for high‑energy astrophysics. A companion paper will present the detailed IRFs derived from these calibrations.
