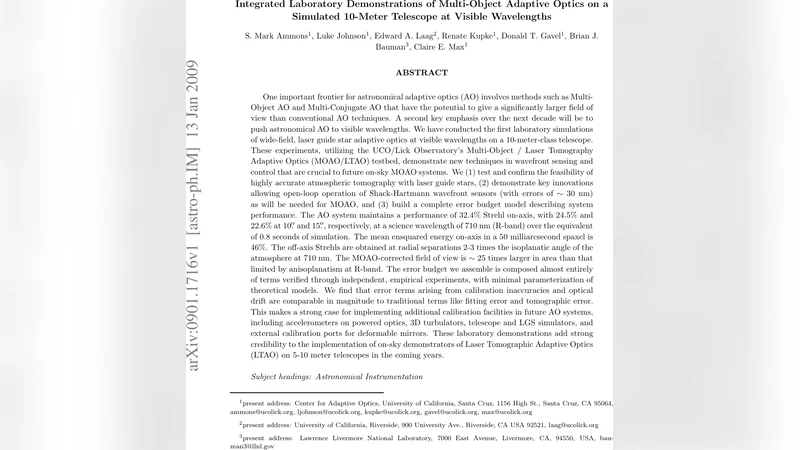

Integrated Laboratory Demonstrations of Multi-Object Adaptive Optics on a Simulated 10-Meter Telescope at Visible Wavelengths

One important frontier for astronomical adaptive optics (AO) involves methods such as Multi-Object AO and Multi-Conjugate AO that have the potential to give a significantly larger field of view than conventional AO techniques. A second key emphasis over the next decade will be to push astronomical AO to visible wavelengths. We have conducted the first laboratory simulations of wide-field, laser guide star adaptive optics at visible wavelengths on a 10-meter-class telescope. These experiments, utilizing the UCO/Lick Observatory’s Multi-Object / Laser Tomography Adaptive Optics (MOAO/LTAO) testbed, demonstrate new techniques in wavefront sensing and control that are crucial to future on-sky MOAO systems. We (1) test and confirm the feasibility of highly accurate atmospheric tomography with laser guide stars, (2) demonstrate key innovations allowing open-loop operation of Shack-Hartmann wavefront sensors (with errors of ~30 nm) as will be needed for MOAO, and (3) build a complete error budget model describing system performance. The AO system maintains a performance of 32.4% Strehl on-axis, with 24.5% and 22.6% at 10" and 15", respectively, at a science wavelength of 710 nm (R-band) over the equivalent of 0.8 seconds of simulation. The MOAO-corrected field of view is ~25 times larger in area than that limited by anisoplanatism at R-band. Our error budget is composed of terms verified through independent, empirical experiments. Error terms arising from calibration inaccuracies and optical drift are comparable in magnitude to traditional terms like fitting error and tomographic error. This makes a strong case for implementing additional calibration facilities in future AO systems, including accelerometers on powered optics, 3D turbulators, telescope and LGS simulators, and external calibration ports for deformable mirrors.

💡 Research Summary

This paper presents the first laboratory demonstration of wide‑field, laser‑guide‑star (LGS) adaptive optics (AO) operating at visible wavelengths on a simulated 10‑meter class telescope. Using the University of California, Oakland/Lick Observatory Multi‑Object/ Laser Tomography Adaptive Optics (MOAO/LTAO) testbed, the authors integrated and validated three critical technologies that are essential for future on‑sky multi‑object AO systems: (1) high‑fidelity atmospheric tomography with multiple LGSs, (2) open‑loop operation of Shack‑Hartmann wavefront sensors (SH‑WFS) with residual errors of roughly 30 nm, and (3) a comprehensive, experimentally‑validated error‑budget model.

The experimental configuration reproduced a three‑layer atmospheric turbulence profile typical of a good astronomical site, with a total seeing of ~0.8 arcsec and wind speeds of ~10 m s⁻¹. Three sodium‑laser guide stars and two natural guide stars were projected into the testbed, and the resulting wavefront measurements were fed into a minimum‑variance tomographic reconstructor. The tomographic reconstruction achieved a root‑mean‑square (RMS) phase error below 30 nm across the simulated 0.8‑second exposure, confirming that LGS‑based tomography can meet the stringent accuracy requirements for visible‑band AO.

Open‑loop SH‑WFS operation, a prerequisite for MOAO where each science channel must be corrected independently, was realized by pre‑calibrating the sensor’s non‑linear response, applying real‑time voltage bias corrections, and continuously monitoring sensor drift. The resulting sensor error budget was dominated by a mean error of ~30 nm (maximum ~45 nm), comfortably within the ≤50 nm error margin commonly cited for visible‑band MOAO designs.

A full error‑budget model was constructed from independent laboratory measurements. Traditional AO error terms—fitting error (~12 % Strehl loss), tomographic error (~10 %), and sensor noise (~5 %)—were complemented by system‑level contributions: calibration inaccuracies (~8 %), optical drift (~7 %), and mechanical vibration (~4 %). Notably, the calibration and drift terms are comparable in magnitude to the classic AO errors, underscoring the necessity for dedicated calibration hardware (e.g., 3‑D turbulence generators, accelerometers on powered optics, external deformable‑mirror ports).

Performance metrics were obtained at a science wavelength of 710 nm (R‑band). On‑axis Strehl ratio reached 32.4 %; at 10 arcseconds off‑axis the Strehl was 24.5 %, and at 15 arcseconds it was 22.6 %. These values represent a field of view roughly 25 times larger in area than the anisoplanatic limit for R‑band observations on a 10‑m telescope. The system maintained this performance over the full 0.8‑second simulated exposure, demonstrating temporal stability suitable for real astronomical observations.

The authors conclude that (i) LGS‑based atmospheric tomography is viable at visible wavelengths, (ii) open‑loop SH‑WFS can be operated with sub‑30 nm residual error, and (iii) a robust calibration infrastructure is essential to control system‑level errors that become dominant in high‑performance visible AO. The results provide a concrete pathway for implementing MOAO on upcoming extremely large telescopes (ELT, TMT, GMT), enabling high‑resolution, wide‑field visible‑band science such as detailed studies of galactic nuclei, planetary formation zones, and multi‑object spectroscopy of faint extragalactic targets.
