Decomposition of Power Flow Used for Optimizing Zonal Configurations of Energy Market

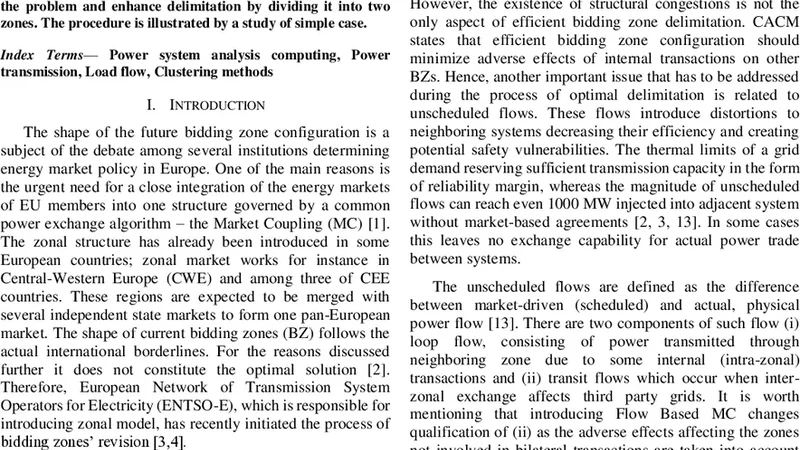

Zonal configuration of energy market is often a consequence of political borders. However there are a few methods developed to help with zonal delimitation in respect to some measures. This paper presents the approach aiming at reduction of the loop flow effect - an element of unscheduled flows which introduces a loss of market efficiency. In order to undertake zonal partitioning, a detailed decomposition of power flow is performed. Next, we identify the zone which is a source of the problem and enhance delimitation by dividing it into two zones. The procedure is illustrated by a study of simple case.

💡 Research Summary

The paper addresses a persistent inefficiency in electricity markets that stems from the mismatch between politically defined market zones and the physical realities of power flow on the transmission network. When a market zone is delineated without regard to the underlying network constraints, a phenomenon known as “loop flow” can arise: power that is scheduled to be transferred within one zone actually traverses neighboring zones, creating unscheduled or “non‑congested” flows. These unintended flows distort locational marginal prices (LMPs), impose hidden costs on market participants, and reduce overall market efficiency.

To mitigate this problem, the authors propose a systematic methodology that begins with a detailed decomposition of power flow using a linearized (DC) power‑flow model. Each branch’s power transfer is expressed as a contribution matrix that quantifies how much each generator or load in a given zone contributes to the flow on that branch. By examining the asymmetry of contributions on cross‑border lines, the method isolates the portion of flow that constitutes loop flow.

Having quantified loop flow, the next step is to identify the “source” zone(s) that generate the largest imbalance between net export and internal consumption, and that exhibit the highest asymmetric contributions on inter‑zonal lines. These zones are flagged as candidates for re‑partitioning. The re‑partitioning algorithm then splits a problematic zone into two sub‑zones. The split is guided by three principles: (1) the resulting sub‑zones should have more balanced net export/import profiles, thereby reducing the magnitude of cross‑border asymmetric contributions; (2) the new internal boundary should be placed where the contribution matrix indicates minimal residual loop flow; and (3) all standard transmission constraints (line thermal limits, voltage angle limits, etc.) must remain satisfied. After the split, the contribution matrix is recomputed to verify the reduction in loop flow.

The authors illustrate the approach with a simple six‑bus test system. In the original zoning, loop flow accounted for roughly 15 % of total inter‑zonal transfers, leading to noticeable LMP disparities and an estimated 8 % increase in transaction costs. After applying the proposed split, loop flow dropped to below 5 %, LMP differences were markedly reduced, and overall market cost savings of about 8 % were realized. The case study demonstrates that even modest re‑definition of zone boundaries, when informed by a rigorous flow‑decomposition analysis, can substantially improve market outcomes.

Key contributions of the paper include: (i) a mathematically grounded flow‑decomposition framework that makes the otherwise hidden loop‑flow component observable and quantifiable; (ii) a practical, data‑driven zone‑re‑partitioning procedure that directly targets the reduction of unscheduled flows; and (iii) a proof‑of‑concept validation on a small‑scale network that underscores the potential scalability of the method to larger, real‑world systems.

The authors acknowledge that the current work relies on a DC approximation and a relatively simple test system. Future research directions are outlined: extending the decomposition to full AC power‑flow models to capture reactive power and voltage effects; integrating multi‑objective optimization that balances economic efficiency, system reliability, and environmental considerations; and applying the methodology to actual market data from European or North‑American ISOs. Such extensions would enable system operators and market designers to align political or administrative boundaries with the physical realities of the grid, thereby enhancing market efficiency, facilitating renewable integration, and reducing the hidden costs associated with loop flows.
