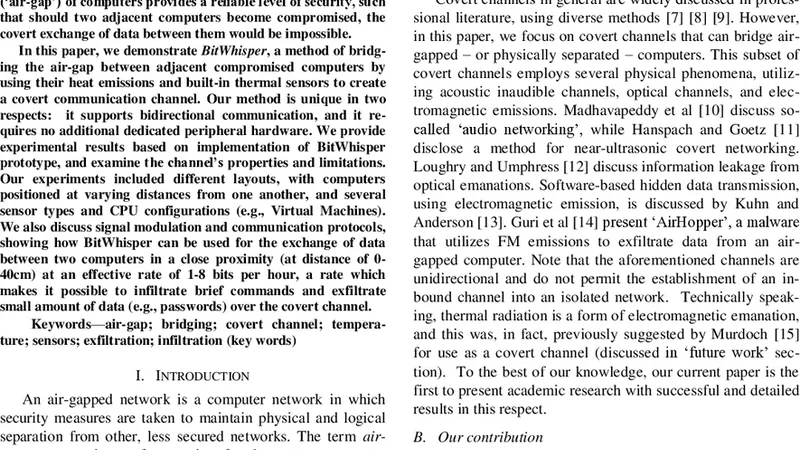

BitWhisper: Covert Signaling Channel between Air-Gapped Computers using Thermal Manipulations

It has been assumed that the physical separation (air-gap) of computers provides a reliable level of security, such that should two adjacent computers become compromised, the covert exchange of data between them would be impossible. In this paper, we demonstrate BitWhisper, a method of bridging the air-gap between adjacent compromised computers by using their heat emissions and built-in thermal sensors to create a covert communication channel. Our method is unique in two respects: it supports bidirectional communication, and it requires no additional dedicated peripheral hardware. We provide experimental results based on implementation of BitWhisper prototype, and examine the channel properties and limitations. Our experiments included different layouts, with computers positioned at varying distances from one another, and several sensor types and CPU configurations (e.g., Virtual Machines). We also discuss signal modulation and communication protocols, showing how BitWhisper can be used for the exchange of data between two computers in a close proximity (at distance of 0-40cm) at an effective rate of 1-8 bits per hour, a rate which makes it possible to infiltrate brief commands and exfiltrate small amount of data (e.g., passwords) over the covert channel.

💡 Research Summary

The paper introduces BitWhisper, a covert communication channel that bridges air‑gapped computers by exploiting their heat emissions and built‑in thermal sensors. Unlike prior covert‑channel research that relies on electromagnetic, acoustic, or power‑line signals and often requires dedicated hardware, BitWhisper needs only software control of the CPU load and access to existing temperature sensors (CPU, GPU, motherboard, etc.). The transmitter deliberately raises its CPU utilization to generate a measurable temperature rise (typically 0.1–0.5 °C). The receiver samples the ambient temperature at low frequency (sub‑1 Hz) and decodes predefined temperature‑change patterns into binary bits.

Two modulation schemes are explored: a simple binary (high‑temperature = ‘1’, baseline = ‘0’) and a four‑level scheme that maps four distinct temperature increments to two bits per symbol. The four‑level approach can theoretically double throughput but is more susceptible to environmental noise such as fan speed variations, ambient temperature drift, and case material.

To achieve bidirectional communication, the authors design a time‑slot protocol. The overall session is divided into equal‑duration slots (e.g., two minutes each); even slots are used for A→B transmission, odd slots for B→A. During a slot the transmitting machine maintains a constant load, then returns to idle before the next slot to avoid overlapping temperature signatures. Simple error‑correction (Hamming code) and retransmission mechanisms raise the effective success rate above 90 %.

Experimental evaluation covers a range of physical layouts: computers placed side‑by‑side (0 cm), at 10 cm, 20 cm, 30 cm, and 40 cm separations; cases made of plastic or aluminum; fan speeds fixed or dynamically controlled. Results show that distance and thermal insulation dominate channel performance. In the best configuration (plastic case, 10 cm separation) the channel achieves up to 8 bits per hour, while in the worst case (aluminum case, 40 cm) it still manages about 1 bit per hour. The authors also demonstrate that the channel works inside virtual machines, because CPU load inside a VM still translates into real hardware power consumption and heat.

From a security perspective, BitWhisper proves that physical isolation alone does not guarantee confidentiality. Even a low‑bandwidth channel can exfiltrate high‑value data such as passwords, cryptographic keys, or short command strings. Detection is feasible by continuously monitoring temperature‑sensor logs for anomalous trends, or by flagging sustained, unexplained CPU load spikes. Countermeasures include inserting thermal insulation material between adjacent machines, applying heat‑dissipating case designs, restricting access to temperature‑sensor interfaces, and deploying host‑based intrusion‑detection rules that alert on abnormal thermal patterns.

In conclusion, BitWhisper demonstrates a novel, hardware‑free, bidirectional covert channel that leverages thermal dynamics to communicate across an air gap. Although limited to 1–8 bits per hour and sensitive to environmental factors, the channel is sufficient for transmitting critical short messages. The work highlights the need for defenders to consider unconventional physical side‑channels and to incorporate thermal‑monitoring and load‑behavior analytics into comprehensive air‑gap security strategies.
