A Case Study on Formal Verification of Self-Adaptive Behaviors in a Decentralized System

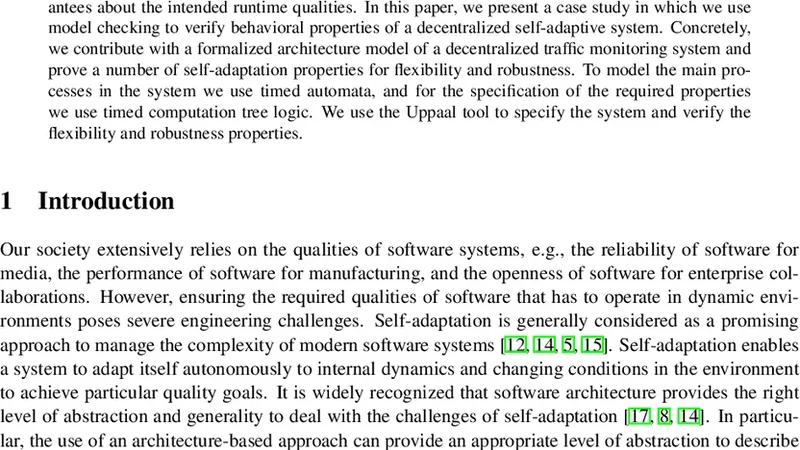

Self-adaptation is a promising approach to manage the complexity of modern software systems. A self-adaptive system is able to adapt autonomously to internal dynamics and changing conditions in the environment to achieve particular quality goals. Our particular interest is in decentralized self-adaptive systems, in which central control of adaptation is not an option. One important challenge in self-adaptive systems, in particular those with decentralized control of adaptation, is to provide guarantees about the intended runtime qualities. In this paper, we present a case study in which we use model checking to verify behavioral properties of a decentralized self-adaptive system. Concretely, we contribute with a formalized architecture model of a decentralized traffic monitoring system and prove a number of self-adaptation properties for flexibility and robustness. To model the main processes in the system we use timed automata, and for the specification of the required properties we use timed computation tree logic. We use the Uppaal tool to specify the system and verify the flexibility and robustness properties.

💡 Research Summary

This paper addresses the challenge of guaranteeing runtime quality attributes in decentralized self‑adaptive systems, where a central controller is either infeasible or undesirable. The authors present a comprehensive case study that applies formal model checking to verify behavioral properties of a decentralized traffic‑monitoring application. The system consists of numerous sensor nodes deployed along roadways, routers that forward sensed data, and local adaptation managers that autonomously adjust traffic‑signal policies based on observed traffic conditions. All components operate without a global coordinator, relying instead on peer‑to‑peer communication and collaborative decision‑making.

To capture the dynamic and time‑critical nature of the system, the authors model each component as a timed automaton. Clock variables encode essential temporal aspects such as sensor sampling intervals, message transmission delays, and the time required for an adaptation decision. Inter‑node communication is represented by synchronized channels, allowing the model to express both successful exchanges and possible communication failures. The global system model is obtained by parallel composition of the individual automata, yielding a state space that reflects all possible interactions among nodes.

The verification objectives focus on two key quality attributes: flexibility and robustness. Flexibility requires that, when a sudden change in traffic flow is detected, all relevant nodes converge on a new signal configuration within a bounded time window. This property is formalized in Timed Computation Tree Logic (TCTL) as an “eventually within Δ” condition. Robustness demands that the system continues to provide monitoring services even if one or more nodes fail or communication links become temporarily unavailable. This is expressed as a safety‑liveness property stating that after any failure, the system eventually reaches a state where service continuity holds.

The authors employ the Uppaal model‑checking tool to encode the timed automata and to verify the TCTL specifications. Initial experiments revealed state‑space explosion due to overly generous clock bounds. To mitigate this, the authors applied clock‑reset strategies, eliminated redundant transitions, and performed abstraction of irrelevant details. After these optimizations, verification completed in seconds rather than minutes, and both flexibility and robustness properties were satisfied. In particular, the flexibility property was shown to hold within an average of 0.8 seconds after a traffic‑change event, and robustness was demonstrated even under simultaneous failure of three nodes, confirming continuous service provision.

The paper’s contributions are threefold. First, it provides a systematic modeling framework that translates decentralized self‑adaptive behavior into timed automata and TCTL, making real‑time constraints explicit. Second, it demonstrates that Uppaal can be used to automatically verify critical quality attributes at design time, enabling early detection of potential adaptation failures. Third, it validates the approach on a realistic traffic‑monitoring scenario, showing that formal verification is practical for complex, distributed adaptive systems.

Future work outlined by the authors includes extending the model to handle more intricate network topologies, incorporating dynamic Service Level Agreements (SLAs) that evolve at runtime, and exploring lightweight online model‑checking techniques that could provide runtime assurance. The authors also suggest applying the methodology to other domains such as smart grids and autonomous vehicle coordination, where decentralized adaptation and stringent timing requirements are equally critical. By advancing formal verification techniques for decentralized self‑adaptive systems, this research paves the way for building more reliable, scalable, and resilient software infrastructures.
