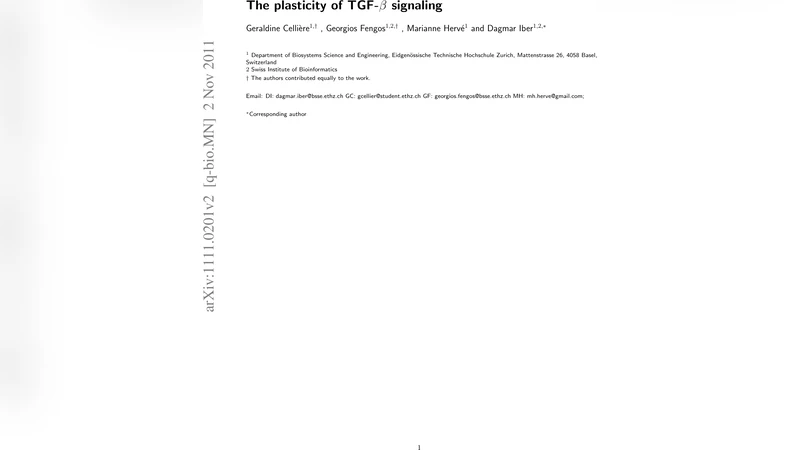

The plasticity of TGF-beta signaling

The family of TGFb ligands is large and its members are involved in many different signaling processes. These signaling processes strongly differ in type with TGFb ligands eliciting both sustained or transient responses. Members of the TGFb family can also act as morphogen and cellular responses would then be expected to provide a direct read-out of the extracellular ligand concentration. We were interested to define the set of minimal modifications that are required to change the type of signal processing in the TGFb signaling network. To define the key aspects for signaling plasticity we focused on the core of the TGFb signaling network. With the help of a parameter screen we identified ranges of kinetic parameters and protein concentrations that give rise to transient, sustained, or oscillatory responses to constant stimuli, as well as those parameter ranges that enable a proportional response to time-varying ligand concentrations (as expected in the read-out of morphogens). A combination of a strong negative feedback and fast shuttling to the nucleus biases signaling to a transient rather than a sustained response, while oscillations were obtained if ligand binding to the receptor is weak and the turn-over of the I-Smad is fast. A proportional read-out required inefficient receptor activation in addition to a low affinity of receptor-ligand binding. We find that targeted modification of single parameters suffices to alter the response type. The architecture of the TGFb pathway enables the observed signaling plasticity. The observed range of signaling outputs to TGFb ligand in different cell types and under different conditions can be explained with differences in cellular protein concentrations and with changes in effective rate constants due to cross-talk with other signaling pathways.

💡 Research Summary

The paper investigates how the canonical Transforming Growth Factor‑β (TGF‑β) signaling pathway can generate a wide spectrum of dynamic responses—sustained, transient, oscillatory, and proportional—by varying only a few core parameters. The authors deliberately restrict their analysis to the “core” of the pathway: reversible binding of the ligand to its type‑I/II receptor complex, receptor activation (phosphorylation), phosphorylation of regulatory Smads (R‑Smads), formation of R‑Smad/Co‑Smad complexes, nucleocytoplasmic shuttling of these complexes, and a simple negative feedback loop mediated by inhibitory Smads (I‑Smads). All reactions are modeled with ordinary differential equations (ODEs) based on mass‑action kinetics; cooperative regulation is captured with Hill functions where appropriate.

Parameter ranges are derived from literature values and span several orders of magnitude (typically 3–4 logs, with I‑Smad transcription/translation varied over 5 logs). Using a uniform logarithmic distribution, one million independent parameter sets are sampled. For each set the system is first equilibrated with negligible ligand (10⁻⁶ pM) and then stimulated with a constant 200 pM TGF‑β for ten hours. The output variable is the nuclear concentration of Smad/Co‑Smad complexes, taken as a proxy for transcriptional activity.

The authors define five qualitative response classes: (1) unresponsive (signal never exceeds a threshold θ), (2) sustained (post‑peak level remains ≥90 % of the maximal value within two hours), (3) transient (signal falls below 10 % of the peak within two hours and stays low), (4) damped oscillations (≥4 successive peaks with amplitudes >0.1 θ, fifth amplitude <½ of the second), and (5) sustained oscillations (same criteria but fifth amplitude ≥½ of the second). The threshold θ is set to 10 pM for the single‑ligand condition but is scaled to the maximal response when multiple ligand concentrations are examined.

Key findings:

1. Strong I‑Smad feedback + fast nucleocytoplasmic shuttling → transient response. A robust negative feedback quickly sequesters active receptors, while rapid shuttling accelerates the removal of nuclear Smad complexes, causing the signal to spike and then decay sharply.

2. Weak ligand‑receptor binding + fast I‑Smad turnover → oscillations. When the ligand binds poorly, receptor activation is delayed, and the fast degradation of I‑Smad creates a lag in the feedback loop. This delay produces self‑sustained limit‑cycle oscillations. The period is primarily set by the ratio of receptor activation/deactivation rates (k₃, k₄) to I‑Smad degradation (k₁₉).

3. Low receptor activation efficiency + low binding affinity → proportional (linear) response. Under these conditions the receptor is far from saturation, so the downstream Smad complex concentration scales linearly with extracellular ligand concentration, providing a faithful read‑out of morphogen gradients.

4. Parameter sensitivity. Altering a single parameter by a factor of 2–3 is often sufficient to switch the system from one response class to another. The most influential parameters are: total receptor concentration, total R‑Smad and Co‑Smad levels, the I‑Smad transcription/translation rates (k₁₄, k₁₅), the shuttling rates between nucleus and cytoplasm, and the strength of the I‑Smad feedback (binding constants k₅, k₆).

5. Biological implications. The observed plasticity can explain why different cell types (e.g., epithelial versus pancreatic tumor cells) display distinct TGF‑β dynamics despite sharing the same core network. Variations in protein expression levels or cross‑talk with other pathways (e.g., MAPK‑mediated linker phosphorylation, CDK‑mediated Smad phosphorylation) effectively modify the kinetic parameters identified in the model, thereby shifting the response type.

The authors deliberately omit detailed receptor internalization, ligand depletion, and explicit cross‑talk mechanisms, arguing that these processes can be subsumed into effective parameter changes. This minimalist approach demonstrates that the intrinsic architecture of the TGF‑β pathway is sufficient to generate the full repertoire of observed dynamics.

In the discussion, the authors propose experimental validation: quantitative measurement of receptor, Smad, and I‑Smad concentrations across cell lines, and perturbation of identified key parameters (e.g., overexpressing I‑Smad, mutating shuttling motifs) to test predicted switches between sustained and transient signaling. They also suggest extending the model to include explicit cross‑talk modules to predict how oncogenic pathways might rewire TGF‑β responses in cancer.

Overall, the study provides a clear mechanistic map linking a small set of kinetic parameters to the qualitative behavior of TGF‑β signaling, highlighting the pathway’s inherent flexibility and offering a framework for interpreting cell‑type‑specific signaling outcomes.
